7. tIghtEN thE COvER wIth
twISt tItE
™
A. Wrap the cord with plastic ball and "S" hook at the
corners of the cover around the corner leg poles.
Insert "S" hook into the hole of the corner leg poles.
Twist each leg pole until the cover becomes tight.
Twist the leg poles equally to ensure the cover stays
aligned during tightening.
B. Secure the leg poles with the Twist-Tite™ Set.
(10056) Wrap the bungee around the side frame
connection (10045) and insert "S" hook into the leg
pole hole that lines up with the corner side frame
connector hole.
Grommet Panels for Bungees
10042
10047
Grommet
Panel
10066
10244
10244
10149
10043
Twist-Tite™ Secure Leg Pole
10043
10244
10149
10045
10056
Twist-Tite ™ Tighten Cover
10043
10149
10045

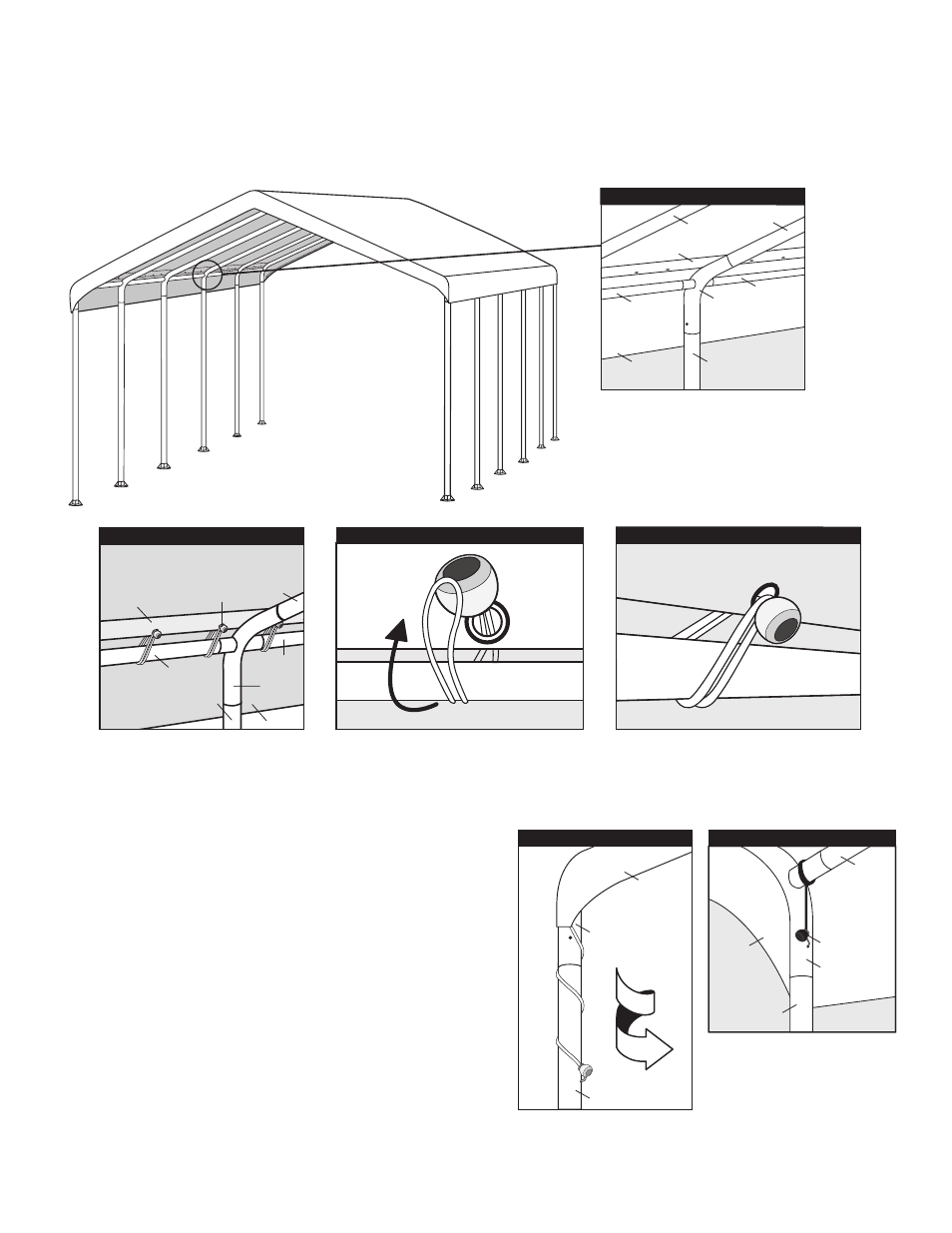

6. PlACE COvER AND SECURE tO CANOPY FRAME
A. Place cover over assembled roof frame with grommet panels facing down, aligned with cross rails.
B. Make sure the cover is properly aligned on the frame, secure the four corners of the cover with bungees
(10066) to the frame first . Attach remaining bungees.
Re-adjust bungees position along cross pole as needed to ensure a tight and even fit of the cover to the frame.
Secure Bungee Around Plastic Ball
Grommet Panels for Bungees
10244
10042
Grommet Panel
10042
10047
10244
10149 10043
Insert Bungee Cord Through Grommet Hole
