User’s Guide
30

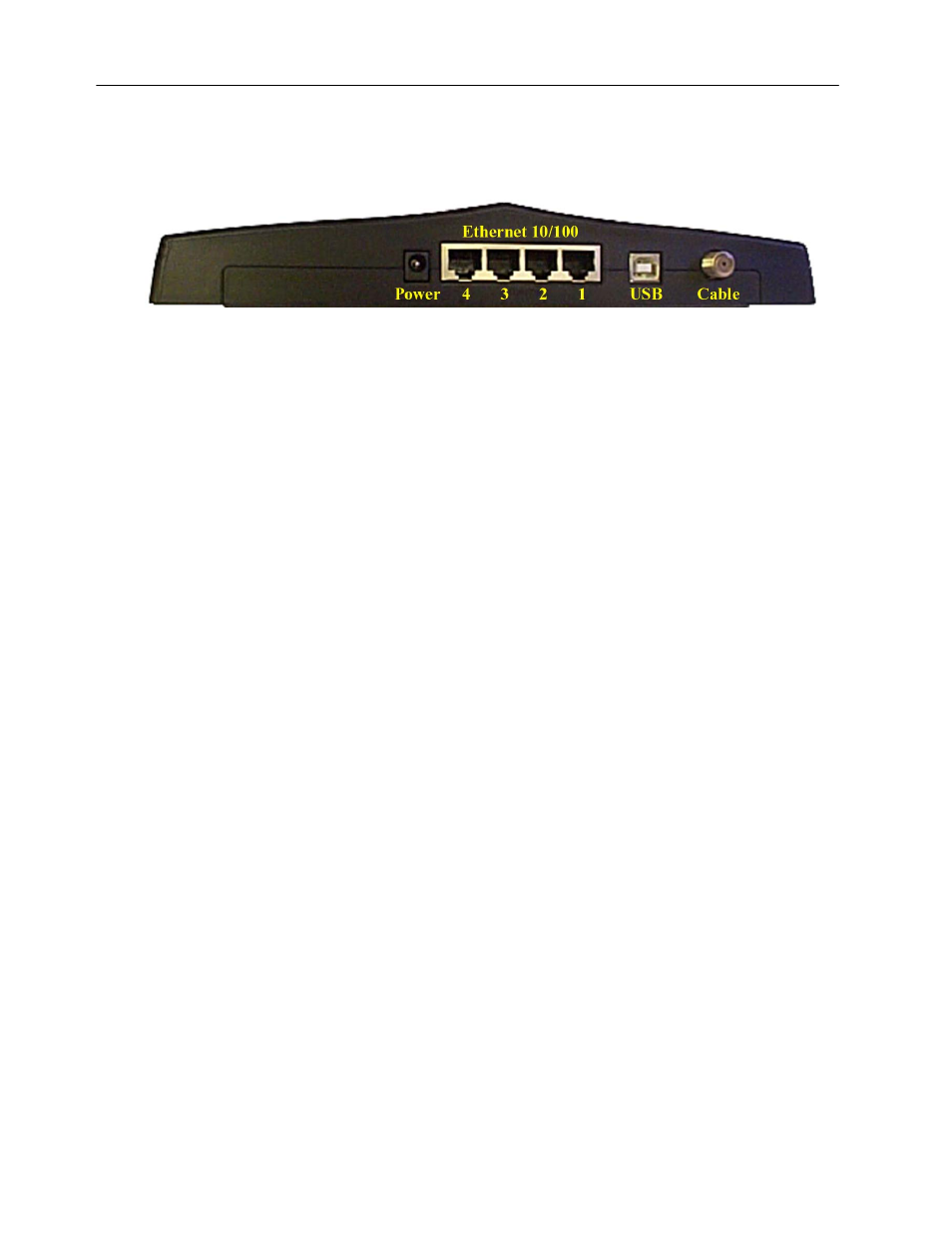

Connectors on the Back of the Modem
This list of connectors describes where to connect the cables and power adapter when installing the
cable modem.
1. Power: This is where you plug the included power adapter. Remember to use only the
power adapter that came with the cable modem.
2. Ethernet 10/100 Port 1, 2, 3, 4: This is where you plug the Ethernet cable. The other end
connects to the Ethernet port on the PC.
3. USB: This is where you plug the included USB cable. The other end connects to the USB
port on your PC.
4. Cable: This is where you connect the coaxial cable (not included) that leads to the cable
splitter (not included) or the cable wall outlet.
