Conectar costilla frente para costilla medio – ShelterLogic 70743 12 x 12 x 8 Shed-in-a-Box User Manual
Page 27
Página 27
05_70443_70743_F3

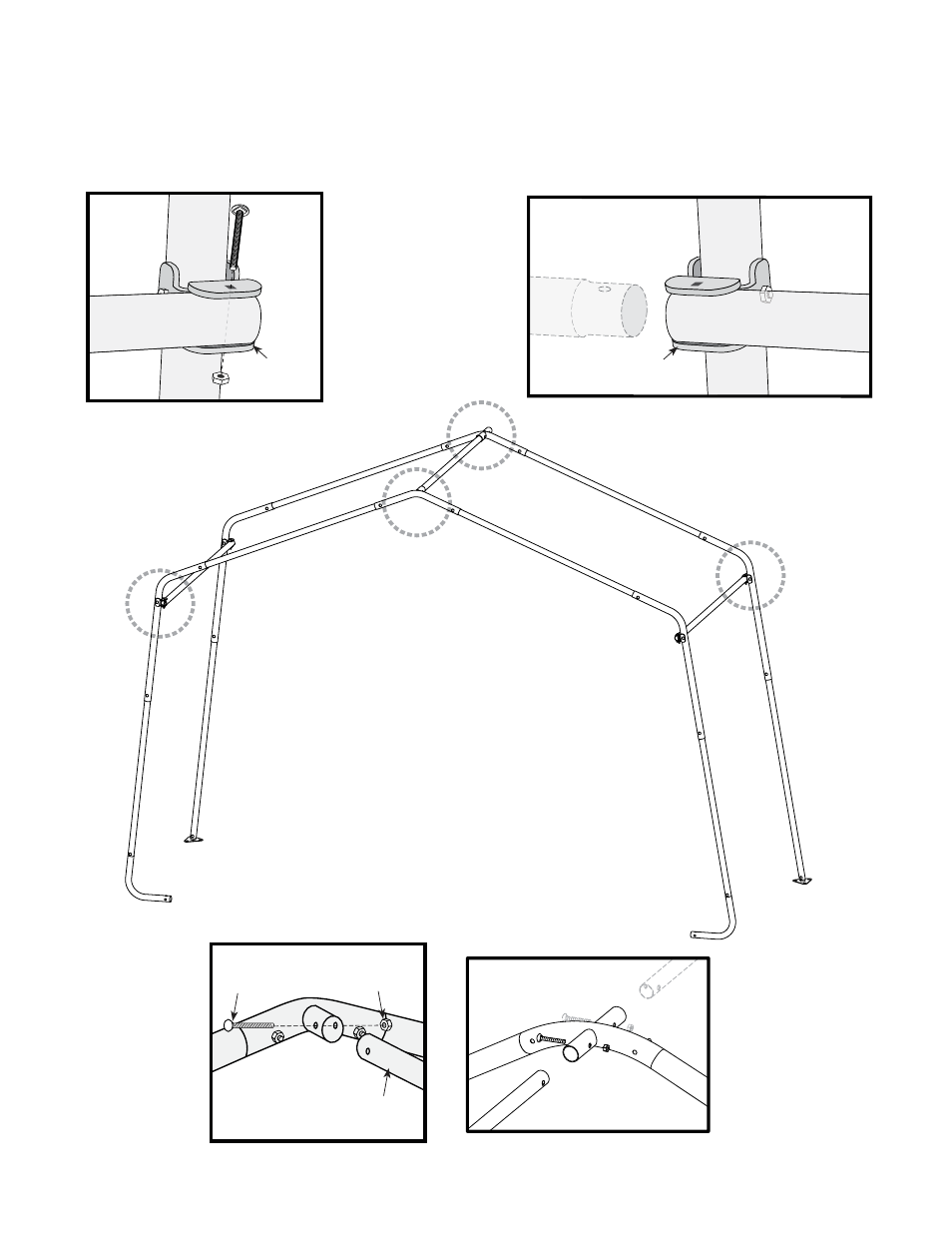

A. Conectar 2 Rieles Laterales Transversale (802130) con ShelterLock
®
3X
(800938) como se muestra.
B. Conecte Rieles Laterales Transversale en la costilla central con ShelterLock ® 3X, como se muestra. Dejar
abierto para la conexión costilla próxima.
C. Utilice Riel Superior Transversale (801258) para conectar las costillas en la parte superior.
c
D
D
A
A
B
B
800938
800938
802130
801258
801257
801256
801258
03032
01010
801258
801258
c
01010
01010
801209
801209
802129
802130
802130
01010
03032
802130
3. conectAr costillA Frente pArA costillA MeDio
03032
