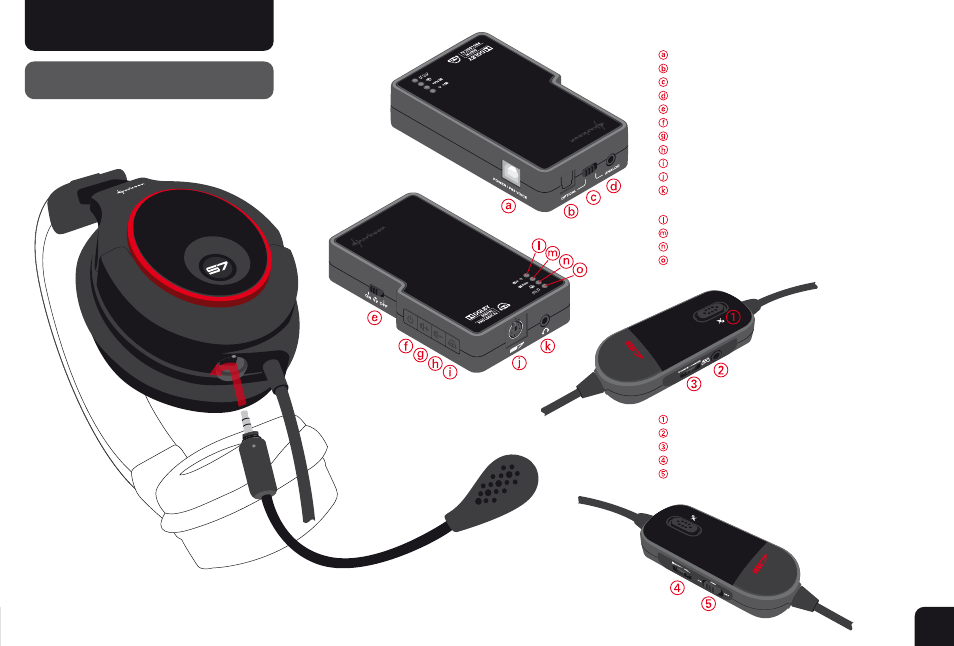

Basic information
Getting started
Microphone on / off and Microphone Voice Monitoring
Connection for Xbox ® 360 microphone
Microphone volume controller
Volume adjustment controller
Amplifier on/off switch
USB connector (for power and PS3 ™ /PC microphone)
Optical audio input (S/PDIF)
Switch between optical and analog input
Analog audio input
ON/OFF switch for 3D stereo function
SCU power on/off button
Volume +
Volume -
Dolby ® Headphone button
X-Tatic S7 headphone connector (G6)
Analog output for speakers or non S7 headset
(3.5 mm jack)
Power/Source LED
Dolby ® ProLogic IIx ® on/off LED
Dolby ® Headphone on/off LED
Gaming/Music mode LED
Locate and align the markings on both the headset and the microphone.
Plug the microphone into the microphone connector.
Turn the microphone to the front to lock it.
2
