9. Installation of an add-on card

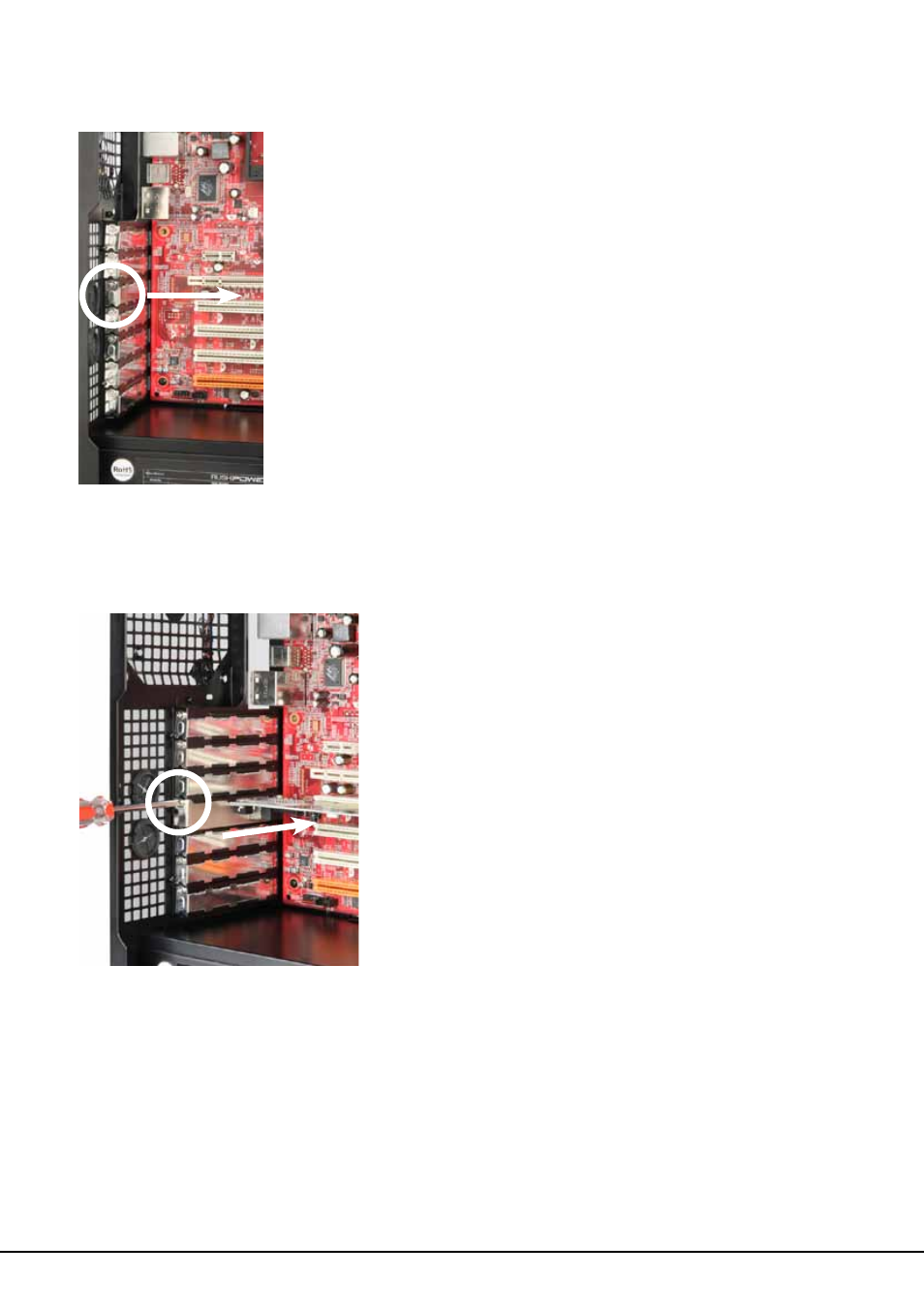

1. Remove the slot bezel’s fixation screw and take away the slot bezel (fig. 20).

fig. 20

2. Insert the add-on card into the mainboard’s respective slot and fix it to the case by
re-attaching the fixation screw (fig. 21).

fig. 21

10. The pre-installed fan

1. The pre-installed 120 mm front fan provides a 4-pin PSU connector and a 3-pin mainboard
plug.
2. Connect one of both plugs to either the respective PSU or (to control the fan speed via the
mainboard) the matching mainboard connector.
