VAYA ECONOMY
4. Mounting a mainboard
1. Remove the thumb screws on the case’s rear side and take the left side panel off the case.
Lay down the case sidewise on an even surface.

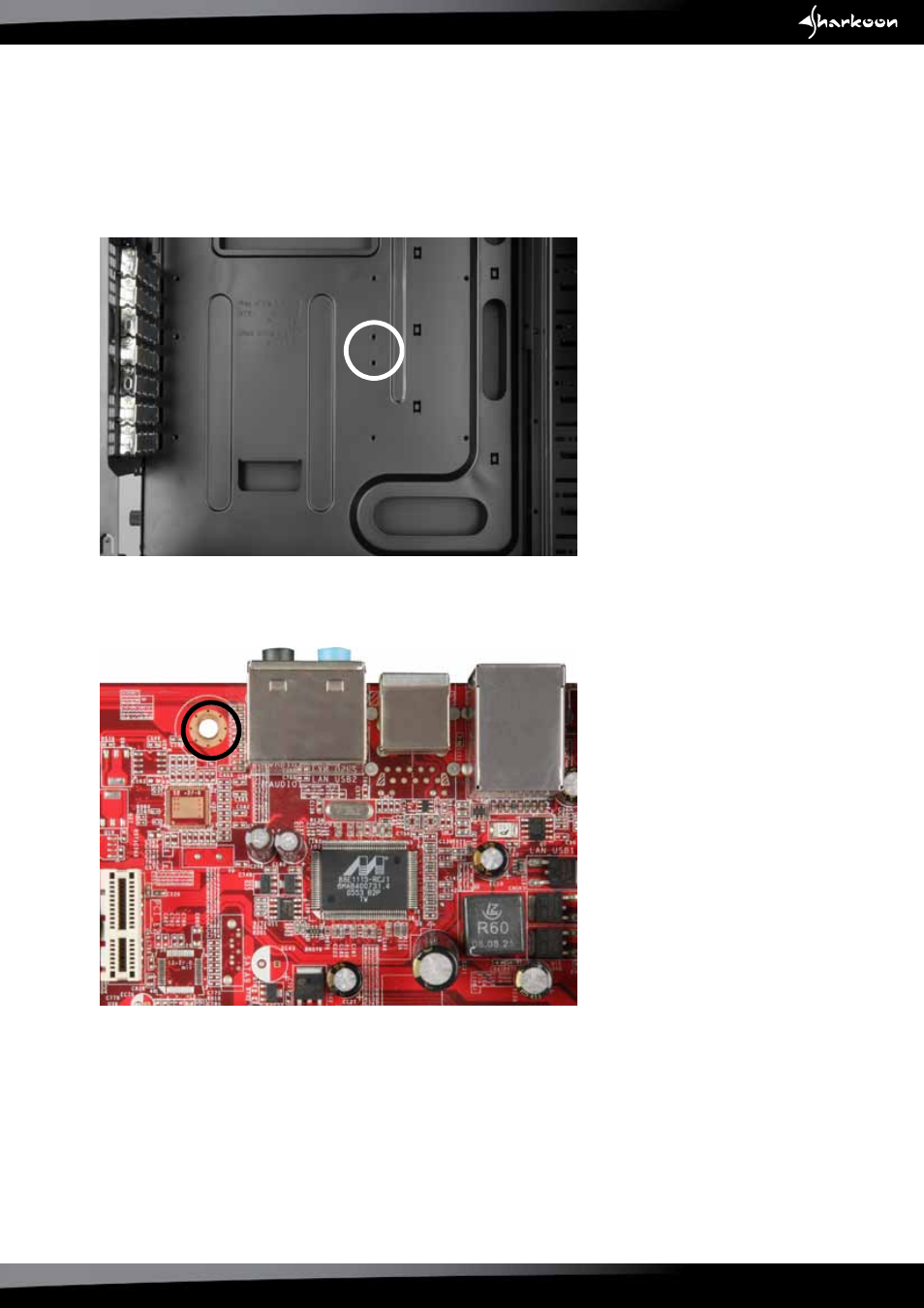

2. The mounting panel of the mainboard provides various drillings for stand-offs (fig. 1).
fig. 1
The mainboard contains special screw openings (fig. 2).
fig. 2
Place the mainboard onto the mounting panel. You have to screw a stand-off into every drilling of the
mounting panel you can see through the mainboard’s screw openings.
6

