Model Input Rating Output Rating Gallons Per Hour Recovery Height Width Depth W/ Depth W/O Approx.
No. Btu/hr Btu/hr Temperature Rise -°F Inches Inches Pump Pump Shipping
Inches Inches Weight (Lbs.)
40 100 140
VW/
VB-500 500,000 421,500 1,268 507 362 56 30 37.5 30 450
VW/
VB-750 750,000 633,750 1,901 761 543 62 30 37.5 30 575
VW/
VB-1000 1,000,000 845,000 2,535 1,014 724 71 30 37.5 30 750
Ac-U-Temp — A total hot water supply
system using VF Series Boilers
With Ac-U-Temp, A. O. Smith makes it as easy as possible
to install a complete packaged hot water supply system,
combining 88% efficient VF Series Boilers with A. O. Smith
storage tanks. A. O. Smith offers a wide range of available
boiler/storage tank combinations using the Ac-U-Temp
system. There are a number of standard boiler and tank
configurations with tanks up to 1,000 gallons, or we can
custom design and build an Ac-U-Temp system with tanks
up to 10,000 gallons to meet your specifications and
application requirements. Ac-U-Temp systems are shipped
fully assembled, pre-piped and pre-wired. All the installer
has to do is make the flue, gas, electrical and water
connections, so field errors are minimized.
Consult your A. O. Smith representative for more
information on the wide range of available boiler/storage
tank combinations using the Ac-U-Temp system.
For complete specifications on the VF Series, consult the
specification sheets at www.hotwater.com or contact your
local A. O. Smith sales representative.
ACGBR00307 ©2007 A. O. Smith Corporation A. O. Smith reserves the right to make product changes or improvements at any time without notice. Printed in U.S.A
500 Tennessee Waltz Parkway • Ashland City, TN 37015
www.hotwater.com

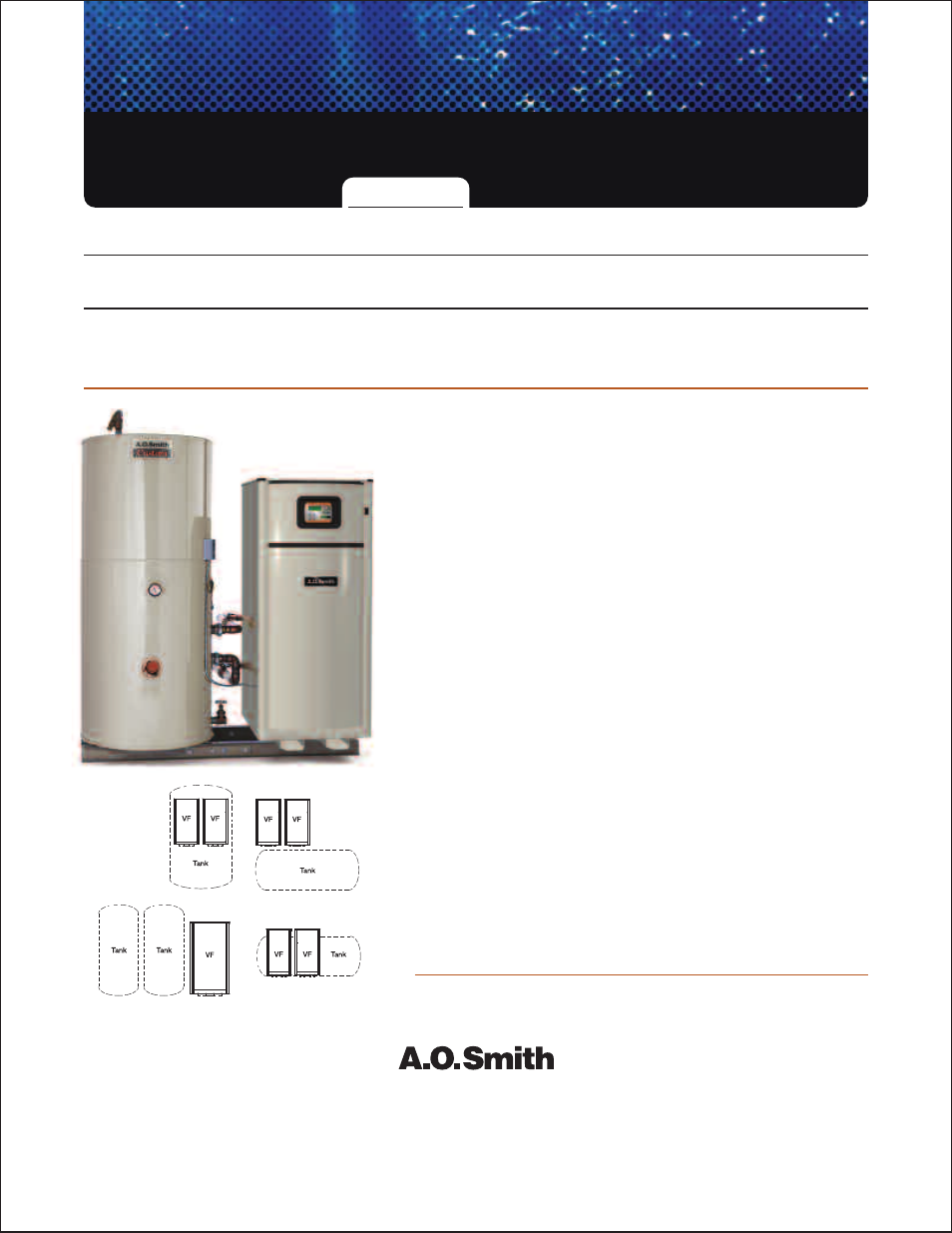

Examples of
