3) Detecting vertical laser level signals
• Place the unit in a horizontal position.
• Make sure the receiving window (on front of detector) is facing

the laser and is receiving the laser signal.

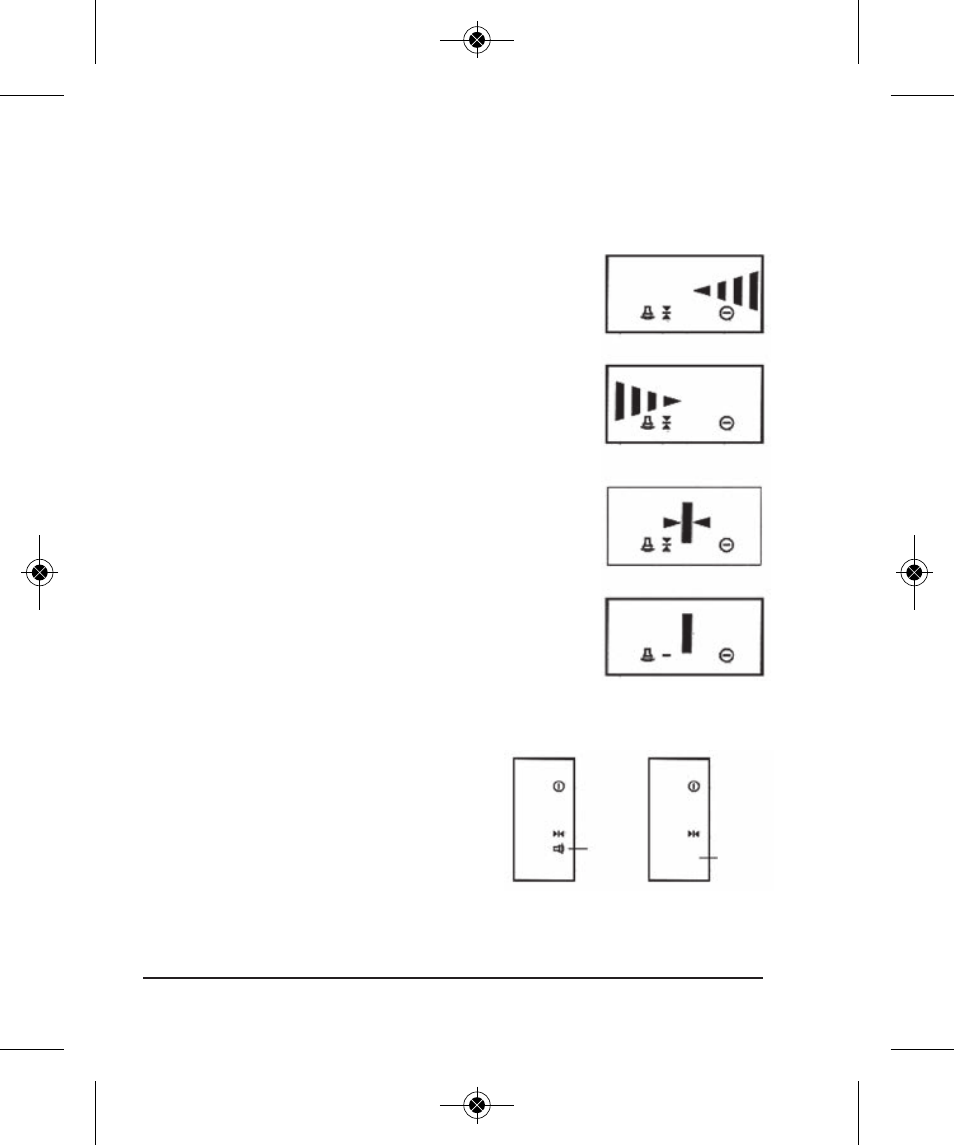

- If the LCD shows a “left” arrow and emits rapid

sounds, this indicates that the laser signal is
located to the right of the detector (Fig. 14).

- If the LCD shows a “right” arrow and emits

slow sounds, this indicates that the laser signal
is located to the left of the detector (Fig. 15).

- If the LCD show the “center” mark and emits a

continuous sound, this indicates that the laser
signal is located in the center position on the
detector.

(Fig. 16-1) LCD indicating center position
of coarse detection
(Fig. 16-2) LCD indicating center position of fine
detection

4) When you are finished using the detector, press

the power key to turn the unit off.

(c) Using the Sound Function

With the detector turned ON, press the
sound switch to alternate between
sound-on and sound-off.

Note: The sound indicator will also turn on and off in the
LCD screen (Fig. 17, 18).

Sound

Silence

Fig. 17 Fig. 18
