16 ©2011 Johnson Level & Tool - Rev.1

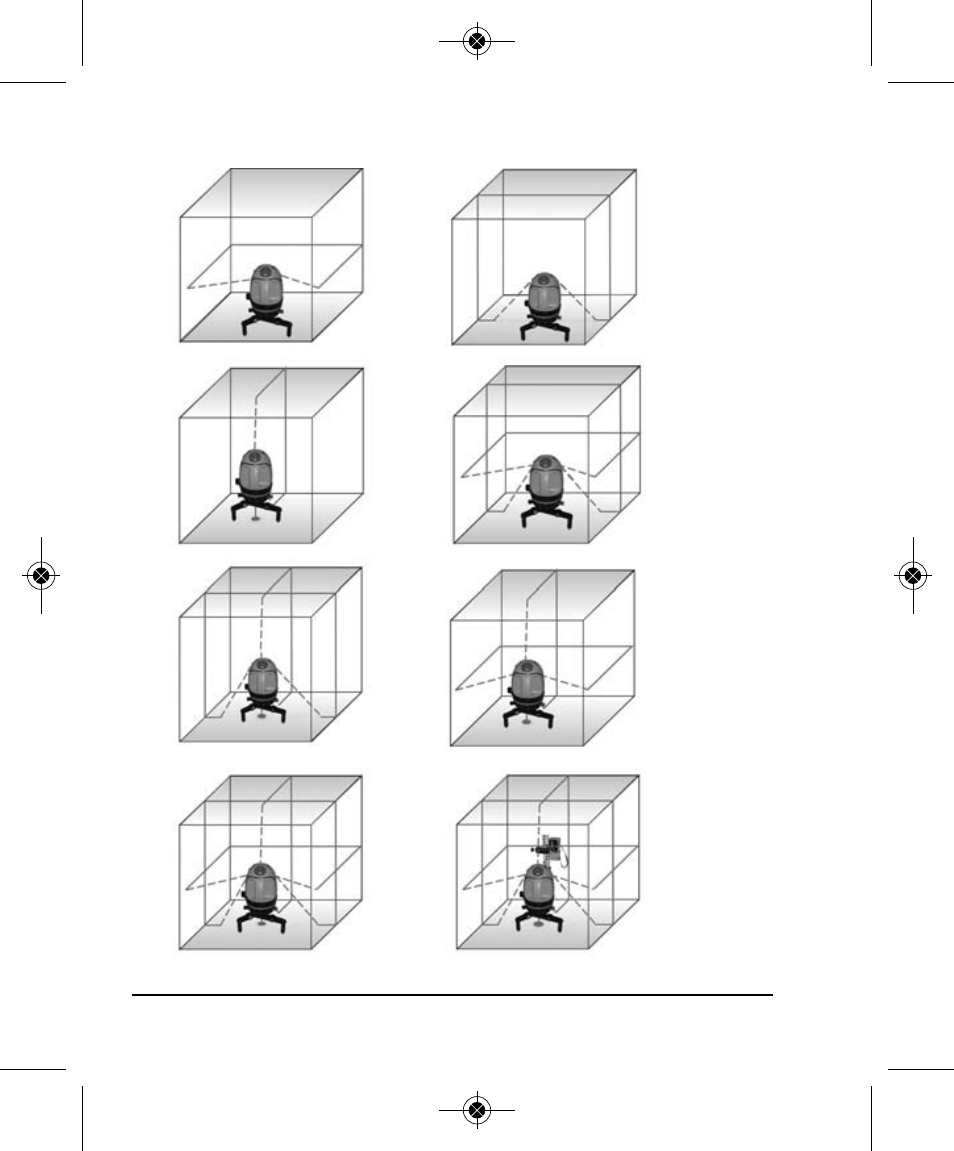

10. Application Demonstrations
Horizontal line
Plumb reference formed by the laser cross
line on ceiling and plumb down point
Simultaneously supply four laser crosslines
on the front, left, right, and top
Front vertical and plumb point
Vertical line
Front laser cross line
Operate with detector to extend
working distance
Laser cross lines on right and left sides
