Installing the DVB-T Module into the System
To install the DVB-T Module, do the following:
1. Power OFF the notebook. Unplug the AC cord and all
cables/devices attached to the notebook. Remove the battery.
2. Place your hand on a large metal object momentarily to
discharge any static electricity. Place the notebook on a flat
surface and fully close the LCD lid.

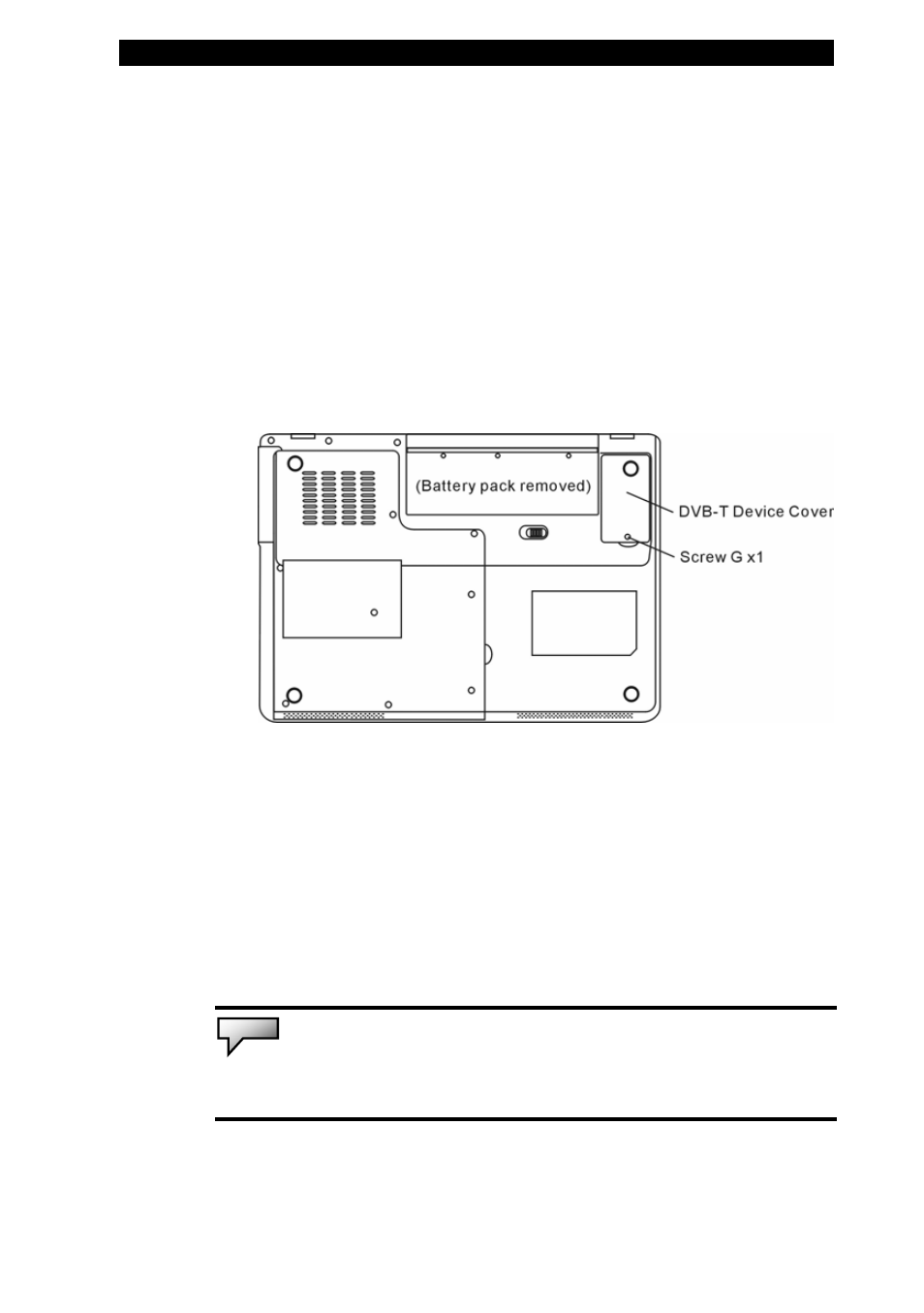

3. Remove Screw G and remove the DVB-T Device Cover.
4. The DVB-T Module will only fit in one direction. Align the
small notch in the module with the socket on the connector and
insert the card at an angle of approximately 30 degrees into the
empty socket. Then press it firmly so that the contact edge is
driven into the receiving socket. Pivot the mini-card and fasten
2 Screw-H’s to hold the card down.
Note:
If you want to remove the DVB-T Module from the socket, remove 2
Screw-H’s. The card should pop up to an angle of 30 degree.
