37

Installation

Connection
First check the mains electricity supply available (number
of phases - voltage - maximum power necessary) to
ensure these are compatible with the requirements of the
Ariston appliance to be connected.

Ariston ovens can adapt to the following electrical systems:

You can connect your furnace to the electric installation
by means of a case of connection. You defer to the table
for the minimal wire sections and the calibration of the
protection measures according to the branch.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact opening
of 3 mm - should be installed between the appliance and
the mains.
We recommend you use a power supply cable which is
long enough to allow you to take the oven out of its recess
in the event of maintenance operations (only use HAR -
H 05 - RRF quality cables fitted with a plug conforming to
the regulations in force in the country where the appliance
is fitted).
The plug must be accessible at all times.

Unplug the appliance before all operations, even when
replacing the oven lamp.

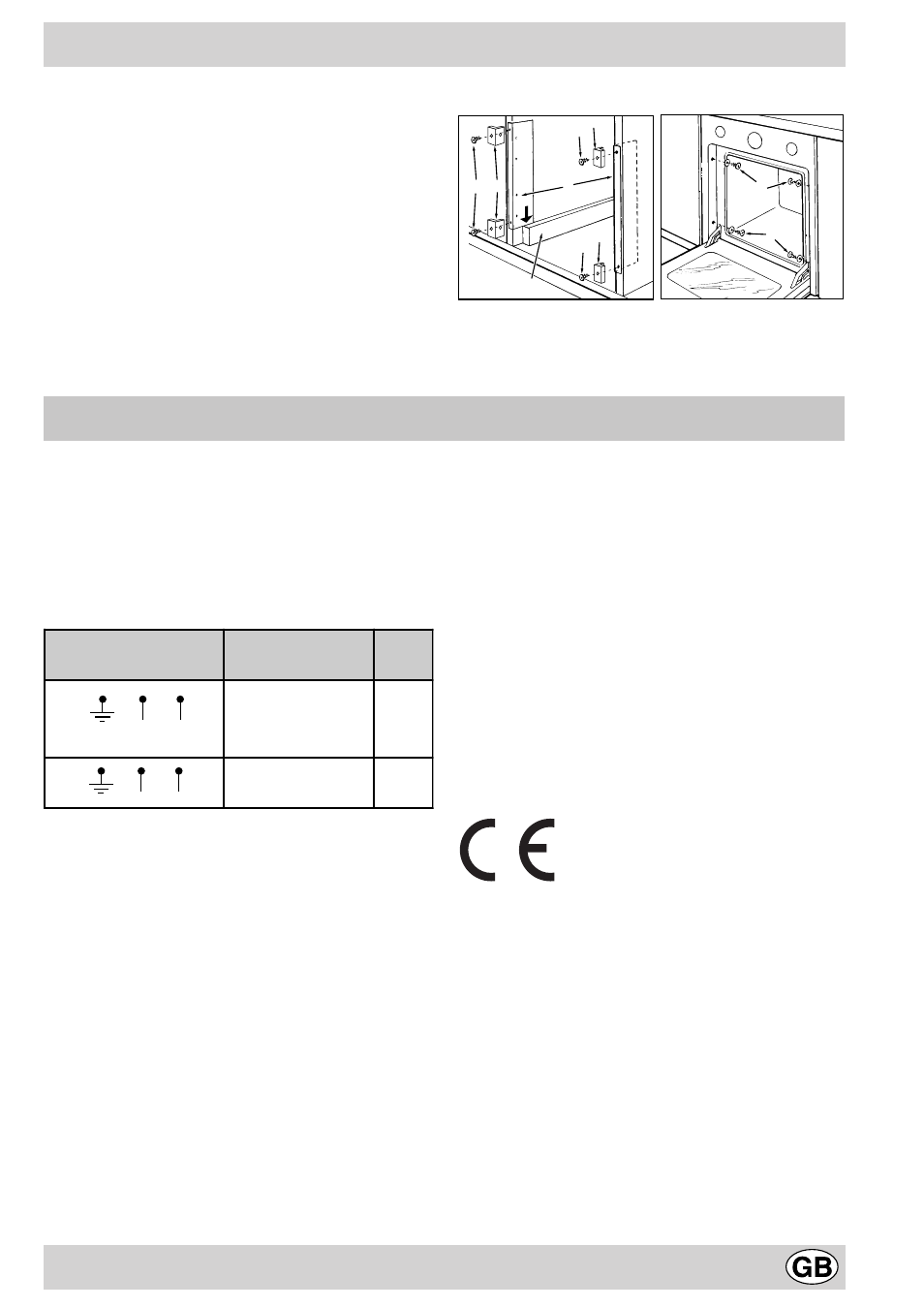

Built-in installation of FC 97 P (see figure on the right)
1. Place brackets "A" well against the oven support blocks

"B".

2. Place the tabs "C" well against brackets "A". In particular,

if the cabinet side panel:

• is 16 mm thick: mount the tab so that the number 16 it

features is facing you;

• is 18 mm thick: mount the tab so that the part without

any wording is facing you;

• is 20 mm thick: do not mount the tab.

3. Fasten the brackets and tabs on the oven cabinet side

panel using screws "D".

4. Fasten the oven to the cabinet using the screws and

plastic washers "E".

D

A

B

D

D

16

16

16

16

C

C

C

E

E

Electrical connection

Electrical connections

Voltage

Frequency

Fuse

Section

FR-AT-BE-DE-GP-ES-IE-IL-IS-IT-DK
LU-RE-FI-GB-GR-PT-SE-MA-NZ-NL

230 V-1+N ~ 50 Hz

CY-MT-AU-NZ-KW

240 V-1+N ~ 50 Hz

16 A

1,5 mm²

FR-BE-NO

230 V-2 ~ 50 Hz

16 A

1,5 mm²

This appliance conforms with the following European
Community directives:
DBT 73/23 EEC modified by 93/68/EEC directive
CEM 89/336/EEC modified by 92/31/EEC and 93/68/EEC
directives

Inner dimensions of the oven:
width

43.5 cm

depth

40.0 cm

height

32.0 cm

Inner volume of the oven:

54 litres

Voltage and frequency of power supply:

230V~50Hz : 2800 W
240V~50Hz : 3050 W

Using the appliance without correct earthing is highly
dangerous.

Important: After connecting the appliance to the flexible
cable, tighten all the screws on the terminal board.

L

N

L1

L2
