ReadyLIFT Ford F450 Super Duty Coil Spring Leveling Kit, 2011-2014 - 4WD Only - 2.5 lift" User Manual
Page 4
www.ReadyLIFT.com
Phone (702)410-2300
Installation Instructions (46-2440 & 46-2442)

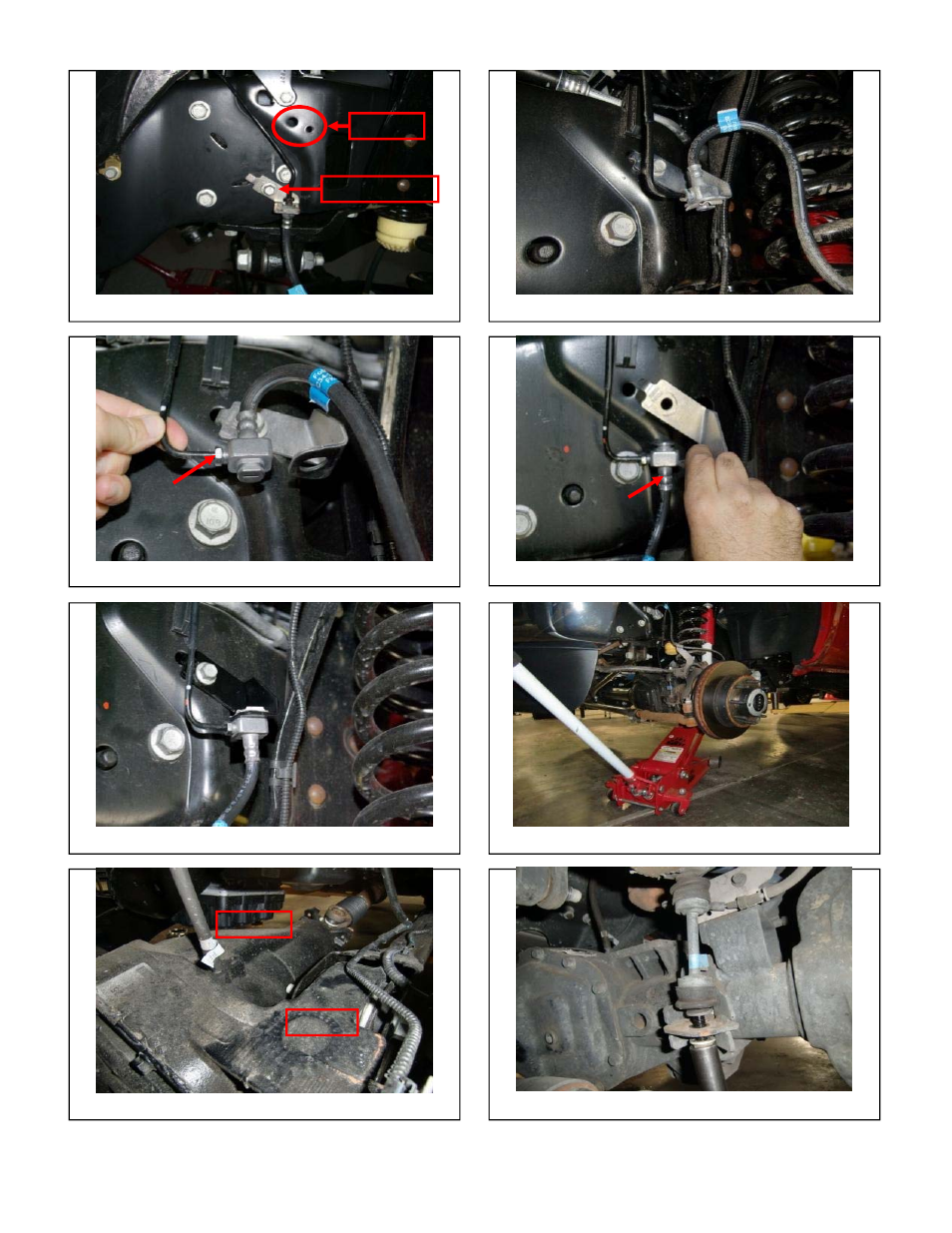

Shown, dr. side new 3/8 brake line hole location.
(11-up) models replace OE bracket with new drop bracket.
Loosen hard line
ferrule
rotate block 180 degrees and tighten
Note line direction
, replace OE bracket with new drop bracket
Reinstall block into bracket with retaining clip.
Support front axle with floor jack(s).
Note differential vent line and ABS brake lines.
Disconnect both front sway bar end links
OE holes
New 3/8 hole
Vent line
ABS line
