ReadyLIFT GMC Denali: 2007-2014 2WD & 4WD - 6 LUG - Adj. 1.0-1.5"" User Manual
Page 3
www.ReadyLIFT.com
Phone (702)410-2300
Installation Instructions (66-3090)

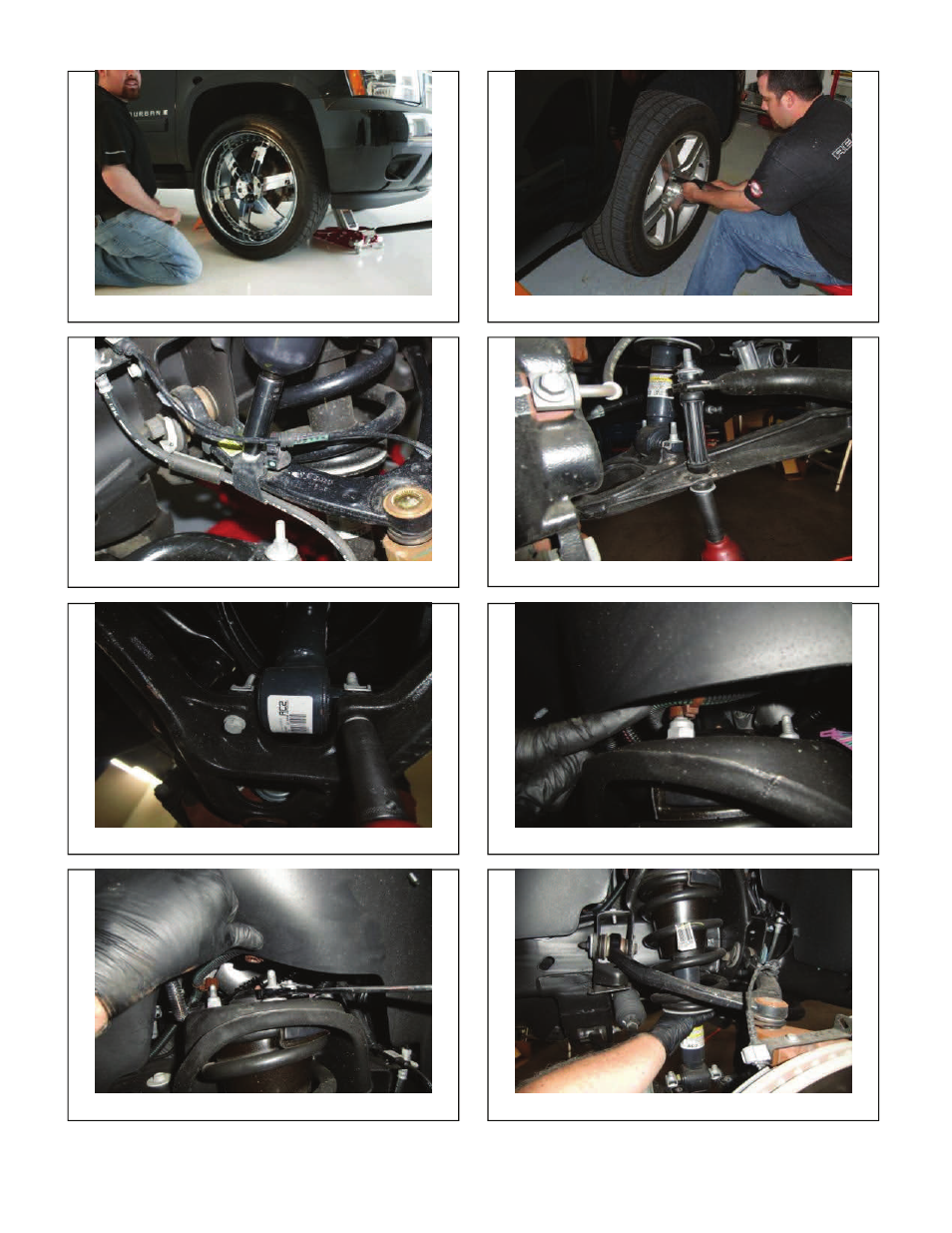

Raise and support front of vehicle frame on jack stands
Remove front wheels/tires
Disconnect ABS/brake bracket from upper control arm.
Disconnect dr/pass sway bar end links
Remove lower strut mounting bolts
Pry up ABS retaining clips from upper strut mounting nuts
Remove upper strut mounting nuts
Remove entire strut assembly from vehicle.
