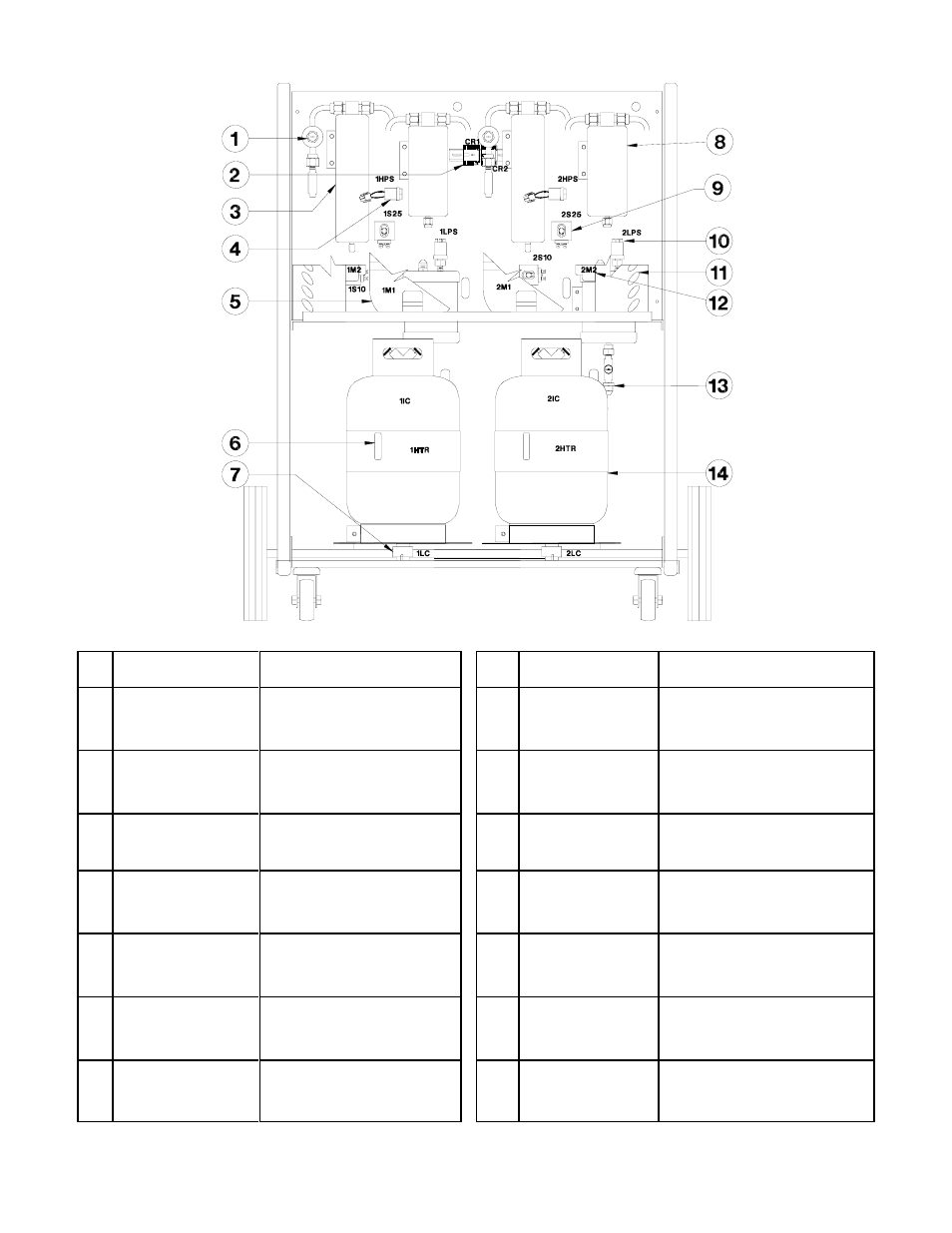

PARTS LIST

P/N

DESCRIPTION P/N

DESCRIPTION

1

360-81574-00

Expansion Valve Assy

8

026-80069-00

Combo Filter 3/8 Flare
(Short)

2

024-80037-00

Contactor ½ HP
120V 3NC/1NC

9

025-80304-00

Solenoid Valve
120V

3

026-80077-00

Combo Filter 3/8
Flare (Long)

10

360-81309-00

Low Pressure Switch
3psig - 8InHg

4

360-81307-00

High Pressure Switch
261 psig

11

360-80280-00

Condenser Assy

5

360-81670-01

Compressor Assy
2680 (120V)

12

360-80416-00

Fan Assy w/Pins
120V

6

360-81547-01

Assy Heater Belt

13

360-80851-00

Oil Drain Assy

7

031-80000-00

Load Cell 35Kg

14

360-81428-00

Internal Cylinder (DOT)
