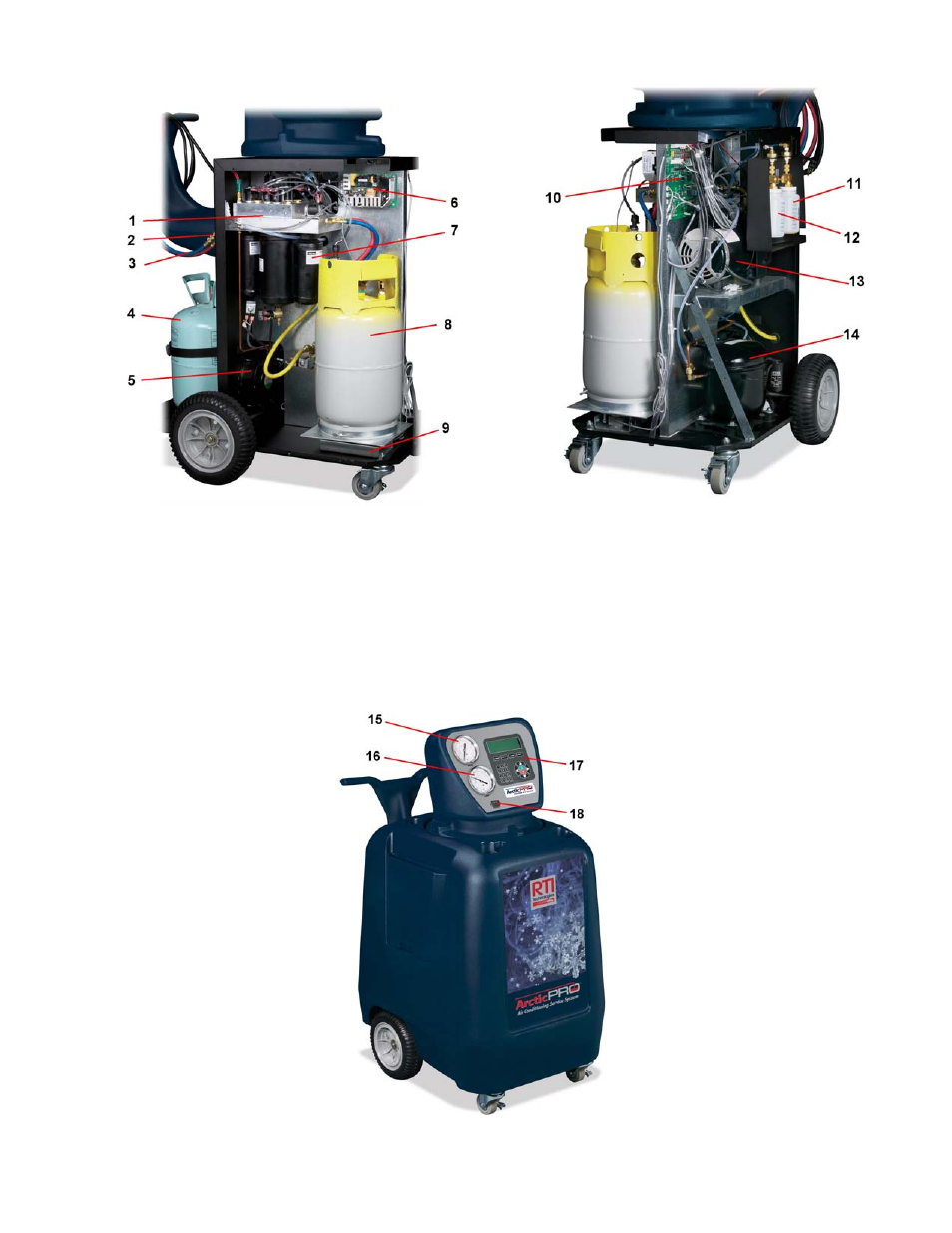

PARTS IDENTIFICATION

1

Manifold

Assembly

2

In-line

Filters

3

Service

Hoses

4 New Refrigerant (not included)

5

Condenser

Fan

6 Control Power Supply

7

Combo

Filter

8

Charge

Cylinder

9

Load

Cell

10

Control

Board

11 Oil Bottle (Used)

12 Oil Bottle (New)

13

Vacuum

Pump

14

Compressor

15 High Pressure Gauge

16 Low Pressure Gauge

17 Display & Keypad

18

Power

Switch
