Versa-Matic 2 Clamped Metallic Hazardous Service Ball Valve (RE2) - Manual (Page 6)

Performance
RE2 Clamped
Flow Rate
Adjustable to . . . . . . . 0-165 gpm (625 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . 2" NPT (BSP)
Discharge. . . . . . . . . . . . . . . . 1" NPT (BSP)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . 1" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . 3/4" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . .20' (6.10 m)
Wet. . . . . . . . . . . . . . . . . . . . . . .25' (7.62 m)
Suction Lift (PTFE)
Dry . . . . . . . . . . . . . . . . . . . . . . .10' (3.05 m)
Wet. . . . . . . . . . . . . . . . . . . . . . .20' (6.10 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . .0.43" (11 mm)
Max Noise Level . . . . . . . . . . . . . 92 dB(A)
Shipping Weights
Aluminum . . . . . . . . . . . . . . .83 lbs (37.7 kg)
Stainless Steel . . . . . . . . . .128 lbs (58.2 kg)
Cast Iron. . . . . . . . . . . . . . .128 lbs (58.2 kg)
Hastelloy C. . . . . . . . . . . . .138 lbs (62.7 kg)
re2mdlAsmATEXC-rev0614
www
.
versamatic
.
com
1: PUMP
SPECS
3

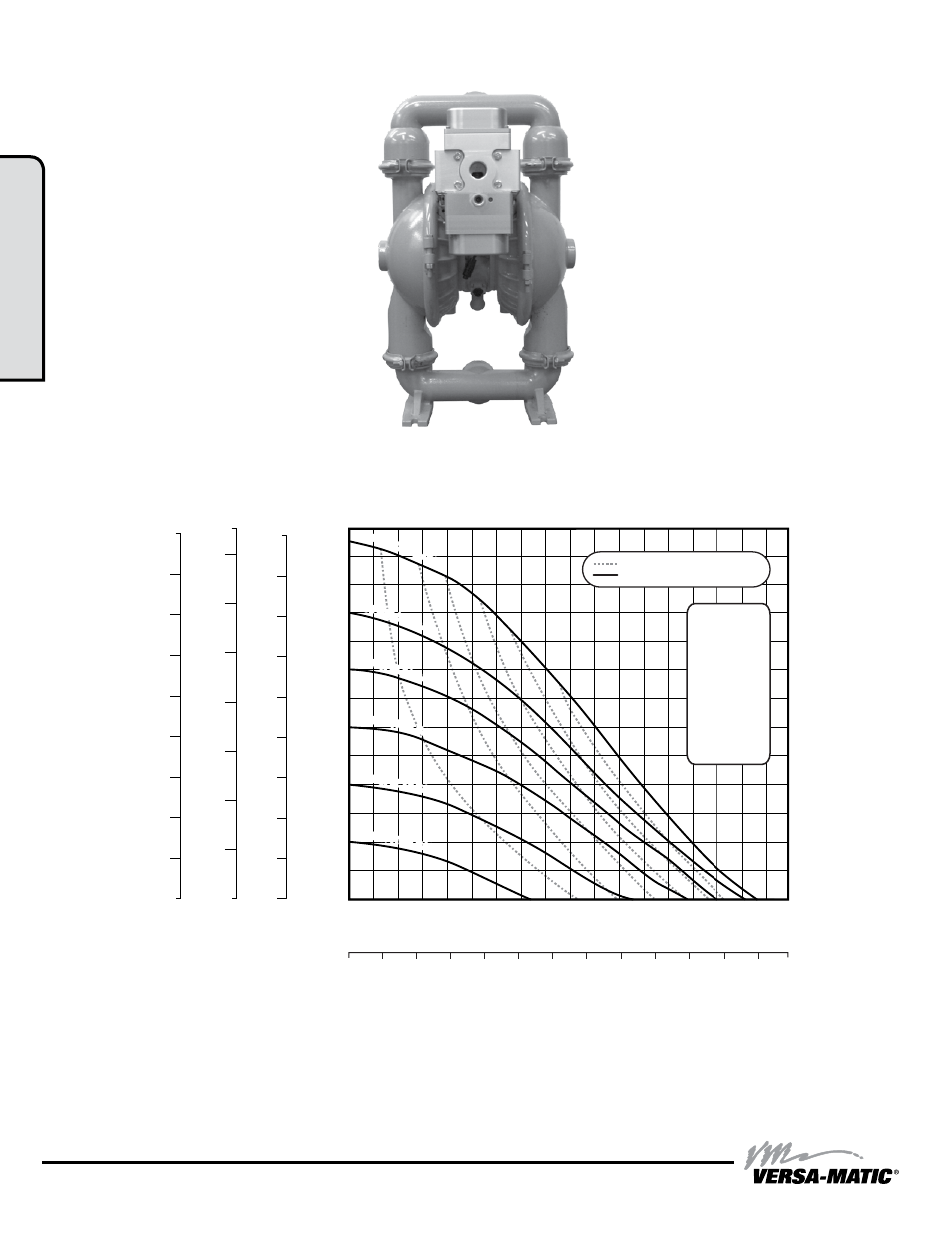

• Model RE2 Metallic Clamped
CAUTION: Do not exceed 125 psig (8.5 bar) air
supply or liquid pressure.
NOTE: For RE2AA pumps fitted with PTFE
diaphragms, reduce water discharge figures by
10%. Suction lift is reduced to 10' (3.05m) dry
and 20' (6.10m) wet.
0
0 50 100 150 200 250 300 350 400 450 500 550 600 650
100
110
120
130
90
80
70
60
50
40
30
20
10
0
10 30 50 70 90 110 130 150 170
Discharge Pressure in PSI
Flow in U.S. Gallons Per Minute
Flow in Liters Per Minute
Meters Feet
0 0
40
80
120
160
200
240
280
10
20
30
40
50
60
80
90
70
0
1
2
3
4
5
6
7
8
9
BAR
Displacement Per Stroke, 0.60 Gal. (2.33 L)
20
30
40 50
60
70
SCFM M 3 /HR
10 17
20 34
30 51
40 68
50 85
60 102
70 119
80 136
90 153
100 170
AIR CONSUMPTION IN SCFM
FLUID FLOW IN GPM
125 PSI (
8.6 BA
R)
100 PSI (
6.8 BA
R)
80 PSI (5.44
BAR)
60 PSI (4.08 B
AR)
40 PSI (2.72 BA
R)
20 PSI (1.36 BA
R)
