3
• Model E2 Non-Metallic Bolted
Performance
E3 - 3” Non-Metallic Bolted Pump – Metallic Center
ELASTOMERIC AND TPE FITTED
Flow Rate
Adjustable to . . . . . . . 0-238 gpm (901 lpm)
Port Size
Suction . . . . . . .3" ANSI, 150 Class (DIN 50)
Discharge. . . . .3" ANSI, 150 Class (DIN 50)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . 3/4" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . 1" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . .20' (6.1 m)
Wet. . . . . . . . . . . . . . . . . . . . . . . .25' (7.6 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . .0.71" (18 mm)
Max Noise Level . . . . . . . . . . . . . 96 dB(A)
Shipping Weights
Polypropylene . . . . . . . . . . 231 lbs (105 kg)
PVDF . . . . . . . . . . . . . . . . . 315 lbs (143 kg)
NOTE: Performance based on the following: elastomeric fitted pump, flooded suction, water at
ambient conditions. The use of other materials and varying hydraulic conditions may result in
deviations in excess of 5%.
DISCHARGE PORT
3” STANDARAD 125# FLANGE CONFIGURATION
3/4” DIA., (4) HOLES EQUALLY SPACED
ON A 6” DIA. BOLT CHANGE.
MANIFOLD CAN
ROTATE ±90º
FROM VERTICAL
CENTERLINE
BOLT PATTERN IS
SYMMETRICAL ABOUT
CENTERLINES
AIR INLET
3/4” NPT
BOTTOM VIEW
SIDE VIEW
FRONT VIEW
SUCTION PORT
3” STANDARAD 125# FLANGE CONFIGURATION
3/4” DIA., (4) HOLES EQUALLY SPACED
ON A 6” DIA. BOLT CHANGE.
STANDARD INTEGRAL MUFFLER:
1” NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS

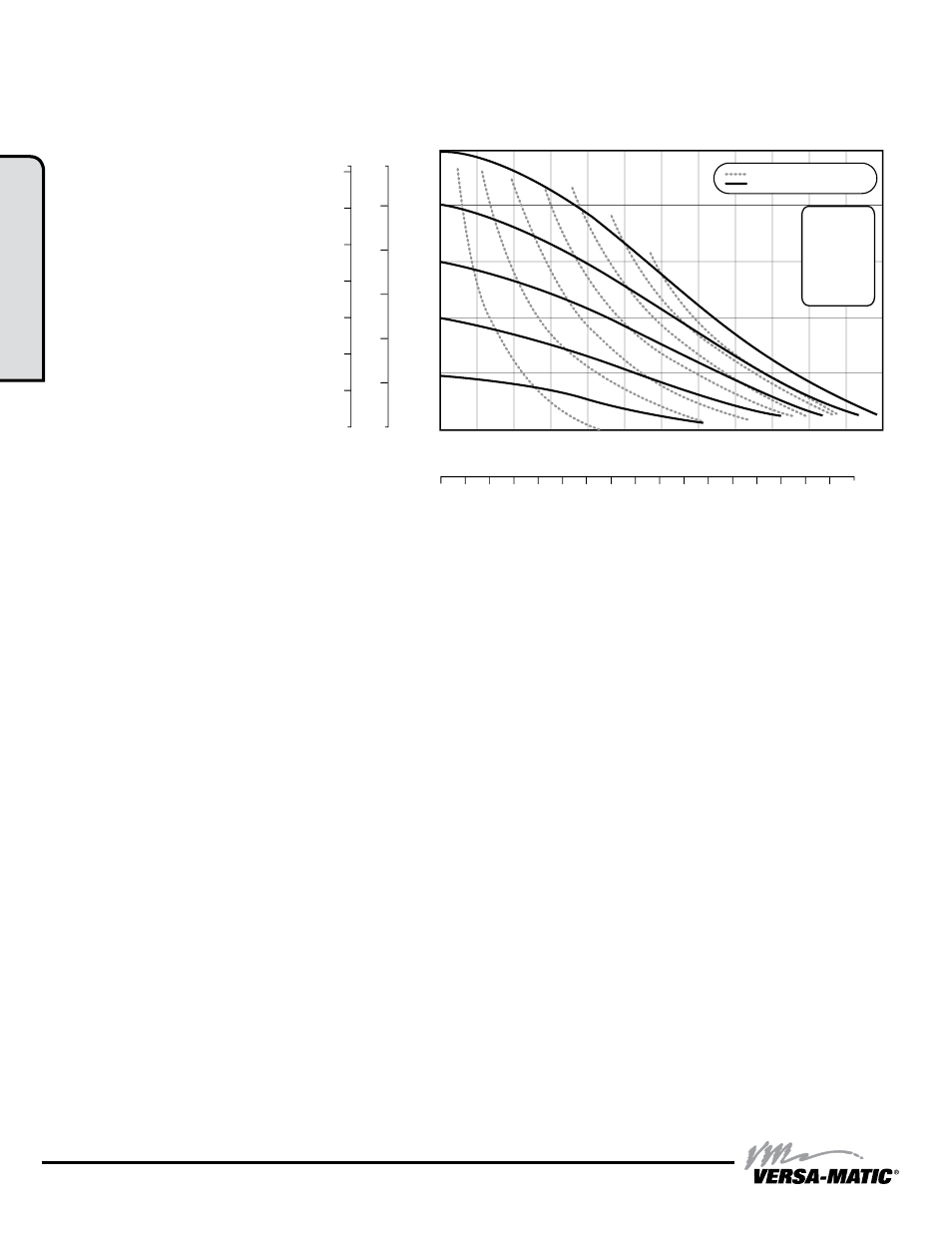

Meters Feet
Discharge Head in PSI
0
Capacity in Liters Per Minute
Capacity in U.S. Gallons Per Minute
Displacement Per Stroke, 0.9 Gal. (3.41 L)
AIR CONSUMPTION IN SCFM
AIR PRESSURE IN PSI
SCFM M3/HR
20
34
40
68
60
102
80
136
100
170
120
204
140
238
0
0
0
0
40
80
120
160
200
10
20
20
30
40
40
50
60
60
80
100
70
20
40
50
150
250
350
450
550
650
750
850
20
40
60
80
100
120
140
60
80
100 120 140 160 180
220
200
240
1: PUMP
SPECS
