• Model E8 Non-Metallic Bolted www
.
versamatic
.
com
Performance
E8 3/8" Bolted Metal
Flow Rate
Adjustable to . . . . . . . . . 0-6.8 gpm (25.7 lpm)
Port Size
Suction . . . . . . . . . . . . . . . . . . 3/8" NPT (BSP)
Discharge. . . . . . . . . . . . . . . . 3/8" NPT (BSP)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . .1/4" NPT
Air Exhaust . . . . . . . . . . . . . . . . . . . .1/4" NPT
Suction Lift
Dry . . . . . . . . . . . . . . . . . . . . . . . . . 8' (2.44 m)
Max Solid Size (Diameter)
. . . . . . . . . . . . . . . . . . . . . . . . 0.10" (2.25 mm)
Max Noise Level . . . . . . . . . . . . . . . 78 dB(A)
Shipping Weights
Polypropylene . . . . . . . . . . . . . 3 lbs (1.40 kg)
Kynar . . . . . . . . . . . . . . . . . . .4.5 lbs. (2.04 kg)
NOTE: Performance based on the following: Elastomeric fitted pump, flooded suction, water at
ambient conditions. The use of other materials and varying hydraulic conditions may result in
deviations in excess of 5%.

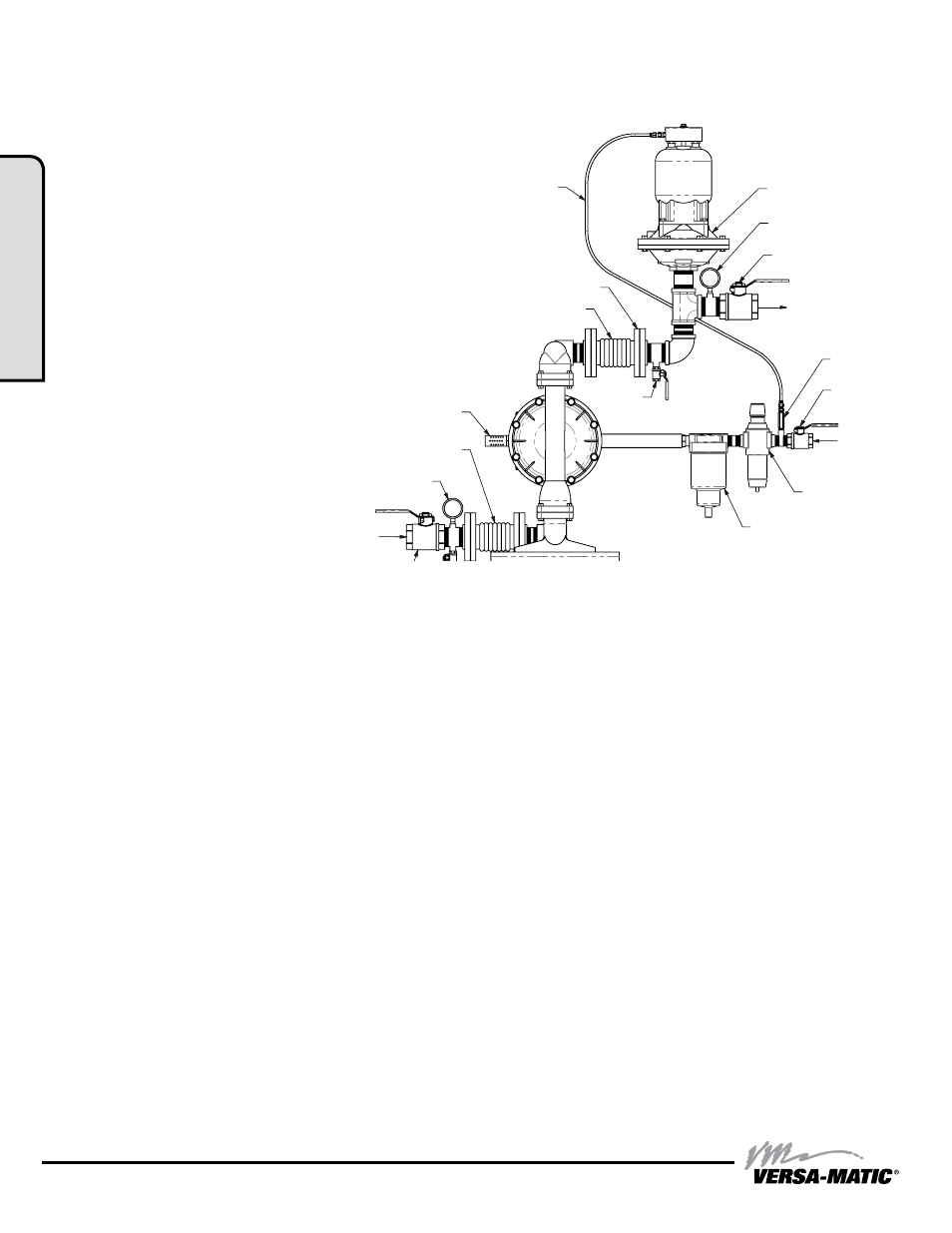

Surge Suppressor
Shut-Off Valve
Pressure Gauge
Drain Port
Shut-Off
Valve
Check
Valve
Air Inlet
Discharge
Unregulated Air
Supply to Surge
Suppressor
Pipe Connection
(Style Optional)
Flexible Connector
Flexible Connector
Vacuum
Gauge
Suction
Shut-Off Valve
Drain Port
Air Dryer
Filter Regulator
P/N: 020.V107.000
Muffler
(Optional Piped Exhaust)
1: PUMP
SPECS
