Dimensions: e6 non-metallic, Dimensional drawings, E6 non-metallic bolted – Versa-Matic 1/4 Elima-Matic Bolted Plastic - ATEX (E6) User Manual
Page 7
e6nmdlCsmATEX-rev0514
Model E6 Non-Metallic Bolted •
4
www
.
versamatic
.
com
E6 Non-Metallic Bolted
Dimensions in inches (mm dimensions in brackets).
The dimensions on this drawing are for reference only. A certified drawing can be requested if physical dimensions are needed.

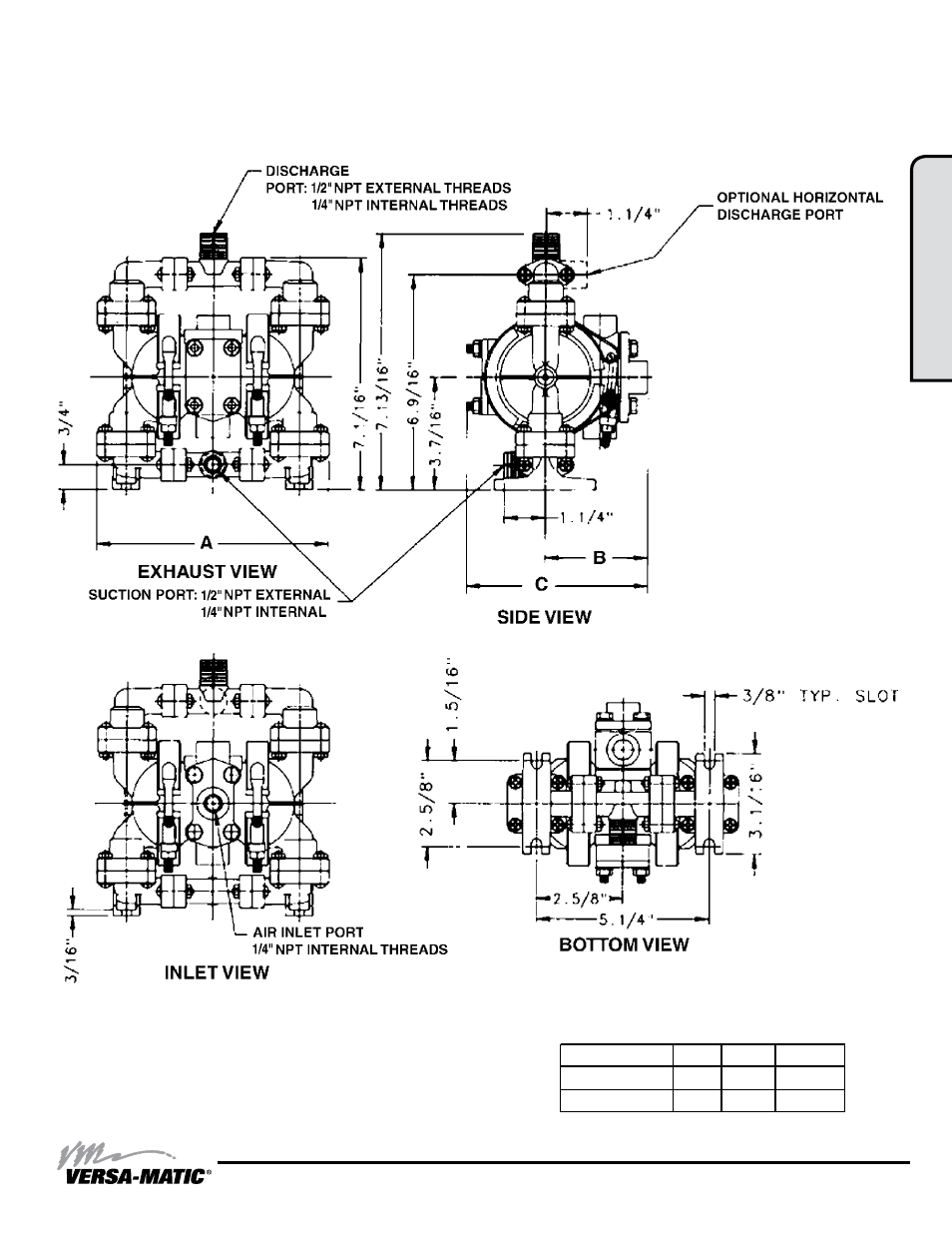

Dimensional Drawings
Model E6 Non-Metallic 1
520-361-000 Page
12
Dimensions:
E6 Non-Metallic
Dimension
Standard
Pulse Output Kit
A
B
C
7"
3.1/8"
5.1/2"
9"
3.9/16"
5.15/16"
3
Model Specific
1: PUMP
SPECS
