OPERATING INSTRUCTIONS CABINET REEL
(Revision 1—2/94)
INSTALLATION
1. The machine that you have just received is fully assembled and ready to be put into posi-
tion. Due to shipment vibration the machine should be checked to be sure all screws and
bolts are tight and that all electrical components are in place inside cabinet. Visually in-
spect the machine for damaged parts due to shipment. If the machine was damaged in ship-
ment, contact the carrier first to report the damage, and then Rapid-Air.
2. Install the machine on a level surface with sufficient clearance for loading and unloading
coils.
3. The machine is completely self-contained and need only be plugged into a 20 amp, 120 volt,
60 HZ outlet. If an extension cord is used as the source to the machine, it should be a mini-
mum #12 gauge wire to keep the voltage loss down and for electrical safety reasons.

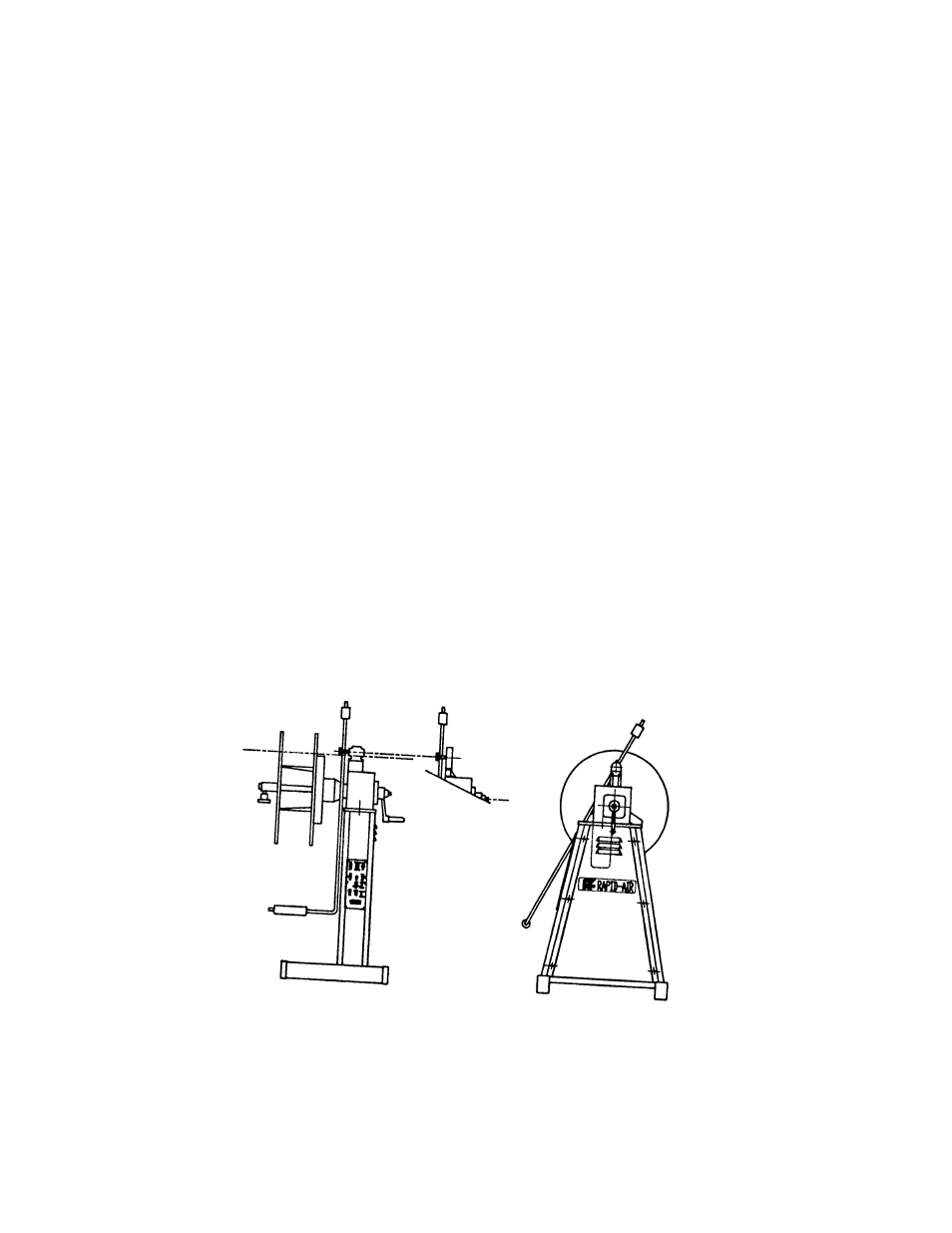

See Drawing Below (fig. Man 27
