OPERATING INSTRUCTIONS (CONT.)

• SAVE ALL INSTRUCTIONS

PRESSURE WASHER OPERATING FEATURES PRESSURE

ADJUSTMENTS

The pressure setting is present at the factory to achieve optimum pressure and cleaning� If you need a lower the pres-
sure, it can be accomplished by these methods�

1� Back away from the surface to be cleaned� The further away you are, the less the pressure will be on the surface to
be cleaned�
2� Change to the 40° nozzle – this nozzle delivers a less powerful stream of water and a wider spray pattern�

CAUTION

DO NOT attempt to increase pump pressure� A higher pressure setting than the factory set pressure

may damage pump�

TO USE SPRAY WAND

The nozzles for the spray wand are stored on the top stor-
age panel� See chart to choose the correct nozzle for the
job to be performed�

CHANGING NOZZLES ON SPRAY WAND

DANGER

RISK OF FLUID INJECTION. Do NOT

direct discharge stream toward persons, unprotected skin,
eyes or any pets or animals� Serious injury will occur�

WARNING

RISK OF FLUID INJECTION. Do NOT

attempt to change nozzles while pressure washer is run-
ning� Turn engine off before changing nozzles�

1� Pull back the quick connect collar on the spray wand
and hold it in place�
2� Insert the desired quick connect nozzle and hold in place�
3� Slide the quick connect collar forward until it locks into
place�
4� Check that the quick connect nozzle is securely locked
into the spray wand�

0°

15°

25°

40°

Soap

Spray
Pattern

Uses

Powerful
pinpoint for
very intensive
cleaning

Intense clean-
ing of small
areas

Intense clean-
ing of medium
areas

Intense clean-
ing of larger
areas

Applies clean-
ing solutions

Surfaces*

Metal or con-
crete
DO NOT use
on wood

Metal, con-
crete, or wood

Metal, con-
crete, or vinyl

CAUTION

The high pressure spray from your pressure washer is capable of causing

damage to surfaces such as wood, glass, automotive paint, auto striping and trim, and delicate
objects such as flowers and shrubs. Before spraying, check the item to be cleaned to assure
yourself that it is strong enough to resist damage from the force of the spray�

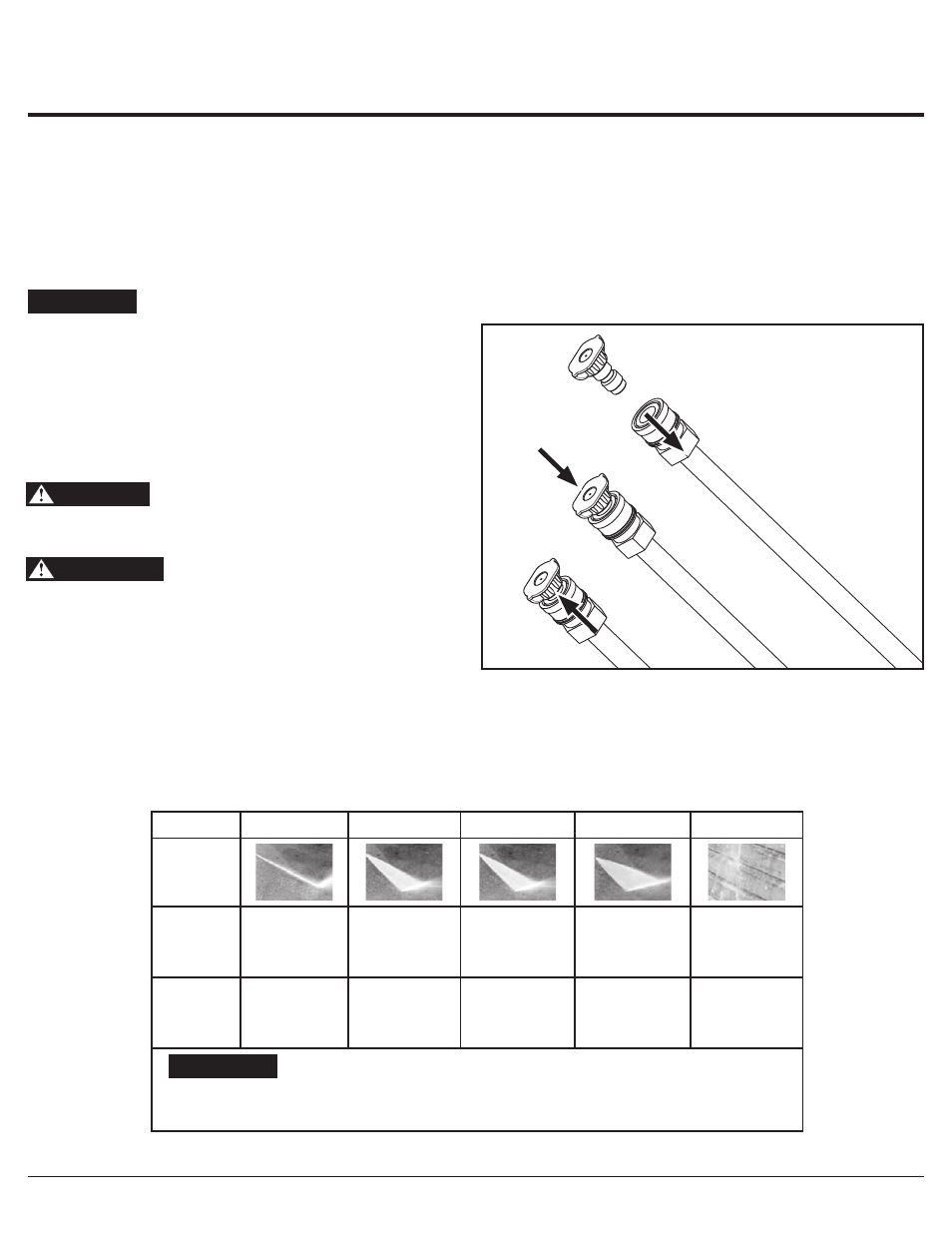

FIG. 7
