DETAIL A

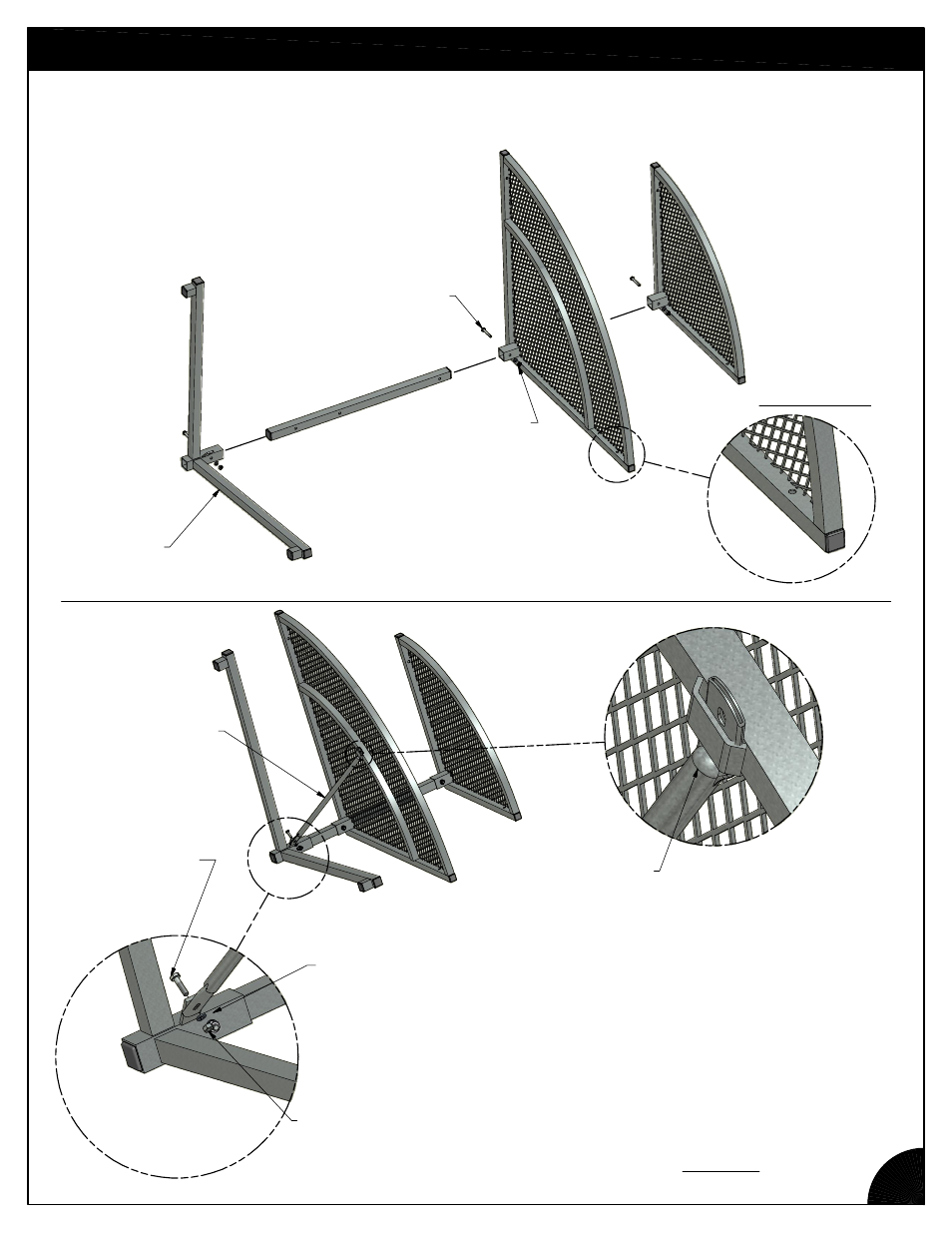

ASSEMBLY INSTRUCTIONS
3
BASE
5/16" x 2" HEX BOLT
5/16" LOCK WASHER
5/16" HEX NUT
1. SLIDE END CAP VERTICAL INTO THE END CAP BASE. FASTEN
WITH 5/16" HEX BOLT, LOCK WASHER, AND HEX NUT.
2. SLIDE END CAP BOTTOM BENCH OVER END CAP
VERTICAL. ALIGN WITH MOUNTING HOLE. FASTEN
WITH 5/16" HEX BOLT, LOCK WASHER, AND HEX NUT.
3. SLIDE END CAP MIDDLE BENCH OVER END CAP
VERTICAL. ALIGN WITH MOUNTING HOLE. FASTEN
WITH 5/16" HEX BOLT, LOCK WASHER, AND HEX NUT.
BENT TAB END OF
SUPPORT TUBE
1/4" x 1" HEX BOLT
STRAIGHT TAB
END OF
SUPPORT TUBE
SUPPORT TUBE
1/4" LOCK WASHER
1/4" HEX NUT
4. TO INSTALL THE BOTTOM BENCH SUPPORT INSERT
THE BENT TAB END OF THE TUBE INTO THE END CAP
BOTTOM BENCH.
5. ALIGN THE STRAIGHT TAB END OF THE BOTTOM BENCH
SUPPORT WITH MOUNTING HOLE IN MOUNTING TAB ON
THE END CAP BASE. FASTEN WITH 1/4" x 1" HEX BOLT,
LOCK WASHER, AND HEX NUT.
6. ATTACH TO ANOTHER EC2000 WITH BOLTS AT
CONNECTING HOLES SEE DETAIL A.
