ADJOINING
BENCH TOP
EXISTING
BENCH TOP
ADJOINING
BENCH END
SUPPORT TUBE

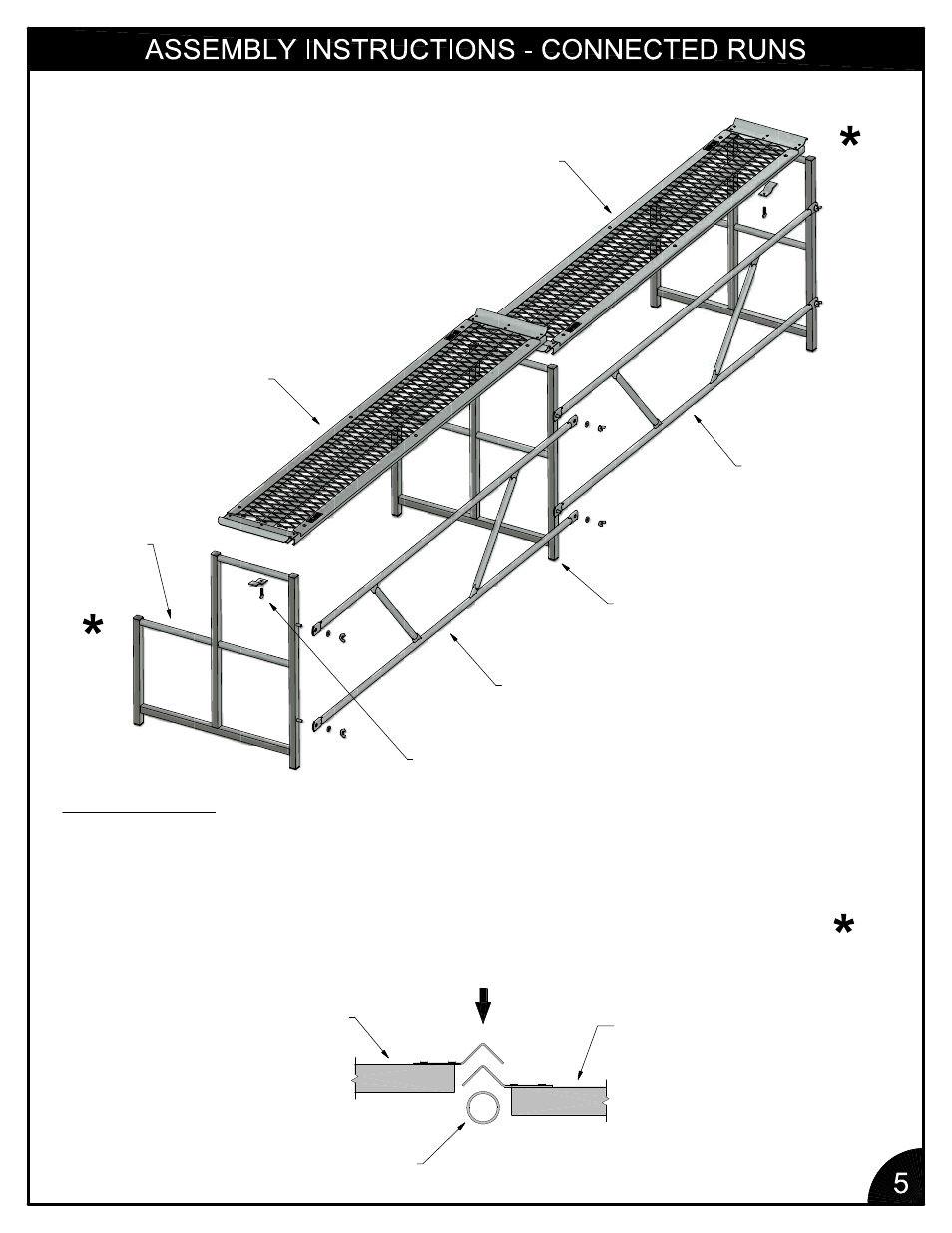

INSTRUCTIONS:
1. ATTACH ADJOINING UNIT'S STABILIZER AND BENCH END TO THE EXISTING UNIT'S
BENCH END.
2. SET BENCH TOPS DOWN OVERLAPPING EXISTING BENCH TOPS AS SHOWN BELOW.
3. SECURE CLIPS ONLY ON END UNITS OF MULTIPLE UNITS JOINED TOGETHER ( ).
ADJOINING STABILIZER
EXISTING STABILIZER
ADJOINING BENCH TOP
(ONLY ONE SHOWN
FOR CLARITY)
EXISTING BENCH TOP
(ONLY ONE SHOWN
FOR CLARITY)
EXISTING BENCH END
ADJOINING
BENCH END
3/4" BENCH CLIP
W/THUMB SCREW
