No.
Part No.
Description
AE-60
Shell Assembly
4
AE-47
Shell
8
H-128A
Valve Casing with AE-47
5
AE-43
“O” Ring
6
AEC-34R
Tip
7
H-155
Finger Button
9
A-53
Valve Washer (Pack of 6)
10
H-192A
Valve Plunger
11
AE-61
Valve Spring
AECR Remote Feed Air Eraser
With Quart Container
12
A-23R
Air Valve Nut
A-1/8-6MT
Air Hose W/MT Moisture Trap
AE-52
Hose Assembly w/Handle & Fittings
AE-51
Cover Assembly w/Fittings
24
H-128A
Valve Casing
25
AE-50
Cover (only)
29
P2-10N
Outlet Casing
3
AE-59
Gasket
26
7-GN
Gasket
30
20SCC
Quart Cup

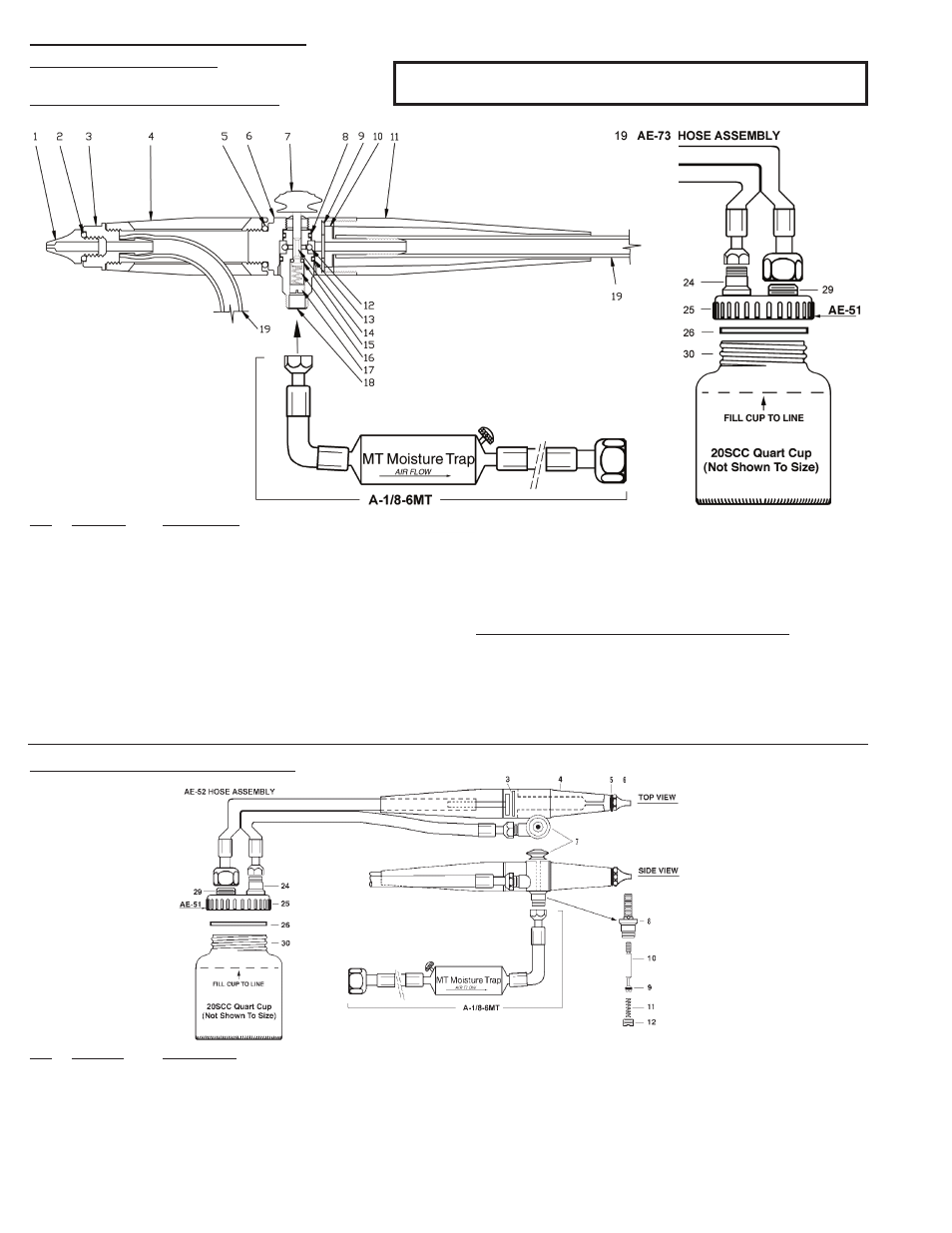

OLD STYLE - AECR Air Eraser
CAUTION: Do Not Exceed 50 P.S.I. Pressure. To do so may require
replacement of the 20SCC Cup and create an unsafe condition.
NEW - AECR Air Eraser
No.
Part No.
Description
1.
AEC-34R
Tip w/Carbide Insert
2.
AE-43
“O” Ring
3.
AE-71
Adapter
4.
AE-72
Tube
5.
AE-6
“O” Ring
6.
AE-70
Shell
7.
H-155
Button
8.
TAL-22
“O” Ring
9.
AE-59
Gasket
10.
AE-49
Hose Connection
11.
AE-48
Handle
12.
AE-68
“O” Ring
13.
AE-69
“O” Ring
14.
AE-64
Plunger
15.
A-53
“O” Ring (Pack of 6)
16.
A-22
Valve Spring
17.
A-23R
Air Valve Nut
18.
AE-63
Valve Casing
19.
AE-73
Hose Assembly (connection to cup)
A-1/8-6MT
Air Hose W/MT Moisture Trap (to Eraser)
CUP SHOWN IN PICTURE BELOW IS INCLUDED
AE-51
Cover Assembly w/Fittings
24.
AE-74
Inlet Fitting (replaces H-128A)
25.
AE-50
Cover (only)
29.
P2-10N
Outlet Casing
26.
7-GN
Gasket
30.
20SCC
Quart Cup
