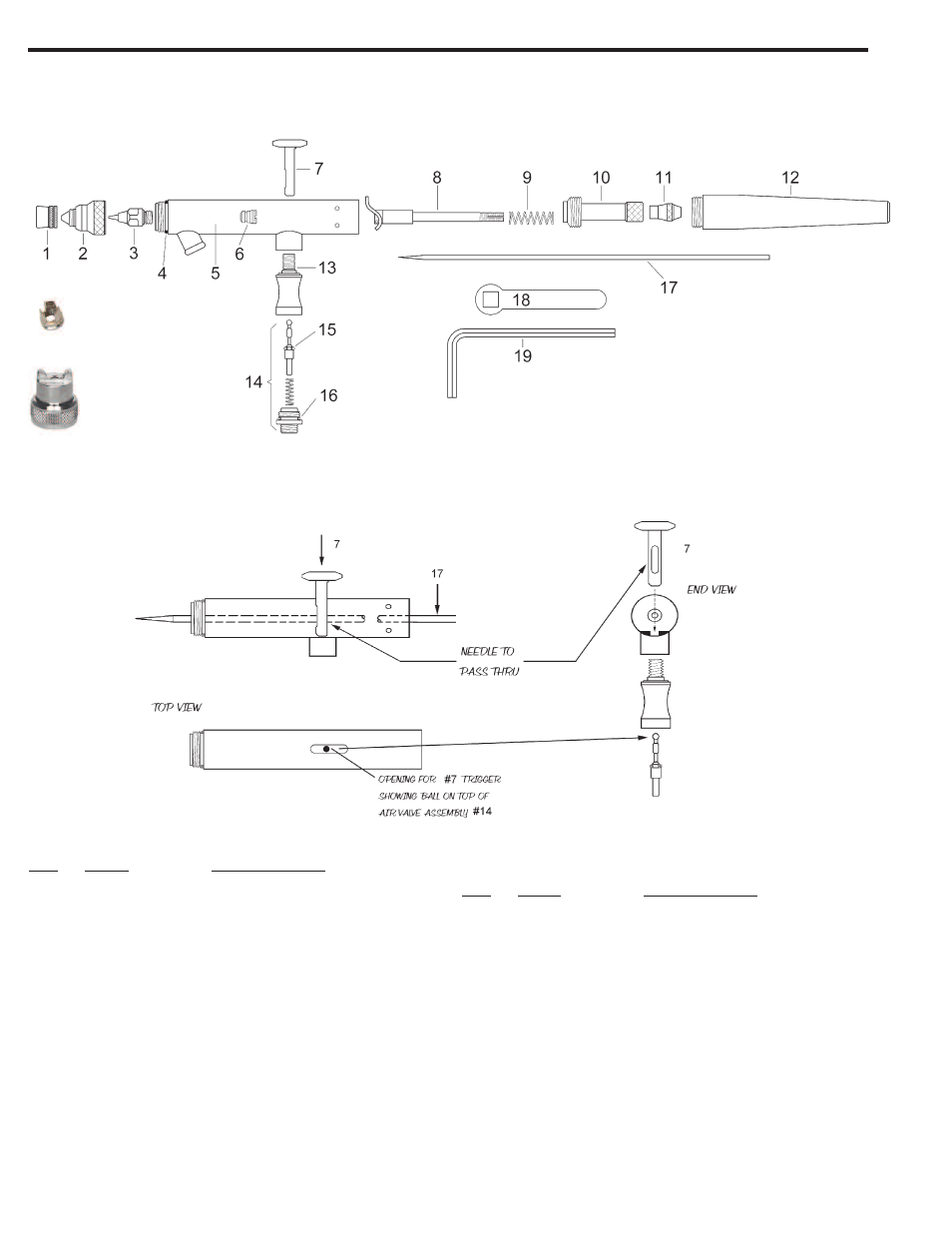

NO. PART DESCRIPTION
1. XI-41 Needle Protection Cap
1b. TAL-23 Crown Cap (Optional)
1c. TAF-3 Fan Aircap for .66mm Head-
(uses TT-3 & TN-3)(Optional)
2. TA-2, TA-3 Aircap (.38mm, .66mm)
3. TT-2, TT-3 Tip (.38mm, .66mm)
4. MIL-12 “O” Ring
5. TS-30 Shell Assembly
6. TAL-8 Packing Assembly PTFE
7. TAL-37 Trigger
8. TAL-18 Rocker Assembly
9. MIL-11 Needle Spring
10. TAL-17 Spring Housing
Paasche® TS Siphon Feed, Double Action Airbrush Page 2
(B)
(A)
NO. PART DESCRIPTION
11. TAL-19 Needle Lock Nut
12. TS-33 Handle
13. TAL-14 Valve Casing
14. TAL-32 Air Valve Assembly
15. TAL-26 “O” Ring
16. TAL-22 “O” Ring
17. TN-2, TN-3 Needle (.38mm, .66mm)
18. TAL-28 Wrench
19. TAL-35 Allen Wrench
