TROUBLESHOOTING:
Bubbling in cup
1. VLH Head #3 needs to be wrench tightened
Skipping or spitting:
1. Paint too thick -Reduce with thinner
2. Tip not seated -Tighten VLH Head with wrench
3. Tip split or damaged needle -Replace tip or needle
4. Needle or tip dirty -Clean and replace
5. Air pressure too low -Increase pressure or thin paint further (need 20 or more PSI to spray most paints)
Airbrush not spraying:
1. Clogged tip -Remove tip and clean
2. Needle not retracted -Adjust back knob
3. Loose VLH Head -Wrench tighten
4. Low air pressure -Increase pressure (need 20 or more PSI to spray most paints)
5. Bottle vent hole plugged -Use needle or pin to clear air hole
Sprays double line or heavy to one side:
1. Split tip or bent needle - Replace
2. Dirty tip or needle - Remove and clean
3. Tip not centered in head - Remove head and clean airbrush seat and tip seat then reassemble. Use wrench for head
Jammed trigger or poor trigger motion:
1. Lubricate needle and trigger - Apply lubricant to needle shaft and trigger slot area

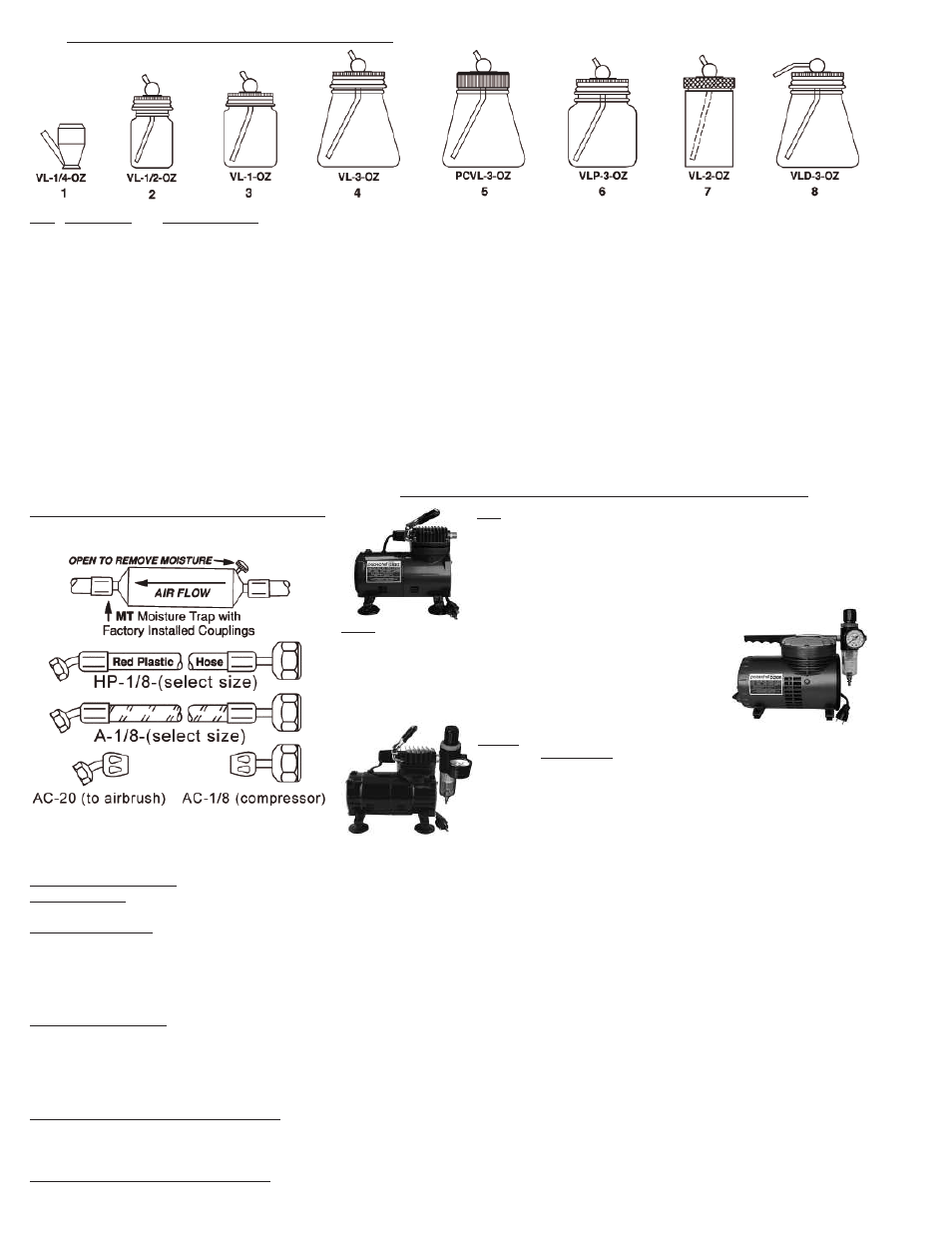

SI AIRBRUSH CUP & BOTTLE ASSEMBLIES
NO. PART NO. DESCRIPTION
1. VL-1/4-OZ Metal Color Cup (7cc)
2. VL-1/2-OZ Color Bottle Assembly (14.5cc)
VL1/2 1/2 oz. Cover Assembly
VF-17 Color Tube
3. VL-1-OZ Color Bottle Assembly (29cc)
VL1 1 oz. Cover Assembly
VF-17 Color Tube
5-G Gasket
4. VL-3-OZ Color Bottle Assembly (88cc)
VL3 3 oz. Cover Assembly
VF-14 Color Tube
3-JG Gasket
5. PCVL-3-OZ Nylon Cover/Metal Tube Bottle Assem. (88cc)
PCVL3 Nylon Cover Assembly
VF-14M Metal Color Tube
3-JG Gasket
6. VLP-3-OZ Plastic Bottle Assembly (88cc)
VL3 3 oz. Cover Assembly
VF-14 Color Tube
3-JG Gasket
7. VL-2-OZ Aluminum Cup Assembly (60cc)
VF-2-5/8 Color Tube
3-JG Gasket
8. VLD-3-OZ Decorator Bottle Assembly (88cc)
VLD3 3 oz. Cover Assembly
VF-14 Color Tube
3-JG Gasket
RECOMMENDED COMPRESSORS AND ACCESSORIES
HOSE, MOISTURE TRAP AND FITTINGS
D500 AiR CompRessoR (1/8 H.p.) (ETL Listed)
Economical and suitable for all airbrushes spraying properly thinned fluids. It is capable of
delivering up to 35 P.S.I. operating pressure depending on airbrush being used. The Paasche
D500 is an oilless piston compressor.
It operates on 110-120 Volt, 1 phase, 60Hz, and delivers .4 C.F.M. @ 20 P.S.I.
Shipping Weight: 8 lbs. (3.6kg)
D220R AIR COMPRESSOR (1/6 H.P.), with Switch & R-75 Regulator
Economical and suitable for all airbrushes spraying properly thinned fluids. It is
capable of delivering 30 - 45 P.S.I. operating pressure depending on airbrush
being used. The Paasche D220R is an oilless diaphragm unit and comes with the
R-75 Regulator/Filter with gauge. It operates on 110-120 Volt, 1 phase, 60Hz,
and delivers .7 C.F.M. @ 20 P.S.I. R75 Regulator will regulate up to 45 P.S.I.
depending on usage (intermittent or constant) and size of airbrush being used.
Shipping Weight: 11 lbs. (5kg)
DA300R AiR CompRessoR (1/6 H.P.)
with switch CSA approved & R-75 Regulator
1/8 H.P. Piston Compressor with Auto shutoff. Compressor shuts off when
airbrush is not in use. Operating pressure is 20 - 30 P.S.I. depending on airbrush
being used, delivers up to 35 psi. 120 VAC, 1 Ph, 60 Hz, 1.4 A, 20L/Min. (0.7CFM),
Noise 53dB, 1720 rpm.
Shipping Weight: 9.14 lbs. (4.6 kgs)
