2-2 Chapter 2: Hardware information

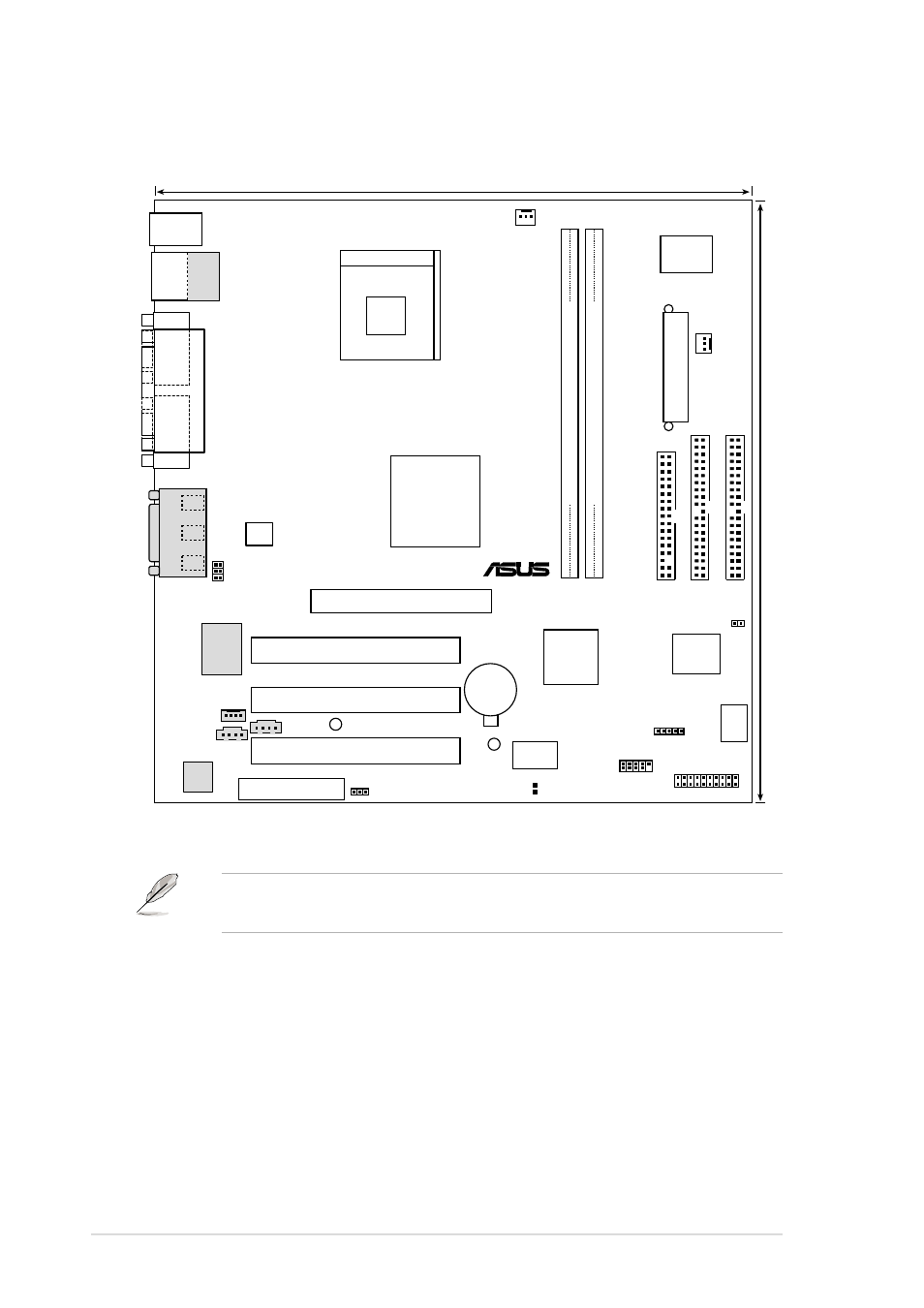

2.2 Motherboard layout
A
TX Power Connector
DDR DIMM2 (64/72 bit, 184-pin module)
2 3
DDR DIMM1 (64/72 bit, 184-pin module)
0 1
®
PS/2KBMS
T: Mouse
B: Keyboard
PANEL
FLOPPY SECONDAR
Y
IDE
PRIMAR
Y
IDE
Intel I/O
Controller
Hub
(ICH2) P4B266-M
CR2032 3V
Lithium Cell
CMOS Power
2Mbit
Firmware
Hub
ATX12V
Intel 845
Memory
Controller
Hub (MCH)
AUX
CPU_FAN
SW1801
USB1102
CD_IN
LED1
COM1
P
ARALLEL
PORT
COM2
MODEM
GAME_AUDIO
Mic
In
Line
Out
Line
In
SYS_FAN
HDDLED
24.4cm (9.60in)
24.4cm (9.6in)
Super
I/O
IR
AUD_EN1
CNR_SLOT
Realtek
R
TL8100
MIC_IN HP_OUT
ASUS
Mozart
CLRTC(R200A)
WARNING
Socket 478
Accelerated Graphics Port (AGP)
PCI1
PCI2
PCI3
USB1
USB2
Bottom:
RJ-45
Top:
Audio
Codec
The audio and LAN features are optional and are grayed out in the
above motherboard layout.
