MPCIE-3G

Page 4

Serial Interface

ASC0:

8-wire modem interface with status and control lines, unbalanced,

asynchronous

Adjustable baud rates: 1,200bps to 921,600bps

Autobauding: 1,200bps to 921,600bps

Supports RTS0/CTS0 hardware flow control.

Multiplex ability according to GSM 07.10 Multiplexer Protocol.

ASC1:

4-wire, unbalanced asynchronous interface

Adjustable baud rates: 1,200bps to 921,60bps

Supports RTS1/CTS1 hardware flow control

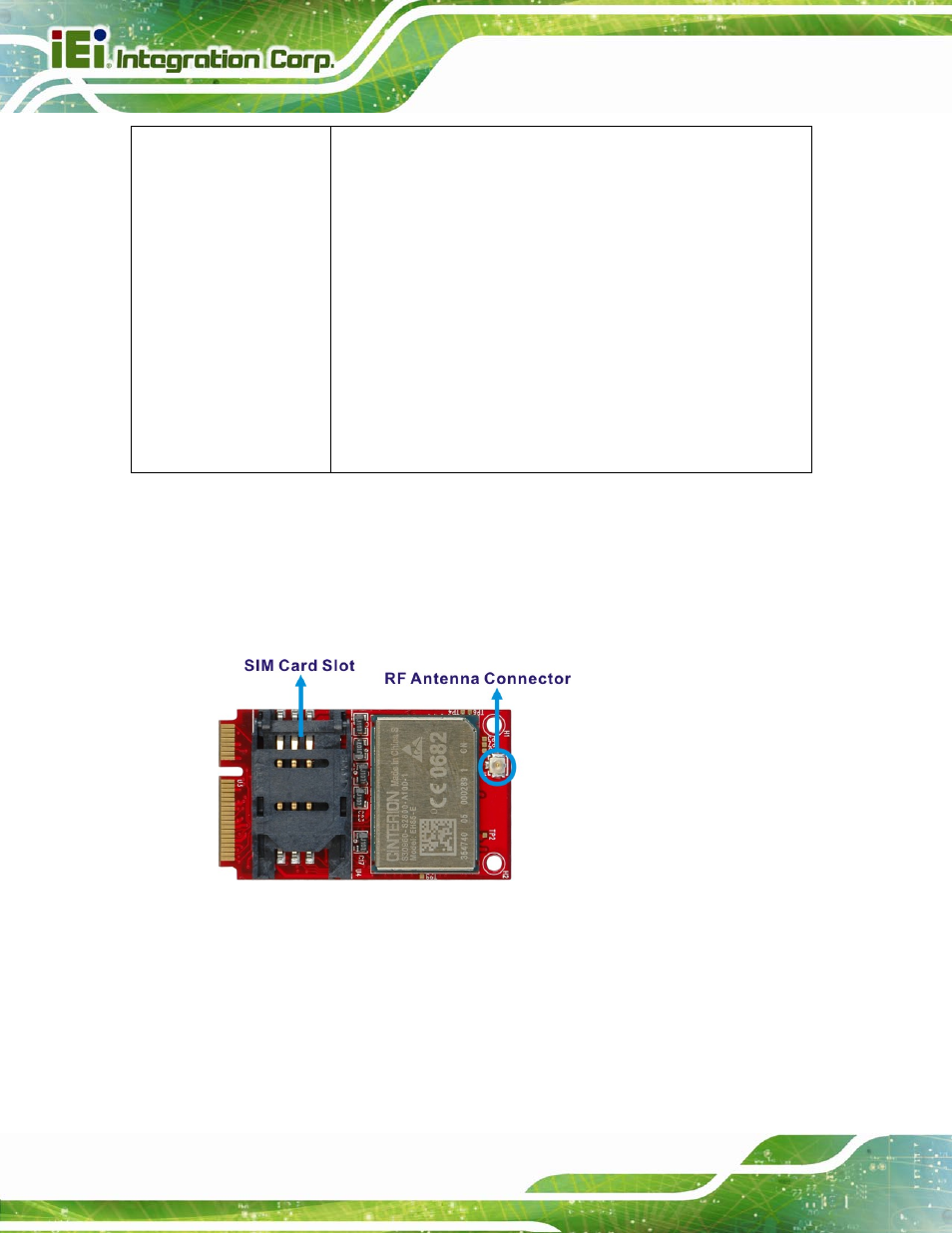

1.2 Hardware Installation

Step 1:

Install the MPCIE-3G card into the PCIe Mini full-size slot of the system. Please refer to

the system manual for the detail installation instruction.

Step 2:

Connect the RF antenna cable to the RF antenna connector on the MPCIE-3G.

Step 3:

Insert a SIM card into the SIM card slot on the MPCIE-3G.

Step 4:

Connect the GSM antenna cable to the RF antenna cable connector.

Step 5:

Power up the system.
