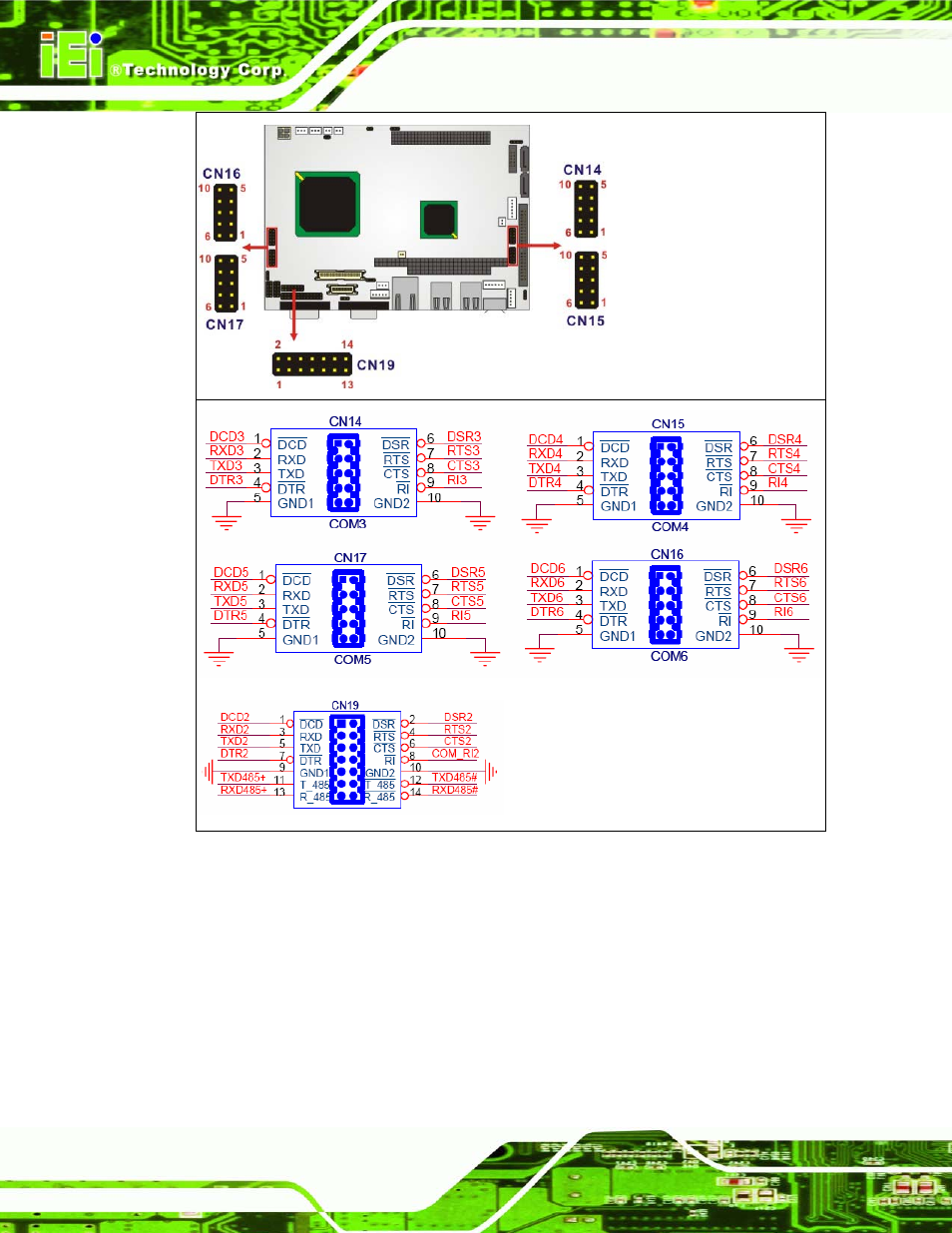

Figure 4-25 CN14, CN15, CN16, CN17, CN19 Connector Locations
4.2.24 TFT TTL LCD Connector
CN Label: CN22
CN Type: 40-pin headers (2x20 pins)
CN Pinouts: See Table 4-29
CN Location: See Figure 4-26
