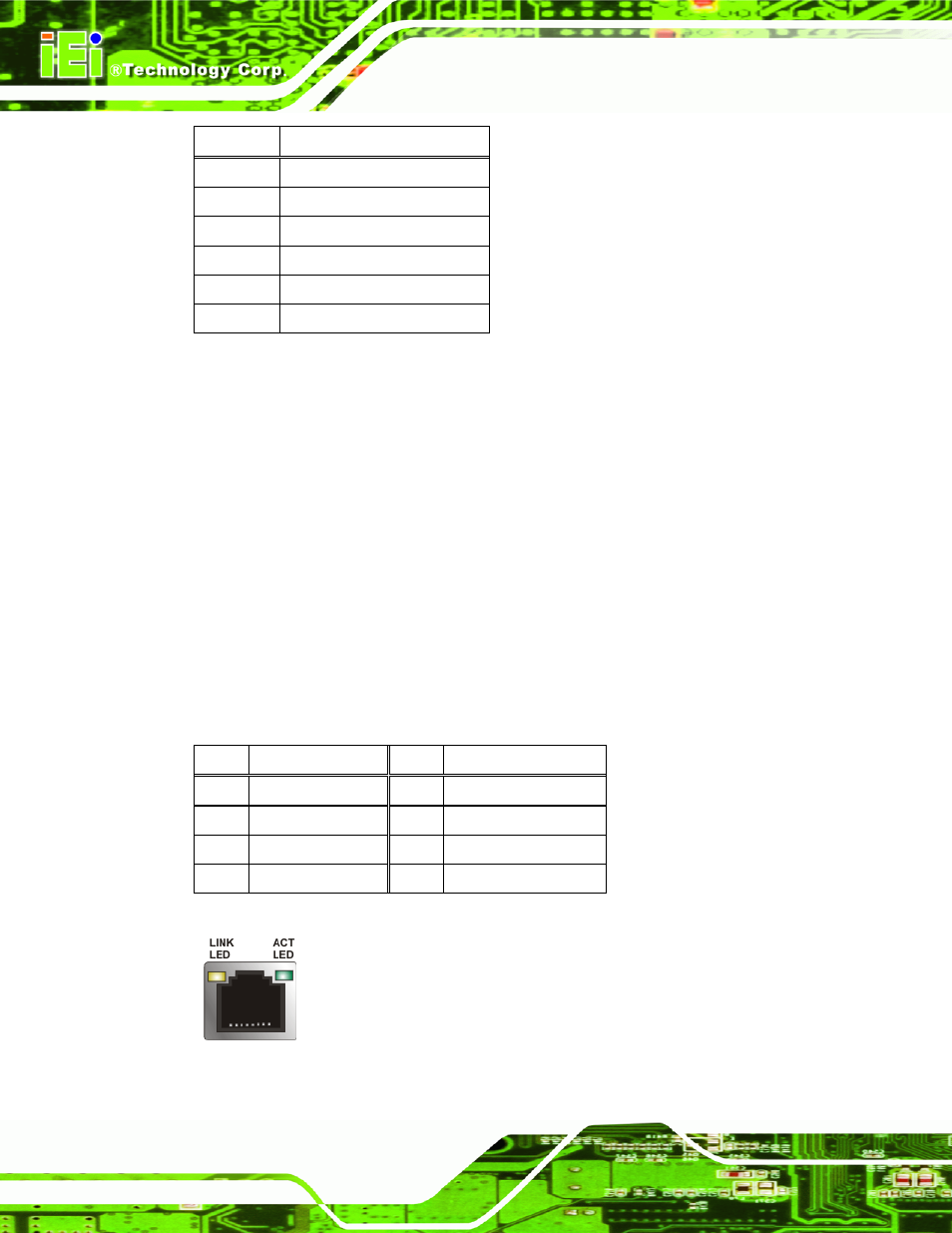

IMB-Q354 microATX Motherboard

Page 36

PIN DESCRIPTION

1 DATA

2 NC

3 GND

4 VCC5

5 CLK

6 NC

Table 3-19: PS/2 Connector Pinouts

3.3.3 LAN and Dual USB Connector

CN Label:

LAN1_USB01, USB23

CN Type:

RJ-45, USB 2.0

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-20

The IMB-Q354 is equipped one built-in RJ-45 Ethernet controller. The controller can

connect to the LAN through the RJ-45 LAN connector. There are two LEDs on the

connector indicating the status of LAN. The pin assignments are listed in the following

table:

PIN DESCRIPTION PIN DESCRIPTION

1 MDIA3-

5 MDIA1+

2 MDIA3+

6 MDIA2+-

3.

MDIA2-

7

MDIA0-

4.

MDIA1-

8

MDIA0+

Table 3-20: LAN Pinouts

Figure 3-21: RJ-45 Ethernet Connector
