IP-4S2A-RS-R40
4-Slot Backplane with 3 PCI Bus
User Manual Ver. 4.0

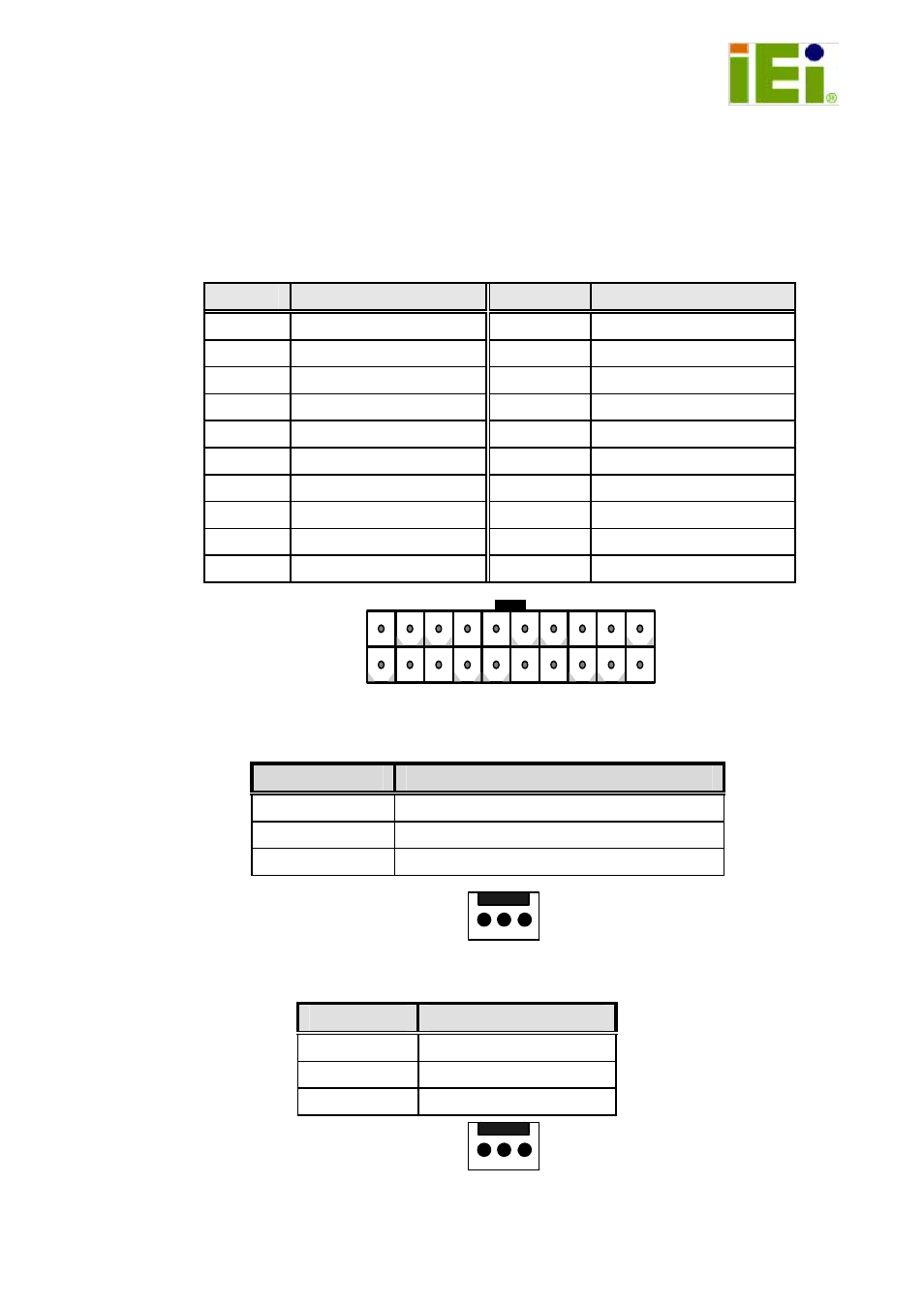

1. PW1: ATX Power Connector
１ １０
１１ ２０
2. CN2: Backplane to Mainboard ATX power control connector
1 2 3
3. CN1, CN5: Fan Connector
1 2 3
Jan. 21, 2008
Pin Description Pin Description
1 +3.3Vdc 11 +3.3Vdc
2 +3.3Vdc 12 -12Vdc
3 GND 13 GND
4 +5Vdc 14 PS-ON
5 GND 15 GND
6 +5Vdc 16 GND
7 GND 17 GND
8 PWR-OK 18 -5Vdc
9 +5VSB 19 +5Vdc
10 +12Vdc 20 +5Vdc
Pin Description
1 GND
2 PSON#
3 5VSB
Pin Description
1 GND
2 +12V
3 NC
