7. CN6, CN8: Power Connector
Pin Description
1 +5V
2 +5V
3 +5V
4 GND
5 GND
6 GND
1 2 3 4 5 6
▓ ● ● ● ● ●

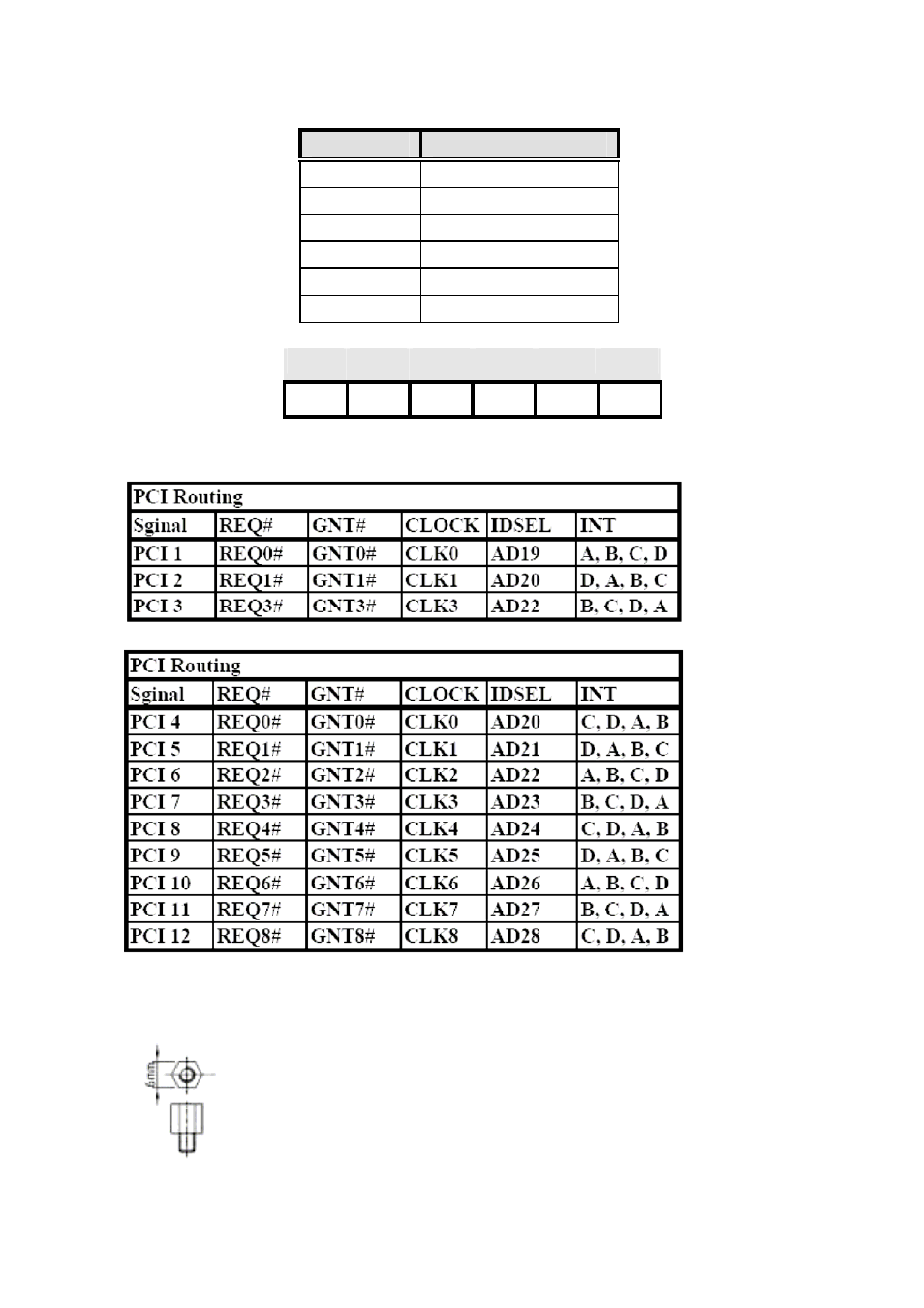

8. PCI routing table:
9. Notice:
Recommend to use 6mm width spacer to install
b. Torsion must less than 6lb-inch
