2

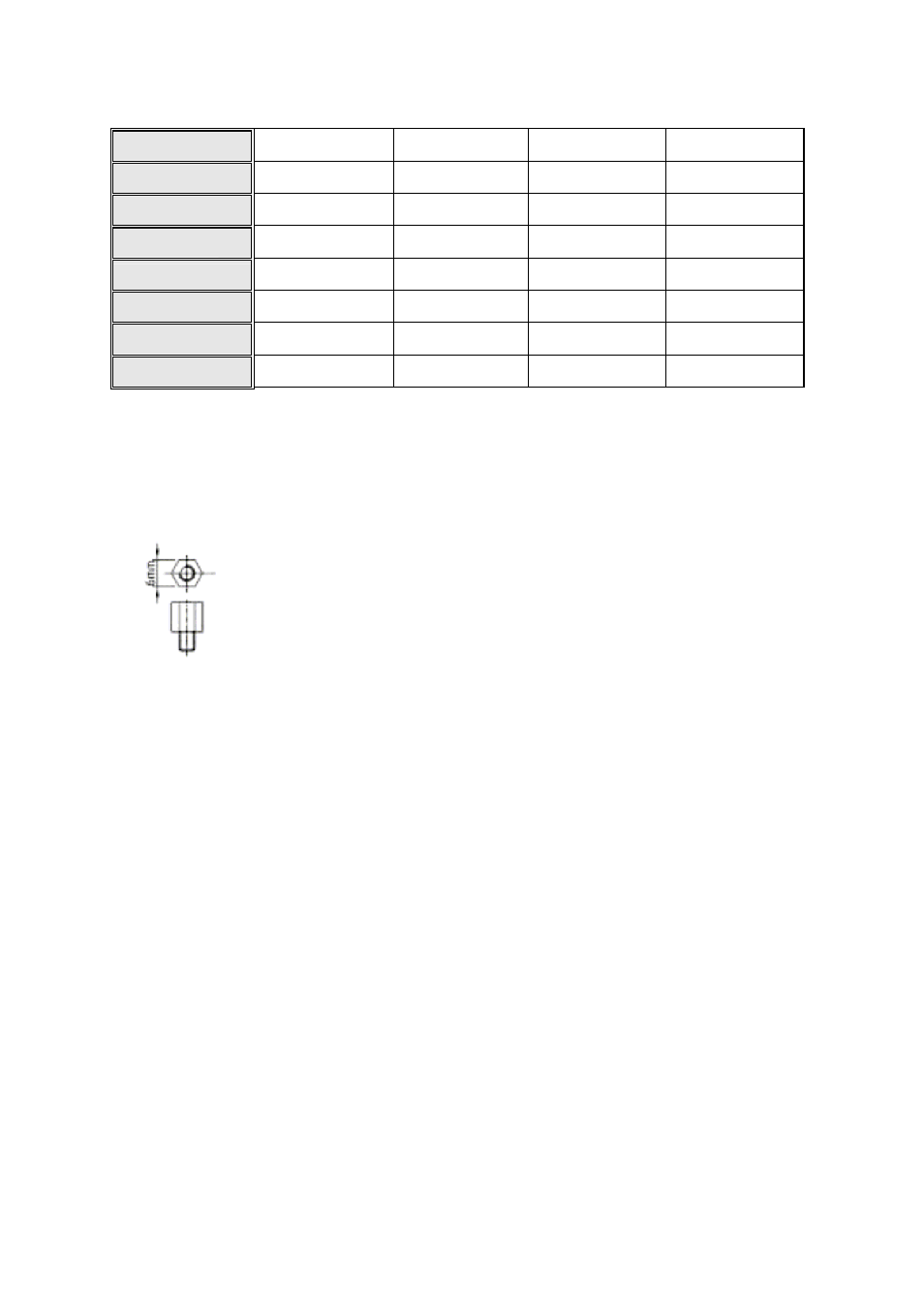

4. PCI routing table:

PCI SLOT

PCI1

PCI2

PCI3

PCI4

IDSEL

AD31

AD30

AD29

AD28

REQ#

REQ0#

REQ1#

REQ2#

REQ3#

GNT#

GNT0#

GNT1#

GNT2#

GNT3#

INTA

B C D A

INTB

C D A B

INTC

D A B C

INTD

A B C D



5. Notice:

a. Recommend to use 6mm width spacer to install


b. Torsion must less than 6lb-inch
