-5-

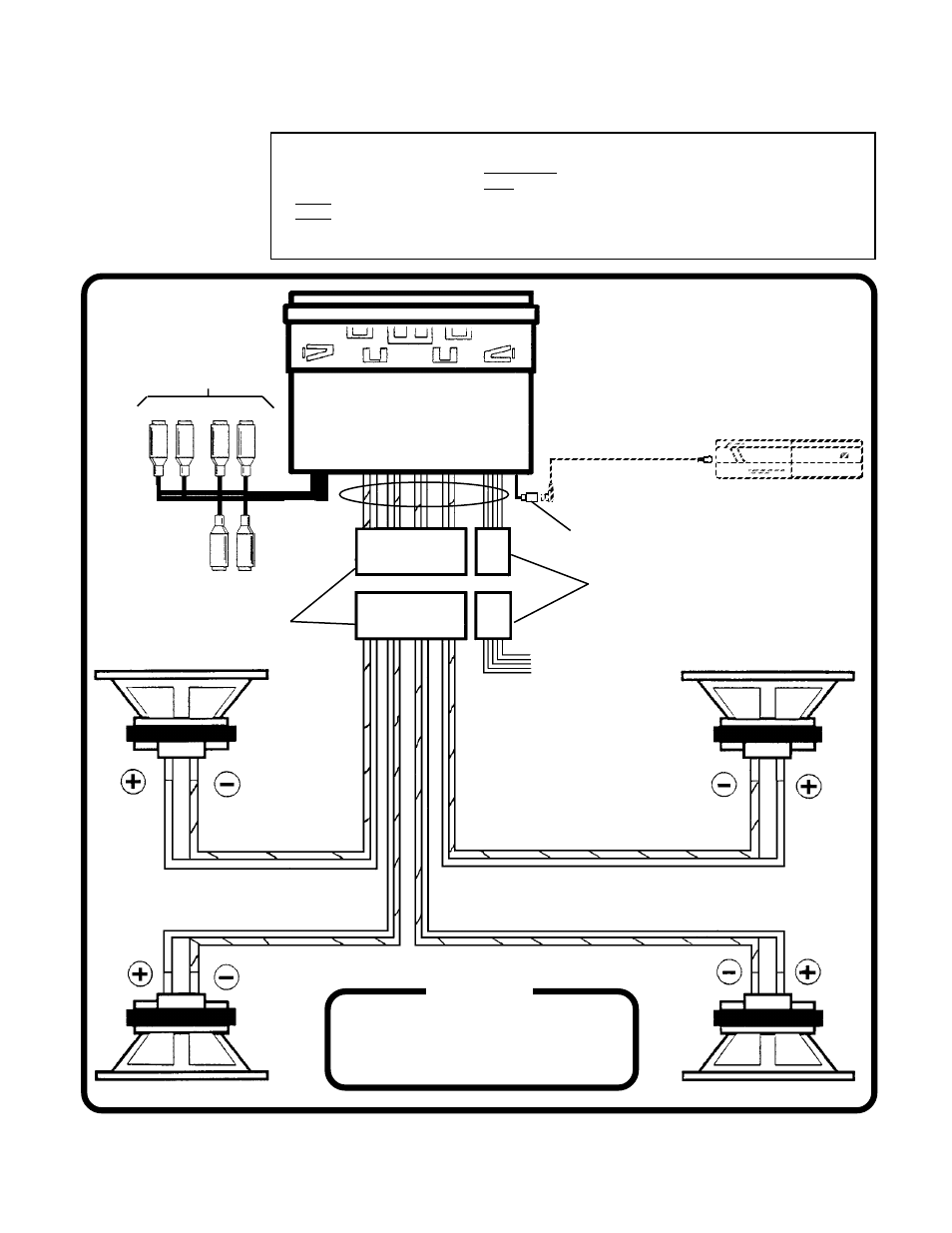

SPEAKER WIRING SPEAKER WIRING SPEAKER WIRING SPEAKER WIRING SPEAKER WIRING
REFER TO PAGE 4
FOR RADIO WIRING
WARNING!
l THE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS.
l NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS.
l NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
l FAILURE TO WIRE EXACTLY AS SHOWN BELOW MAY CAUSE ELECTRICAL
WHITE w/BLACK STRIPE
WHITE
LEFT FRONT SPEAKER RIGHT FRONT SPEAKER
LEFT REAR SPEAKER RIGHT REAR SPEAKER
GREEN
GRAY w/BLACK STRIPE
9-PIN PLUGS
GREEN w/BLACK STRIPE VIOLET w/BLACK STRIPE
RADIO
GRAY
VIOLET
4-PIN PLUGS
SEE PAGE 4 FOR RADIO
WIRING
8-PIN DIN SOCKET FOR CONNECTION TO OPTIONAL CD
CHANGER
6
COMP ACT
DIN CABLE (SUPPLIED
WITH CD CHANGER).
OPTIONAL
CD CHANGER
NOTE: THIS RADIO WILL CONTROL PRESTIGE CD CHANGER
MODEL SP-11CDP. CHECK WITH YOUR PRESTIGE AUDIOVOX CAR
STEREO SPECIALIST OR CALL 1-800-645-4994 FOR RECOMMENDA-
TIONS OF OTHER MODELS THAT WILL WORK WITH YOUR RADIO.
RCA LINE JACKS
FOR USE WITH
OPTIONAL EXTERNAL
AMPLIFIERS
2CH LINE IN 4CH LINE OUT
LINE IN/ OUT (LEFT) = WHITE
LINE IN.OUT OUT (RIGHT) = RED
8:30am - 7:00pm Eastern
9:00am - 5:00pm Eastern
1-800-645-4994
Monday - Friday
Saturday
HELP!
