2

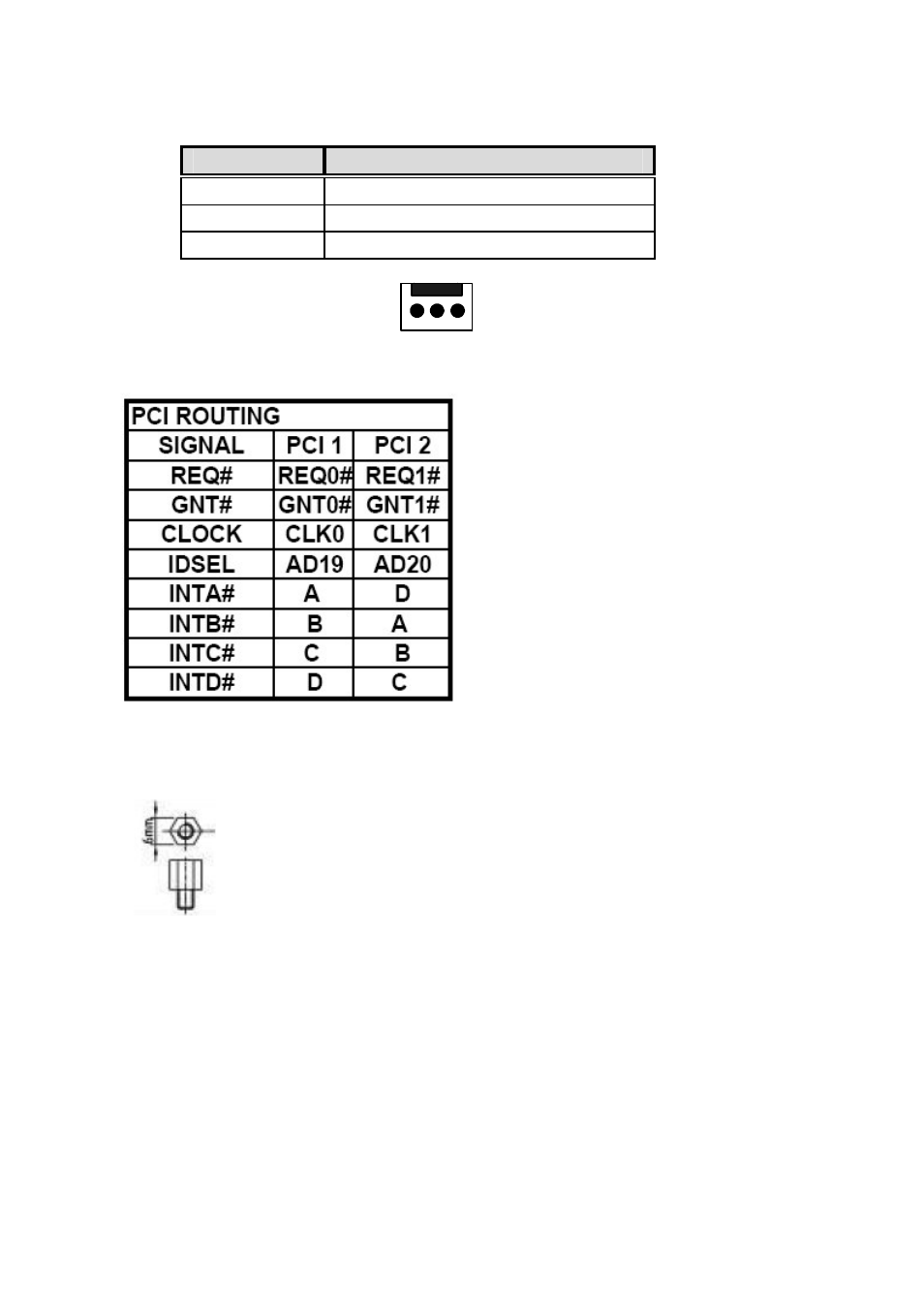

3. ATXCTL1: Backplane to Mainboard ATX power control Connector

¢

£

¤

4. PCI routing table:

5. Notice:

Recommend to use 6mm width spacer to install

b. Torsion must less than 6lb-inch

Pin

Description

1

GND

2

PSON#

3

5VSB
