3

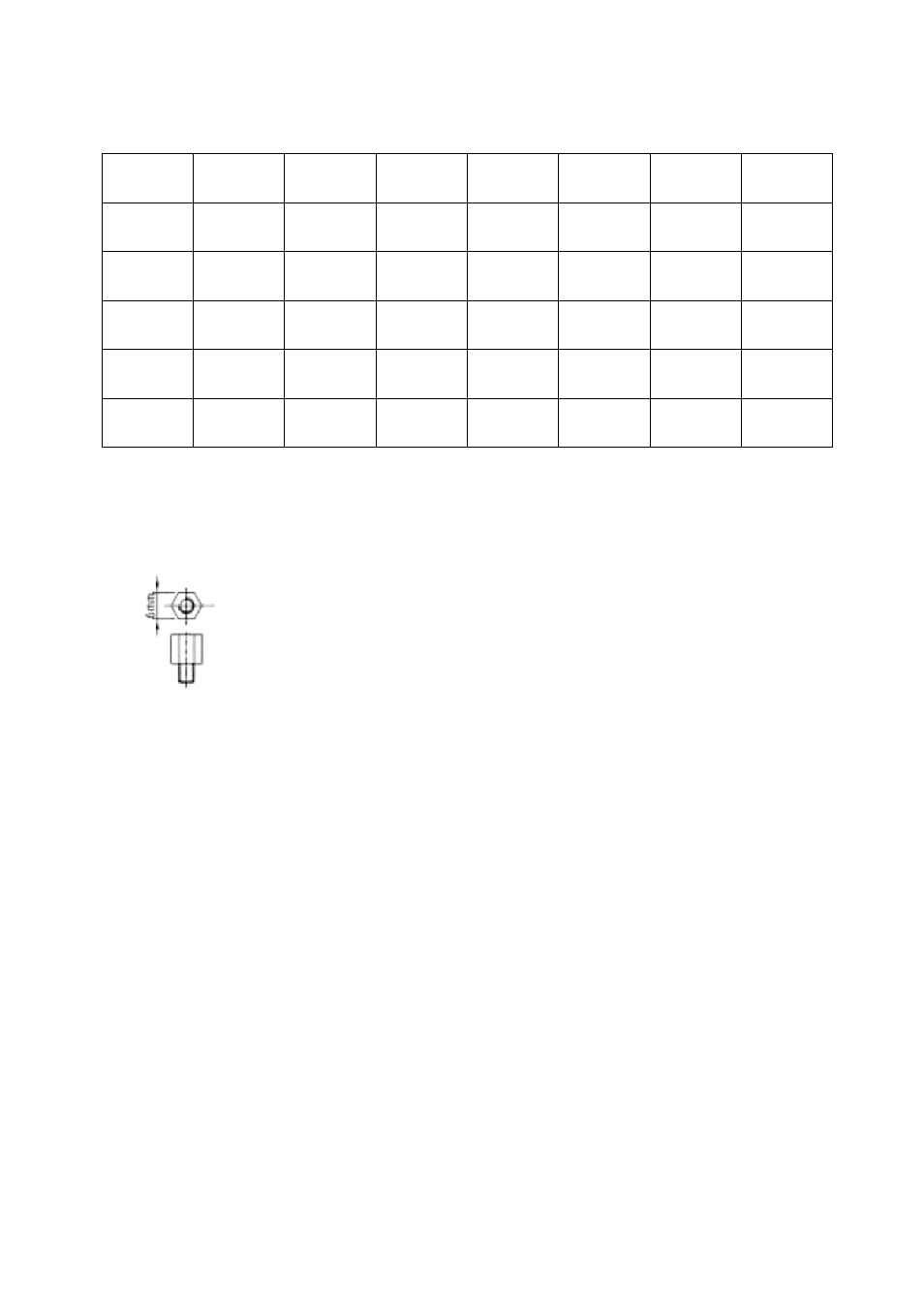

10. PCI routing Table:
SIGNAL REQ# GNT# IDSEL INTA# INTB# INTC# INTD#
PIN No. B18 A17 A26
A6 B7 A7 A8
PCI1 REQ0# GNT0# AD31
B C D A
PCI2 REQ1# GNT1# AD30
C D A B
PCI3 REQ2# GNT2# AD29
D A B C
PCI4 REQ3# GNT3# AD28
A B C D
11. Notice:
a. Recommend to use 6mm width spacer to install
b. Torsion must less than 6lb-inch
