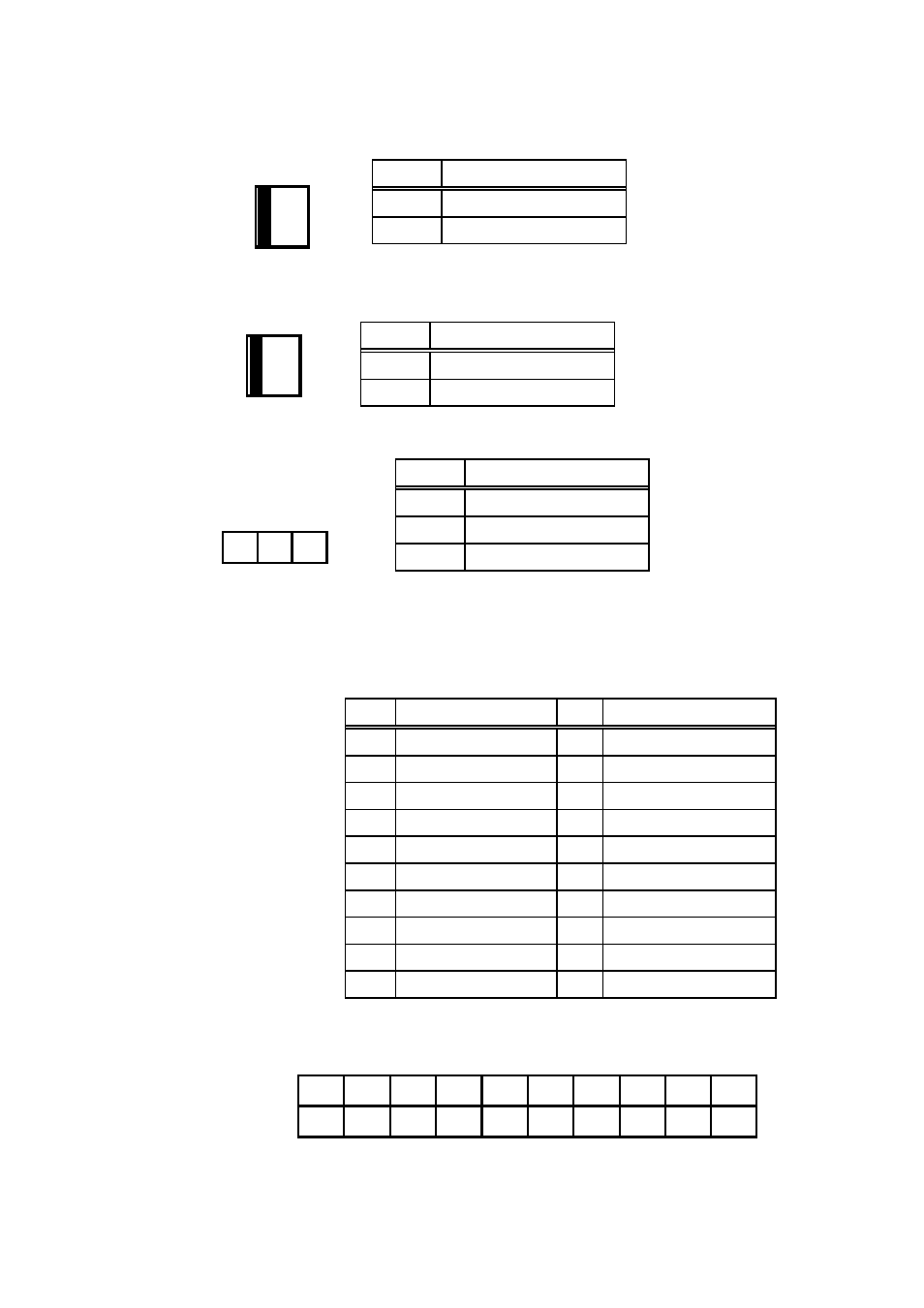

6.PWRGD : Power Good Connector
7. SM-BUS : External System Management BUS Connector
2 ●
1 ■
8. CN1 : PCIE X16 SDVO Control Signal Pin
9. IOPWR : The I/O Power Connector indicators for controlling your
CPU board.
2 ●
1 ■
1 2 3
■ ● ●
PIN DESCRIPTION
1 GND
2 PWRGD
PIN DESCRIPTION
1 SMDAT
2 SMCLK
PIN DESCRIPTION
1 EXP_EN
2 SDVO_CLK
3 SDVO_DAT
PIN DESCRIPTION PIN DESCRIPTION
1 GND 2 -12V
3 +12V 4 GND
5 IPMB_DA 6 5VSB
7 GND 8 GND
9 IPMB_CL 10 5VSB
11 +5V 12 PWRGD
13 SMDAT 14 SHB_RST#
15 5VSB 16 GND
17 SMCLK 18 PSON#
19 +3.3V 20 PWRBT#
19 17 15 13 11 9 7 5 3 1
● ● ● ● ● ● ● ● ● ■
● ● ● ● ● ● ● ● ● ●
20 18 16 14 12 10 8 6 4 2
