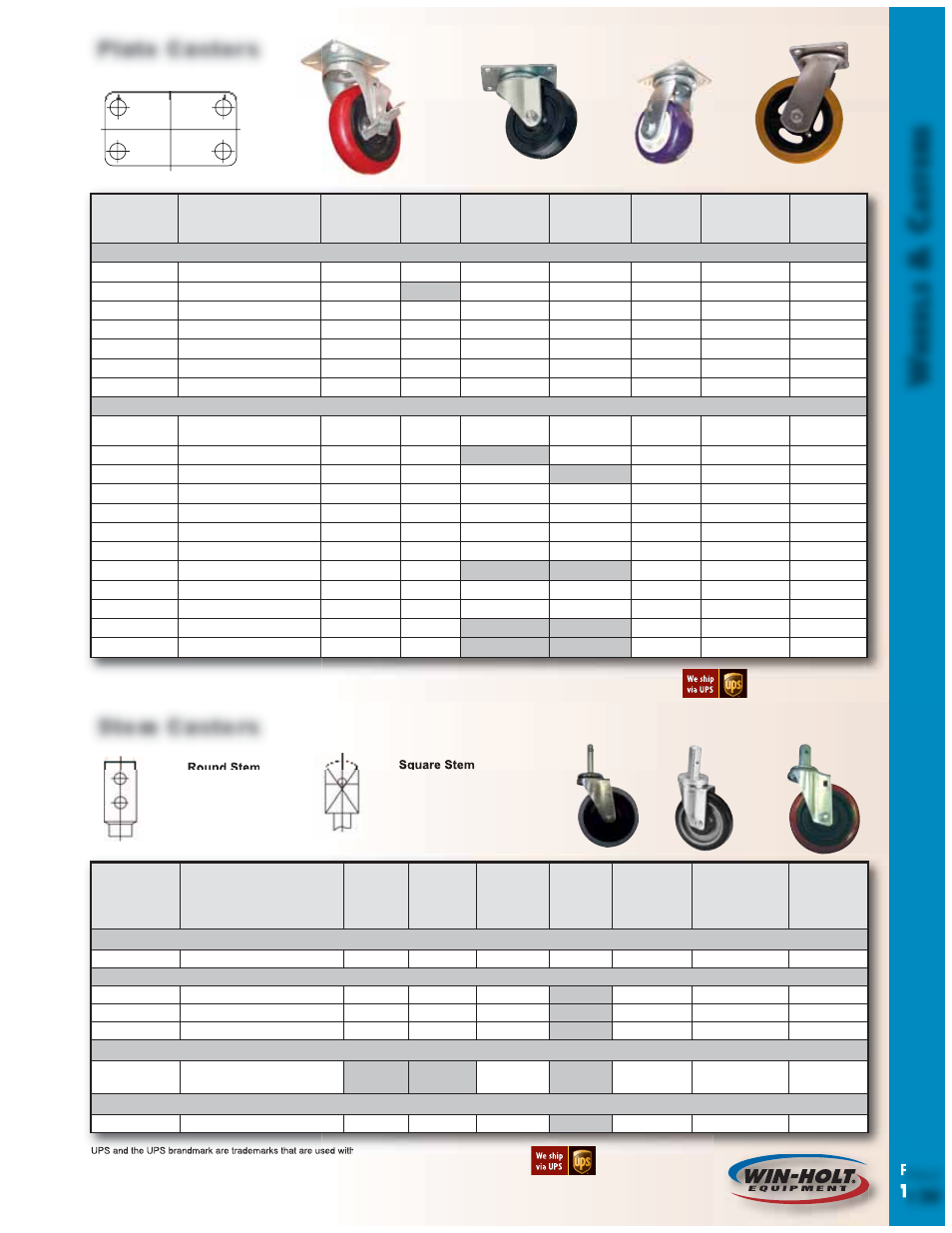

W
HEELS
& C
ASTERS
Square Stem
27 /
32
" x 2 ½ " with 13 /
64
"
or
13 /
32
" hole 1 ¼ " above
upper cup.
Round Stem
3 /
16
" x 1 9 /
16
" with two
cross drilled 5 /
16
"
holes.
Wheel
Dimensions
Material Bearing
Wheel
Model#
Swivel
Caster
Model#
Rigid
Caster
Model#
Rolling
Cap Per
Wheel
Temp
Range
Hardness
Rating
Plate Dimensions 3 1/8” x 4 1/8”
3" x 1.25"
Rubber
Nylon
7111 7317 749
210 lbs. -30 to +160 75(+/-5)D
3 1/4” x 1 1/2”
Polyurethane
Nylon
303SPPCW 303RPRCW
210 lbs. -30 to +180 95(+/-5)A
4" x 1.25"
Polyurethane
Ball
7125 7351 7418
275 lbs. -30 to +180 95(+/-5)A
4" x 1.25"
Rubber
Nylon
716 732 742
225 lbs. -30 to +160 75(+/-5)D
5" x 1.25"
Polyurethane
Ball
7112 738A 743A
400 lbs. -30 to +180 95(+/-5)A
5" x 1.25"
Rubber
Nylon
718 738 743
200 lbs. -30 to +160 75(+/-5)D
5" x 1.25"
Polyolefin
Plain
717 739 744
300 lbs. -20 to +180 85(+/-5)D
Plate Dimensions 4” x 4 1/2”
5" x 2"
Mold on Rubber-
Polyurethane Cage Roller
7123 7321CBZ 7451
1,000 lbs. -30 to +180 55(+/-5)D
5" x 2"
Mold on Rubber
Cage Roller
7113 745CBZ
375 lbs. -30 to +160 75(+/-5)A
5” x 2”
Polyurethane
Cage Roller
7128 7318
250 lbs. -30 to +180 95(+/-5)A
6" x 2"
Mold on Rubber
Cage Roller
7115 7313 7465
1,200 lbs. -30 to +180 55(+/-5)D
6" x 2"
Mold on Rubber
Cage Roller
711 7324CBZ 7462
410 lbs. -30 to +160 75(+/-)A
6” x 2”
Polyolefin
Cage Roller
7120 73111 7412
700 lbs. -20 to +180 85(+/-5)D
6” x 2”
Phenolic
Cage Roller
7119 7311BK 746
1,200 lbs. -45 to +250 85(+/-5)D
6” x 2”
Polyurethane
Cage Roller
7129
800 lbs. -30 to +180 95(+/-5)A
8" x 2"
Mold on Rubber
Cage Roller
7116 73161 7471
1,400 lbs. -30 to +180 55(+/-5)D
8" x 2"
Mold on Rubber
Cage Roller
712 7316 7411
500 lbs. -30 to +160 75(+/-)A
8” x 2”
Phenolic
Cage Roller
7114
1,400 lbs. -45 to +250 85(+/-5)D
8” x 2”
Polyurethane
Cage Roller
7130
900 lbs. -30 to +180 95(+/-5)A
Plate Casters
Freight Class:65
Stem Casters
Wheel
Dimensions
Material Bearing
Wheel
Model#
Swivel
Stem
Caster
Model#
Rigid
Stem
Caster
Model#
Rolling
Cap Per
Wheel
Temp
Range
Hardness
Rating
Round Stem
5" x 1.25" Polyurethane Heavy Duty Ball 71121 7548 7537 500 lbs. -30 to +180 95(+/-5)A
Square 13/64 Stem
5" x 1.25" Polyurethane Ball 7112 757 400 lbs. -30 to +180 95(+/-5)A
5" x 1.25" Rubber Nylon 718 753 200 lbs. -30 to +160 75(+/-5)D
5" x 1.25" Polyolefin Plain 717 751 300 lbs. -20 to +180 85(+/-5)D
Grip Ring Stem
4"
Superglide Thermo Plastic
Rubber Wheel 750 110 lbs. -30 to +160 75(+/-5)A
Threaded Stem
5" x 1.25" Polyurethane Heavy Duty Plain 71121 756 500 lbs.
Freight Class:65
