3. Pin Assignment
This chapter provides the information on the pin assignments and signal descriptions. Table 3-1 lists the
pin assignments with respective signal names for the 10-pin configuration.

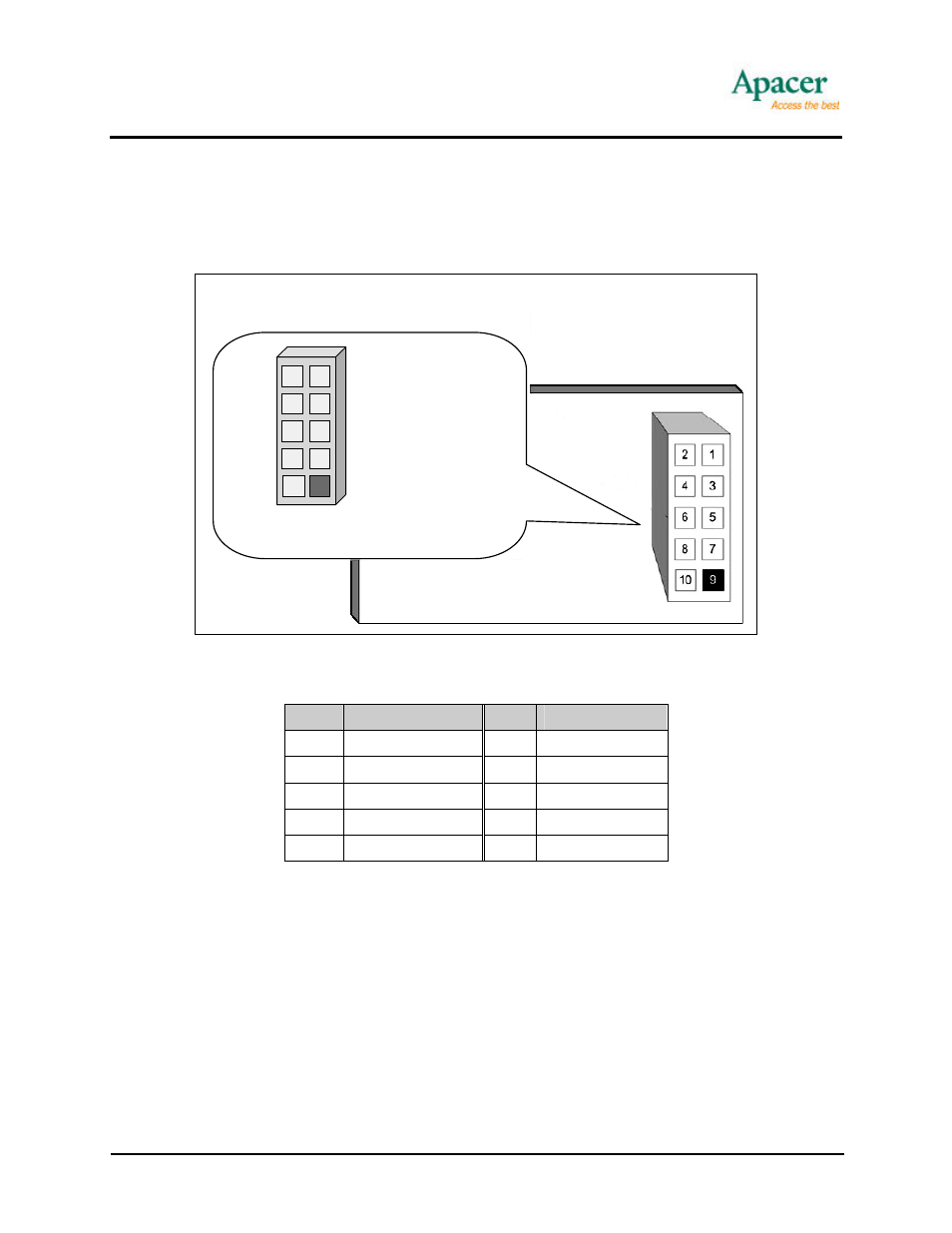

Table 3-1: Pin Assignment of the 10-pin configuration
Pin
Signal
Pin
Signal
1
+5V
2
N.C
3
USB D-
4
N.C
5
USB D+
6
N.C
7
GND
8
N.C
9
Key (Blocked)
10
N.C
1
2
3
4
5
6
7
8
9
10
NC
NC
NC
NC
NC
+5V DC input
USB D ─
USB D ┼
GND
KEY (Blocked)
Connector Pin define
Pin Definition
