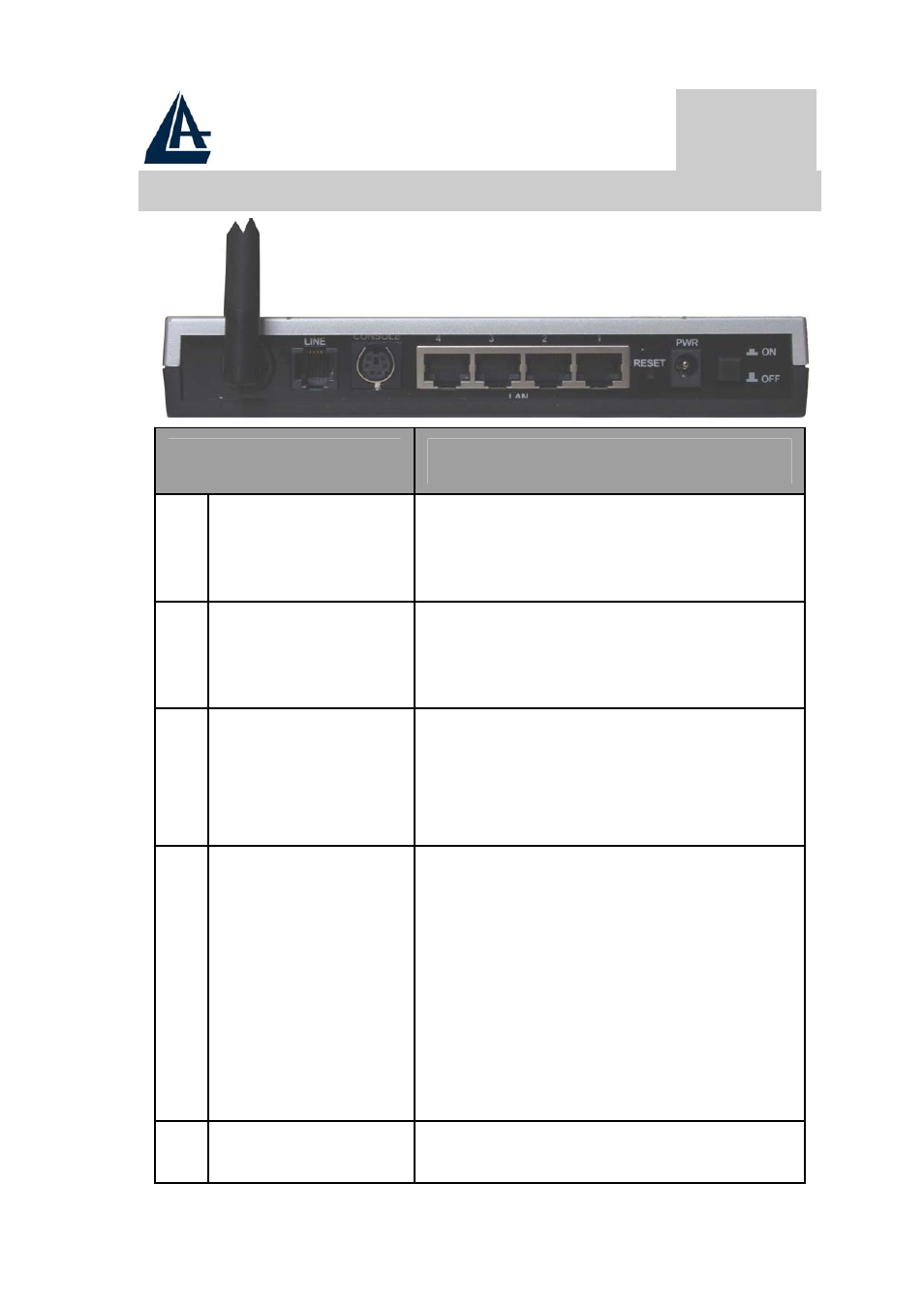

1.3 The Rear Ports
Port Meaning
1 LINE (RJ11)
Connect the supplied RJ-11 cable to this port
when connecting to the ADSL/telephone
network.
2 PS2
Connect a RS-232 cable to this port when
connecting to a PC’s RS-232 port (9-pin
serial port).
3 LAN
(4 * RJ-45)
Connect an UTP Ethernet cable to one of the
four LAN ports when connecting to a PC or
an office/home network of 10Mbps or
100Mbps.
4 RESET
After the device has turned on, press it to
reset the device or restore to factory default
settings. The operation is as below:
0-3 seconds: reset the device
3-6 seconds: no action
6 seconds or above: seconds or above:
restore to factory default settings (this is
used when you can not login to the router,
e.g. forgot the password)
5 POWER (jack)
Connect the supplied power adapter to this
jack.
