VIAIR Flat Surface Mounting Bracket - Manual

LED Light Bar
Mounting Bracket
Rev. 7
5mm Wide
LED Light Bar Mounting Bolt (x1)
• Black Stainless Steel Hardware
• 3mm Delrin Washer Between Side Cap and Mounting Bracket (x2)
• M8 bolt size (12 pt.)
• 15mm Shoulder (Non Threaded)
• 1.25mm thread pitch
• 55mm long, measured from bottom of bolt flange
• Serrated on bottom of bolt flange
NOTE: Diameter of bolt flange MUST match diameter of raised portion on bracket. Represented as “X” measurement.
Mounting Bracket Bolts (x2)
• Black Stainless Steel Hardware
• 3mm Delrin Washer Between Side Cap and Mounting Bracket (x4)
• Washer (x4)
• Flanged locking nuts (x4)
• M6 bolt size (x4)
• 1.25mm thread pitch
• 8mm long, measured from bottom of bolt flange
Mounting Bracket
• Die Casted Aluminum
• Powdercoated Black

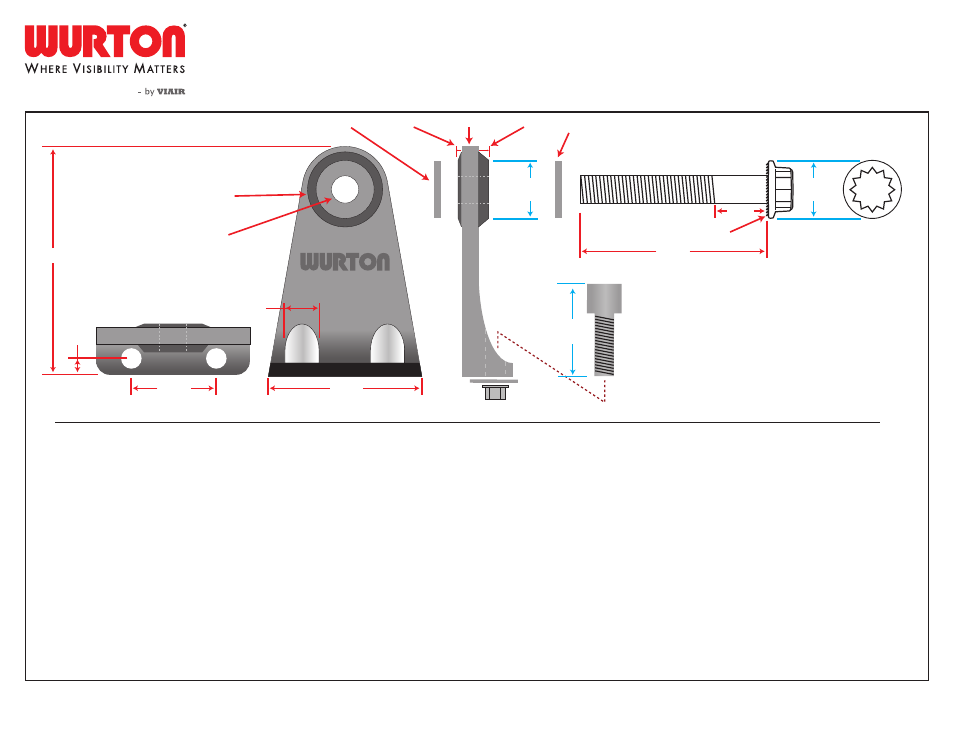

Top View Front View Side View
LED Light Bar Mounting Bolt (x1)
3mm Wide Delrin Washer 3mm Wide Delrin Washer
3mm Wide
Serrated
1mm Wide
8mm Through Hole
Mounting Bracket Bolts (x2)
22mm Diameter
55mm
10mm
15mm
5mm
67mm
“X”
17mm??
“X”
17mm??
2.54mm
28mm 45mm
