Limited warranty – VIAIR Ultra Duty OBA User Manual
Page 11
USER MANUAL
LIMITED WARRANTY:
VIAIR Corporation warrants this product, when properly installed and under normal conditions of use, to be
free from defects in workmanship and materials for a period of one year from its original date of purchase.
To receive warranty service or repair, please contact VIAIR Corporation.
Returns should be made within one year of the date of purchase, after a Return Goods Authorization
(RGA) number has been assigned by VIAIR Corporation. To obtain RGA, fax a copy of your receipt to
(949) 585-0188. For complete warranty details, please visit:
www.viaircorp.com/warranty
PLEASE NOTE:
THIS WARRANTY COVERS PRODUCT DEFECTS ONLY; IT DOES NOT COVER INCIDENTAL
OR CONSEQUENTIAL DAMAGES AS RESULT OF MISUSE OR ABUSE.
15 EDELMAN • IRVINE, CA 92618
TEL: (949) 585-0011 • FAX: (949) 585-0188
www.viaircorp.com
P/N 10003, 10005, 10007, 20001

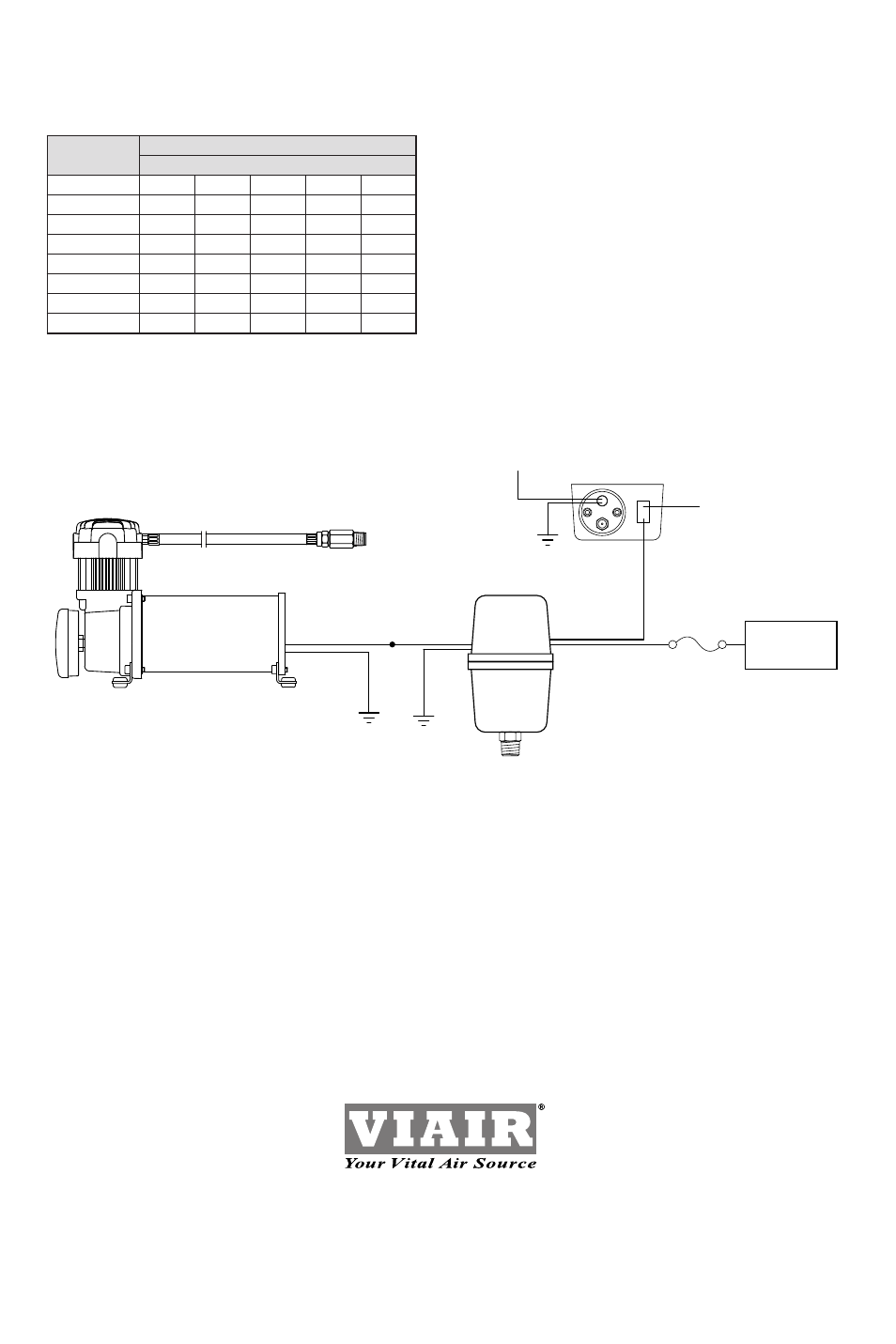

COMPRESSOR WIRING DIAGRAM
(with combination pressure switch / relay)
15 Edelman
Irvine, CA 92618
949-585-0011
www.viaircorp.com
+
-
Battery
To Keyed
Power Source
To Lamp Circuit
Dash Panel
Large Red
Small Red
White
Black
Fuse
Rev.1
WIRE GAUGE GUIDE 12-VOLT:
Amp Draw
Length of wire from battery to compressor
10
15
20
25
30
10
14
12
10
10
10
15
12
10
10
8
8
20
10
10
8
6
6
25
10
8
6
6
6
30
10
8
6
6
4
40
8
6
6
4
4
50
6
6
4
4
2
60
6
4
4
2
2
Wiring Diagram:
(Figure 2)
ULTRA DUTY ONBOARD AIR SYSTEM
