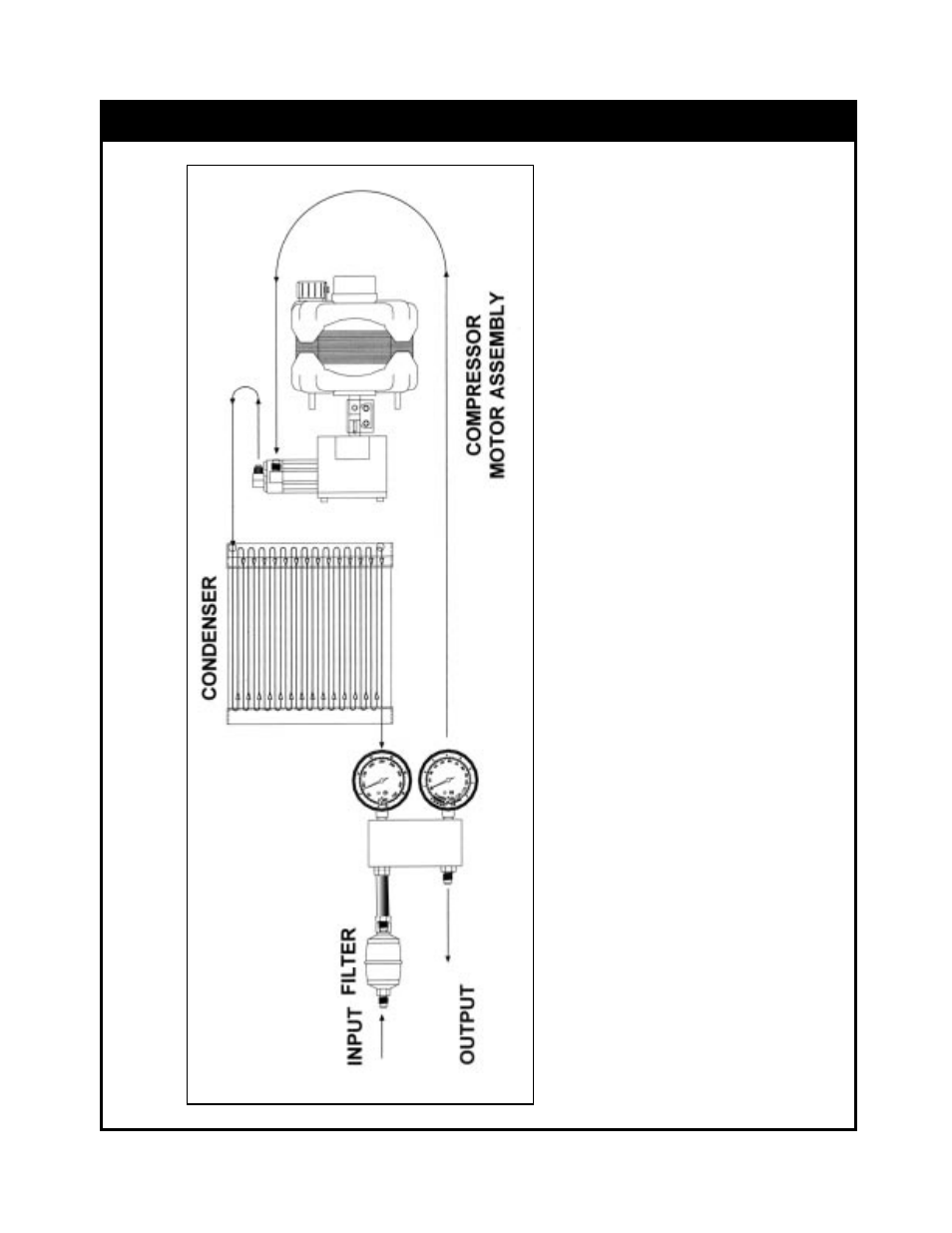

REFRIGERANT FLOW DIAGRAM
NOTE:
A
filter must always be used.
F
ailure to use a filter will in
v
alidate y
our warranty
.
The use of a filter will greatly reduce the risk of damage to your
25150B
by preventing foreign material from
entering the unit. Special consideration for filtration must be given when you know you are servicing a machine that has “Burned Out.” W
e
recommend the use of two size 162 filter driers, in line, to be used for that job and that job
only
.
15
