Operating Your TERK TV2
Passive Indoor Antenna
For VHF and UHF:
1. Switch video selector switch to “ANTENNA”.
2. Tune your TV to the desired station.
3. For best results on channels 2 through 6, extend the
antenna elements to their full length and horizontal
positions. For channels 7 through 13, shorten the
antenna elements and place at "V" angle as required.
4. Adjust the “amplification” knob for the best picture
and sound.
For Video Games and Other Video Components:
1. Attach the coaxial cable from your satellite, cable, or
video game adapter to the video input on your TV2.
Ensure a tight fit to avoid interference.
2. Switch the video selector switch to “VIDEO” for
operation.
3. To connect a DVD player, VCR or video game system
to a television that is not equipped with A/V jacks, you
will need to obtain one of TERK’s RF modulators.
Please Note:
1. Late model televisions have on-screen menu controls
for viewing VHF/UHF “Off-Air” or cable broadcasts.
Please ensure that this menu control is at the proper
“Off-Air” position.
2. Do not place your TV2 near large metal objects or
appliances that would create interference.
3. Do not bend the antenna rods or loop.
TV2
4
Installing Your TV2
(continued)

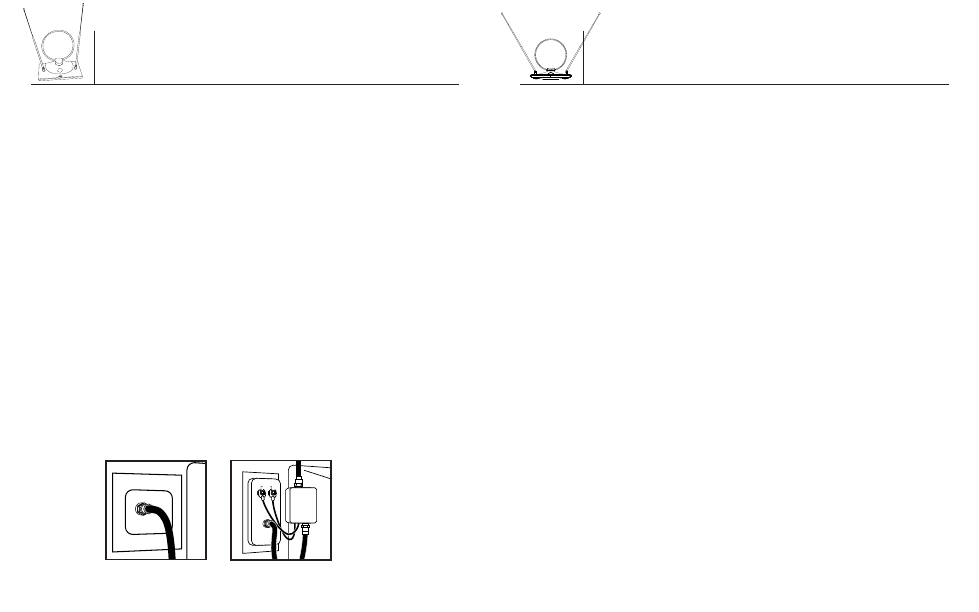

There are two ways to connect your TV2. This will depend
on your model of television.
For Televisions with One 75 Ohm Input
for VHF and UHF:
1. Connect the coaxial cable from your TV2 to the
“F” connector input marked VHF/UHF on your TV.
See Fig.1.
For Televisions with Separate 75 Ohm
VHF and UHF Inputs:
1. Attach the band separator (not included) to the coaxial
cable attached to the back of your TV2.
2. Screw in the VHF connector from the band separator to
the VHF input on your TV or VCR.
3. Attach the 300 ohm twin wire from the band separator
to the two screws marked UHF. See Fig. 2.
TV2
3 VHF/UHF
Fig. 1
VHF
UHF
Fig. 2
Band
Separator
