16CH Network Video Server Quick Installation Guide
nVS-16 Slim

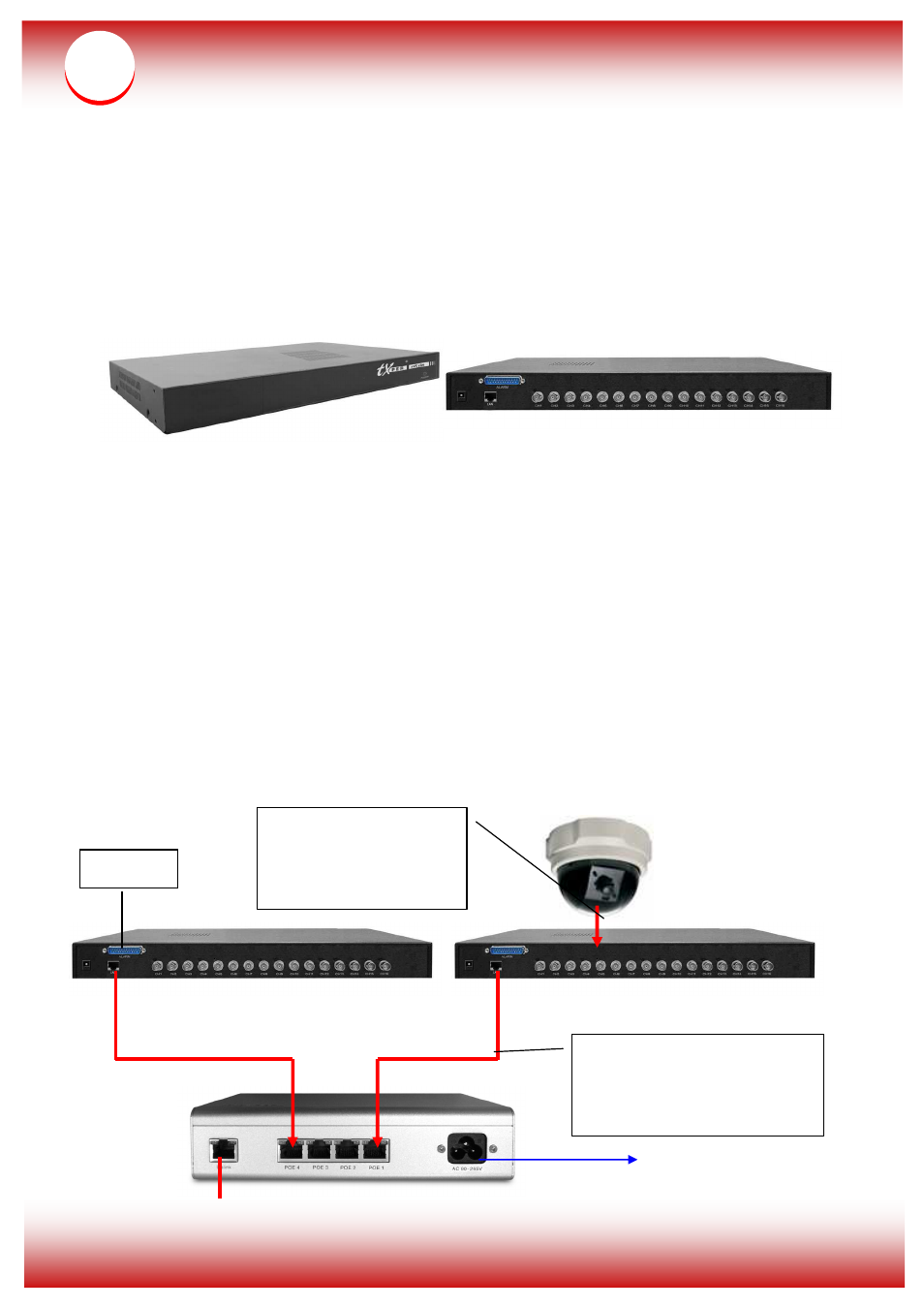

- Product Front View Product Rear View
Notes:
* nVS- 16 slim doesn’t support POE function. Thus, please input the DC12V, 1.2A (min)
electric power in the DC12V In (pin-3) and Gnd (pin-4).
* Please use the CAT-6 RJ-45 cable to connect each Telexper devices.
* Please use the 75 Ω Ω Ω Ω coaxial video cable connecting the camera to the video server.
* The DC12V Output at pin-5 provides the max 8W electric power.
* The effective distance away from the PoE Hub is 100 meters.
IP CCTV Solution Configuration
Connect the nVS by
using the CAT-6 RJ-45
cable to PoE Hub
Power Cord
Uplink to network
Connect Cameras by
using the 75
Ω Ω Ω Ω
coaxial video cable
to nVS Alarm In
