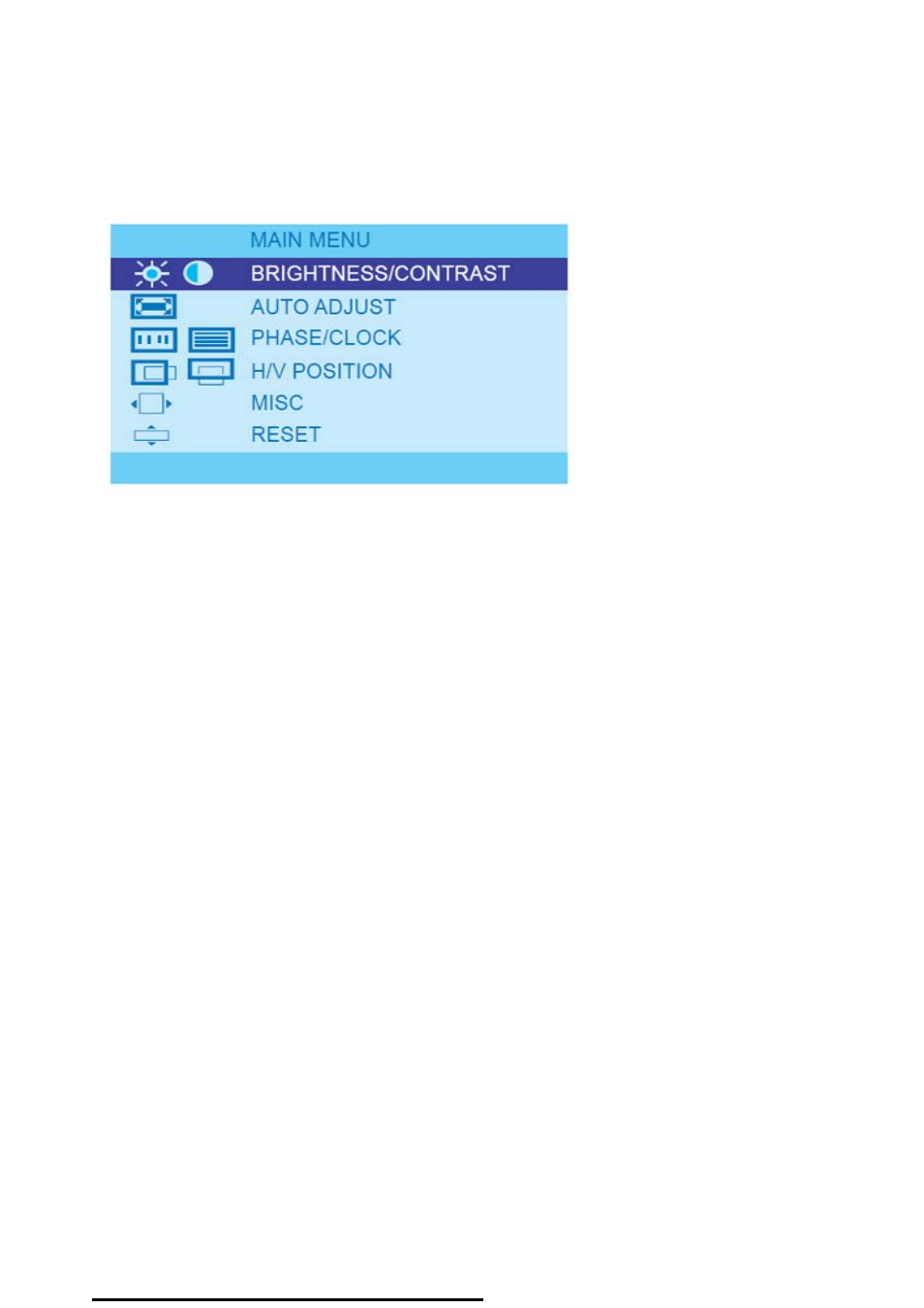

3.2 On screen Display menu
BRIGHTNESS / CONTRAST
Brightness: Adjust background black level of the screen image.
Contrast:
Adjust the difference between the image background (black level)
and the foreground (white level).
AUTO ADJUST
Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion. A
"Adjusting" message is displayed during the process.
Auto Tune: Optimize phase, clock, position and size. An "Adjusting" message is
displayed during the process.
PHASE/CLOCK
Phase / Clock: To enter into the phase & clock sub menu
H/V POSITION
H/V Position:
Align the screen image left or right and up or down.
MISC
Information: Display the current resolution, refresh rate and frequency
information on the screen.
OSD Timer
Set the time duration in seconds that the OSD is visible after the last button is
pressed. The factory default is 10 seconds.
