Sunex Tools 6622 User Manual
Page 5

6622
5
rev. 04/16/12

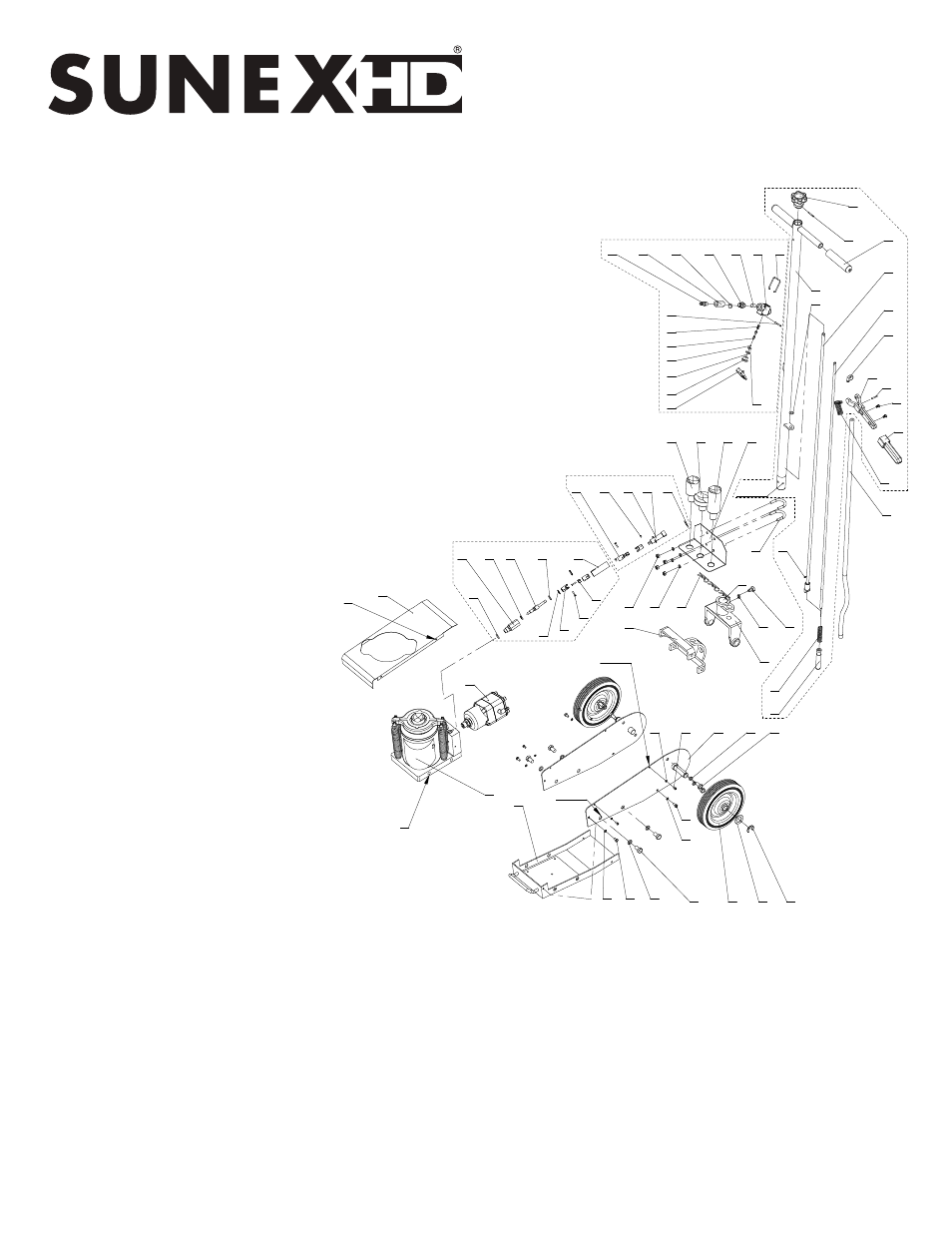

PARTS DRAWING
MODEL 6622
CAPACITY: 22 TON
AIR/HYDRAULIC TRUCK JACK
21
19
20
22
60
59
58
57
20
56
51
50
55
54
49
46
47
48
53
52
51
50
45
44
43
42
41
40 39
38
37
36
35
33
34
32 31
27
28
30
29
26
25 24
23
A
TO A
B
C
TO C
1
2
3
8
9
10
14
12
13
16
4
5
7
15
18
17
11
6
61
62
63
64 65 66
68
70
63
73
69
71
72
67
TO B
Index# Part#
Description
Qty.
1
RS662252 Knob
1
2
Spring Pin
1
3
Handle Cap
2
4
RS66221030 Air Valve Assembly
1
(see drawing)
5
Spring
1
6
RS662250A Handle Assembly
1
(see drawing)
7
Washer
1
8
Stopper
1
9
RS662255
Stopper (incl. #9, 17, 18)
1
10
Hose Band
2
11
Lock Lever
1
12
Spring Pin
1
13
Screw
2
14
Handle Cap
1
15
Spring Pin
1
16
RS66221015 Air Hose
1
17
Spring
1
18
Stopper
1
19
RS6622512 Bolt (incl. #19, 20)
1
20
Spring Washer
5
21
RS6622511 Handle Yoke
1
22
Frame
1
23
*
Hitch Pin
3
24
*
Spring Washer
4
25 *
Bolt
4
26 *
U-Bolt
2
27
RS6622125 Holder Adaptor
1
28
RS6622124 Adaptor D (48mm x 100mm) 1
29
RS6622122 Adpator B (48mm x 20mm)
1
30
RS6622123 Adaptor C (48mm x 60mm)
1
31
Washer
1
32
Spring Pin
1
33
RS6622516A Universal Joint (incl. #31-35) 1
34
Spring Pin
2
35
Valve
2
36
Connecting
1
37
Connecting
2
38
Pin
4
39
Connecting
2
40
Snap Ring
1
41
Ring
1
42
Washer
1
43
Ring
1
44
RS662240
Valve Assembly (incl. #36-45) 1
45
Guide
1
46
RS662270
Air Pump Assembly
1
47
RS662266
Upper Cover
1
48
Power Unit Assembly
1
49
Lower Cover
1
50
Spring Washer
4
51
Bolt
4
52
Spring Washer
4
53
Bolt
4
54
Spring Washer
4
55
Machine Screw
4
56
Handle Fork Bracket
2
57
Bolt
4
58
RS662213 Wheel
2
59
RS662212 Washer
2
60
RS662214
Snap Ring
2
61
Connector
1
62
Connector
1
63
O-Ring
2
64
Air Hose
1
65
Valve Body
1
Index# Part#
Description
Qty.
66
Lock Lever
1
67
Lever Pin
1
68
Spring
1
69
Throttle
1
70
O-Ring
1
71
Nut
1
72
Lever
1
73
Packing
1
74
RS6622LK Product Label Kit (not shown) 1
Only Index #'s identified by Part # are available separately. * Available in Holder Bolt Kit, RSHDRBK
RS66221030
Air Valve Assembly
RS6622516
Universal Joint
Assembly
RS662240
Release Valve Assembly
RS662250A
Handle Assembly
