9
Temperature-Controlled Beverage Chiller ™
(Some models)
Temperature-Controlled Beverage Chiller ™ keeps
beverages up to 5°F (3°C) colder than refrigerator section.
Air inlet allows air from freezer section to pass to
Beverage Chiller™. Air inlet is located on interior wall of
refrigerator door.
Beverage Chiller™ control is located on left front wall of
refrigerator section. Control adjusts amount of air
circulating in Beverage Chiller™. Turn control to
COLD for
normal refrigerator temperature and to COLDER for colder
temperature.

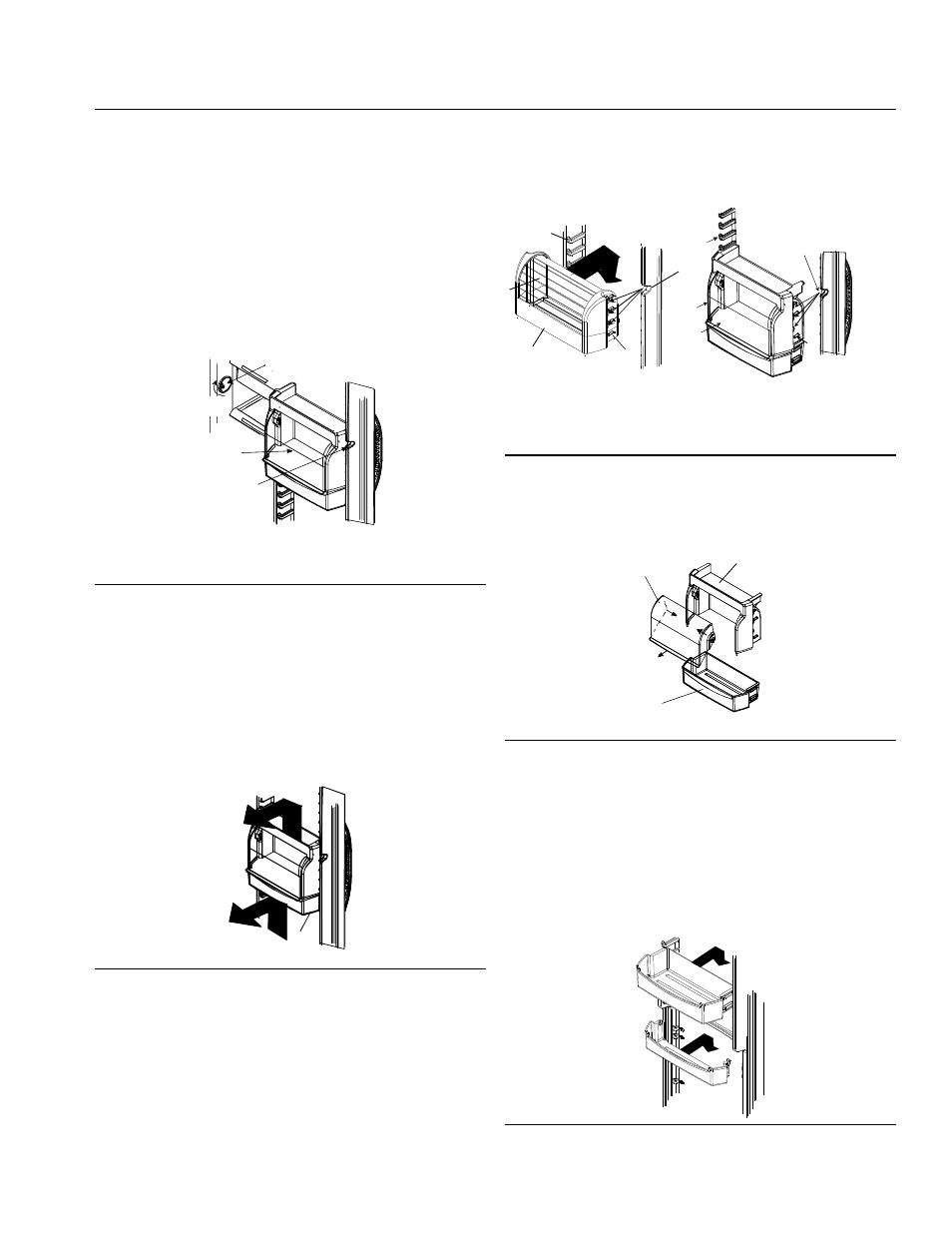

A
C
D
B
A. Beverage Chiller™ temperature C. Beverage Chiller™ door
control D. Air inlet
B. Turn control clockwise for
colder
Beverage Chiller™ flip top design
Beverage Chiller™ comes in a flip top and a roll top
design. It is adjustable to accommodate storage and
cleaning needs.
To remove Beverage Chiller™ perform the following
steps:
1. Grasp Beverage Chiller™ by sides lift up and pull out
to remove.
Note: If Beverage Chiller™ has a separate bottom
section, remove by pushing up and pulling out.
A
A. Beverage Chiller™ bottom section
Beverage Chiller™ flip top design
T o replace:
1. Slide Beverage Chiller™ bottom between desired shelf
rails in door liner and push down into place.
• If Beverage Chiller™ door track is cleaned, door
track must be lubricated with petroleum jelly for
proper operation of chiller door.
2. Slide Beverage Chiller™ between desired shelf rails in
door liner and push Beverage Chiller™ top down into
place over Beverage Chiller™ bottom.
IMPORTANT
For proper operation of Beverage Chiller™, one of the
cold air intake holes must line up with notch in right door
dike.
A
B
C D
E
C
B
D
E
A
A. Door liner shelf rail C. Flange
B. Notch in door dike must line up D. Beverage Chiller™
with one of Beverage Chiller™ E. Beverage Chiller™ Door
cold air intake holes.
Beverage Chiller™ roll top and flip top designs
• Remove Beverage Chiller™ cover (flip top model
only) by opening cover. Push cover inward at pivot
points and pull cover out. Replace cover by reversing
procedure.
B
A
C
A. Beverage Chiller™ top C. Beverage Chiller™
B. Beverage Chiller™ cover bottom
Beverage Chiller™ flip top design
Door Buckets and Shelves
Graphic below does not represent all available bucket and
shelf designs, however the following instructions do apply to
all units.
Door buckets adjust to meet individual storage needs.
• Remove door buckets by pushing bucket up and
pulling out.
• Replace door buckets by sliding bucket in between
shelf rails and pushing door bucket down into place.
