M1624FX MaiN CONTROLS aNd FUNCTiONS cont.
CONTROL ROOM JACkS or HEADPHONE JACk.
25. LEVEL-mETER SIGNAL BUTTONS - Use these buttons to select the signal that is sent to the
CONTROL ROOM outputs and/or HEADPHONE output. The ouput level will be shown in the LEVEL

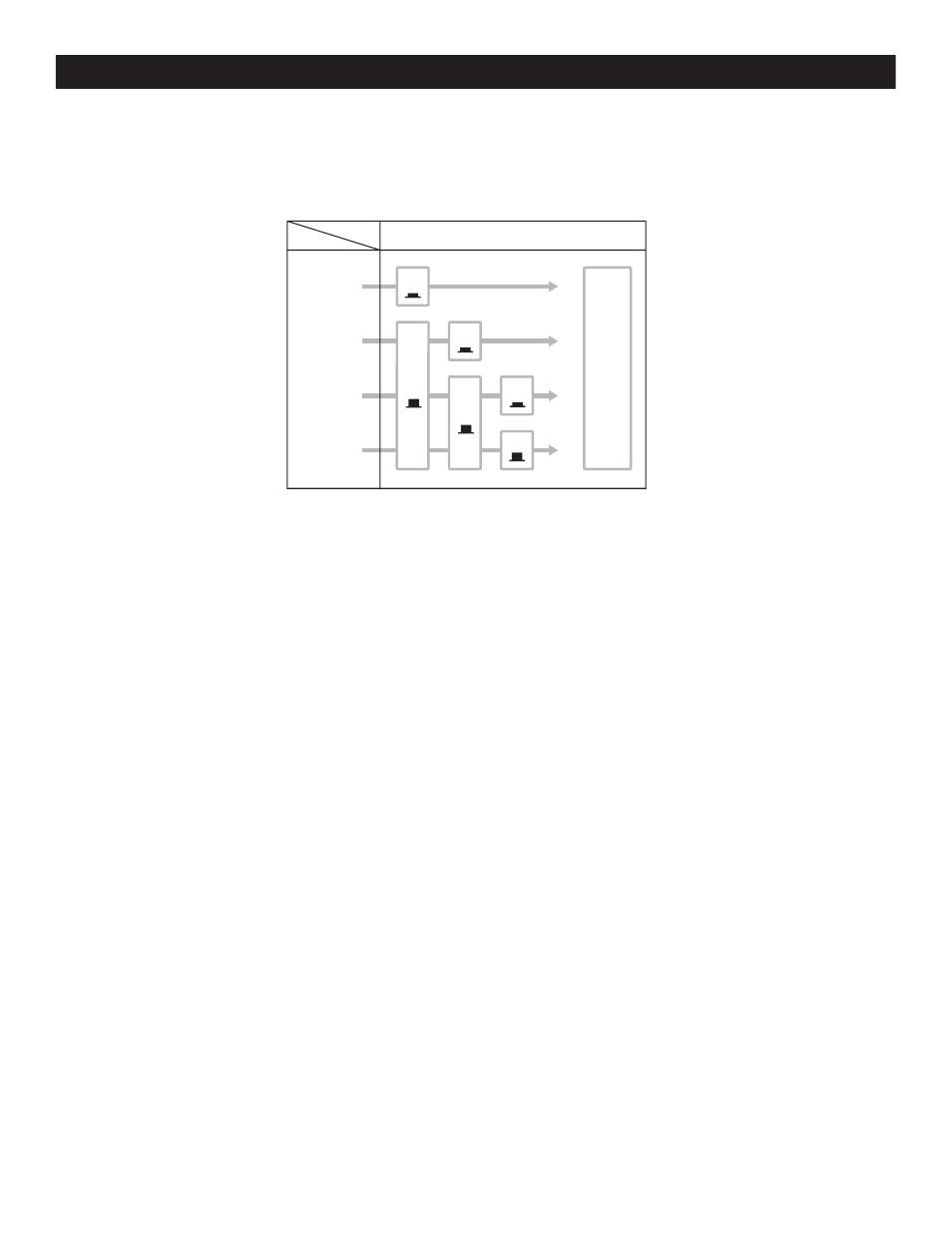

METER. Please see the illustration below to see how the button settings correspond to the signal
selection.
26. TO mAIN BUTTON - When this button is pressed “In” (On), the mixer will send the signal from the
ALT 3/4 to the MAIN L/R outputs.
27. mAIN L/R FADERS - This fader adjusts the final signal level sent to the MAIN L/R output.
Signal
Switch
PFL ALT3 / 4
PFL
ON
TAPE IN
OFF
OFF
OFF
ALT3/4
MAIN
ON
ON
C-R OUT
&
PHONES
TAPE IN
