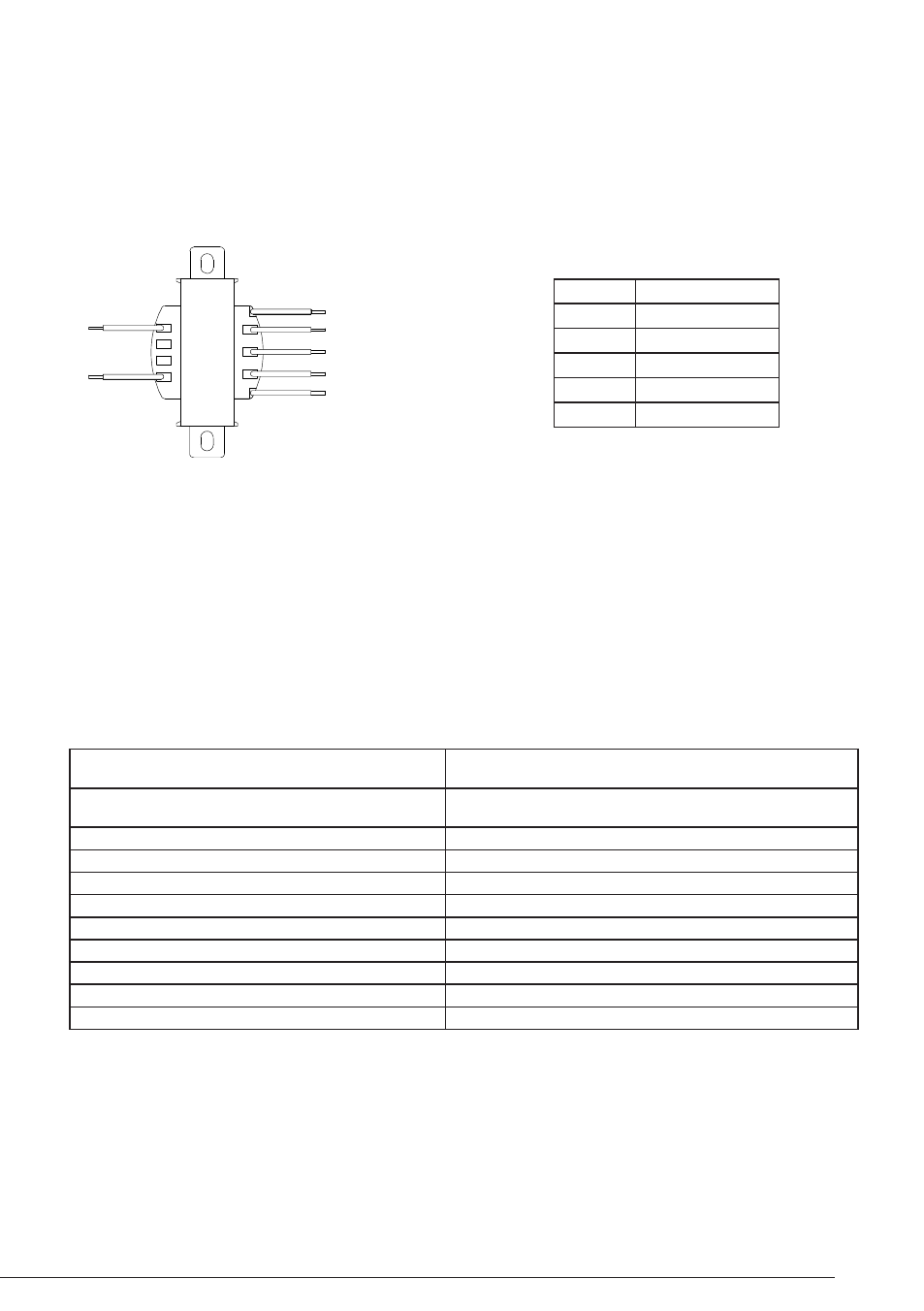

CONNECTING AND MOUNTING
1. Using wire nuts, connect the common (GND) from the amplifier to the Black lead on the transformer.
2. Using wire nuts, connect the Positive lead to the Colored lead appropriate for the desired
wattage as listed below.
SPECIFICATIONS
1. Insert the speaker into the ceiling and tighten each of the four screws for the speakers ‘dog’ legs
enough to clamp the speaker against the ceiling.
2. Insert the speaker grille by pressing gently around the edges. The grille is designed for a tight
fit but will still install easily. Do not force or bend the grille as this could affect the final fit and
appearance.
Common (GND) Black
Red .5 Watts
Yellow
Green
Blue
1 Watt
2 Watts
4 Watts
Color 70 Volt
Black Common (GND)
Red .5 Watts
Yellow 1 Watt
Green 2 Watts
Blue 4 Watts
WOOFER: 6½” TREATED PAPER CONE, NOMEX SPIDER & HIGH TEMP
VOICE COIL
TWEETER: 1/2” FABRIC DOMES, NEODYMIUM MOTOR,
FERROFLUID COOLED
POWER HANDLING: 50 WATTS RMS, 125 WATT PEAK
FREQUENCY RESPONSE(-6DB): 58HZ - 20KHZ
SENSITIVITY -2.83 V / 1 METER: 87 DB
CROSSOVER FREQUENCY: 4.3 KHZ
WEIGHT: 2.1 LBS. EACH
GRILL TYPE: POWDER COATED PERFORATED GRILL
CUTOUT DIMENSIONS: 7.7" DIAMETER
MOUNTING DEPTH: 2.25"
FINISHED DIMENSIONS: 8.1/2" DIAMETER, 3 3/8" D
PG.3
